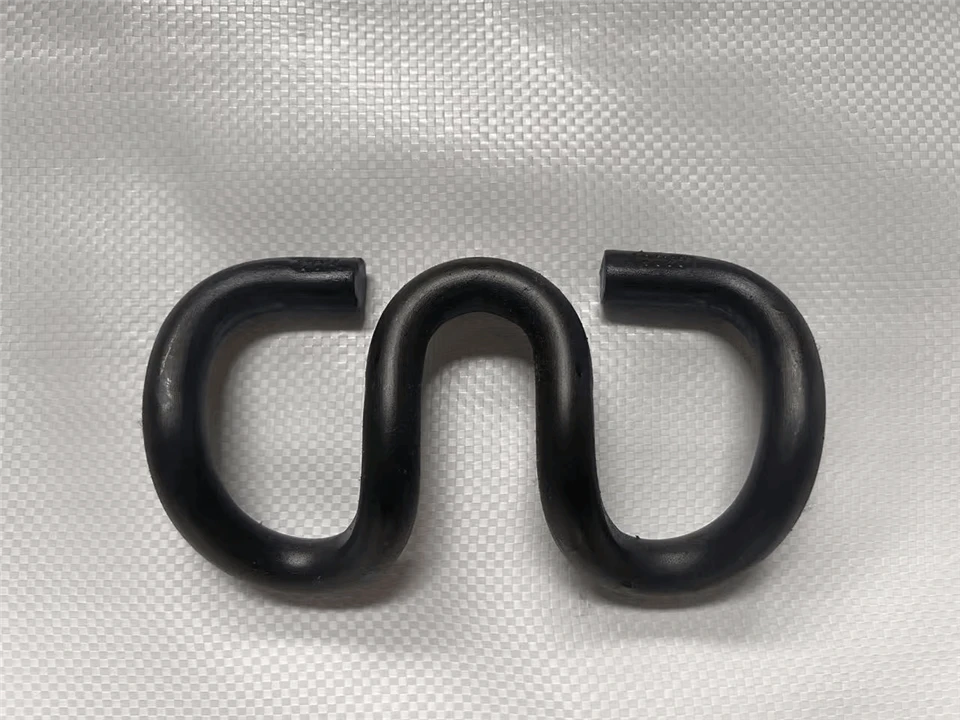

Fasteners For Rail SKL Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail SKL Clip Fastening System

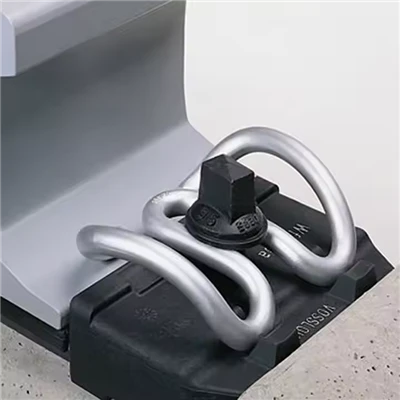

The Railway SKL Clip, also known as the "SKL" or "System Klöckner" clip, is a widely used type of elastic rail fastening system. Developed by Klöckner-Werke, it is characterized by its distinctive, robust hook-like shape made from round spring steel bar. Primarily applied in ballasted track systems, it clamps the rail foot by hooking under the shoulder of a cast iron or steel baseplate. Its design provides a high, consistent toe load to secure the rail against longitudinal and lateral forces while allowing for controlled vertical movement and vibration damping.

Technical Specifications:

Feature	Utility Perspective	Production Perspective	Maintenance Perspective
Primary Attribute	Mechanical interlock & stability	Consistency in spring properties & geometry	Maintainability of clamping force
Key Metric	Initial and maintained toe load	Hardness (e.g., HRC 44-48) and load/deflection curve	Residual toe load & visual integrity
Critical Interface	Clip-to-baseplate shoulder & rail foot	Steel microstructure after heat treatment	Clip-to-tensioning bolt interaction
Success Indicator	Long-term rail restraint without creep	Low rejection rate in fatigue cycle testing	Ability to re-tension and avoid unplanned failures
Tool/Technique	Toe load gauge, track geometry measurement	Metallography, spring testing rig	Hydraulic jack for load check, torque wrench for bolt

Functional & Engineering Perspective

Robust Mechanical Locking: Its hooked-end design creates a strong, positive mechanical interlock with the baseplate shoulder, preventing accidental detachment.

High Initial Toe Load: Delivers a substantial and stable clamping force from the moment of installation, ensuring immediate rail stability.

Adaptability to Track Settlements: Its elastic nature accommodates minor track bed settlements (ballast compaction) without significant loss of clamping performance.

Maintenance & Operational Perspective

Material & Forming: Fabricated from high-carbon spring steel rod, which is cold-bent or hot-formed into its characteristic "hook" shape with a straight leg and a curved clamping head.
Specialized Heat Treatment: Subjected to a tailored austempering or quenching and tempering process to achieve an optimal combination of high yield strength and necessary elastic flexibility.
Precision Bending Radius: The bending radius of the clip, especially at the critical hook and toe, is tightly controlled to ensure proper stress distribution and avoid fracture points.
