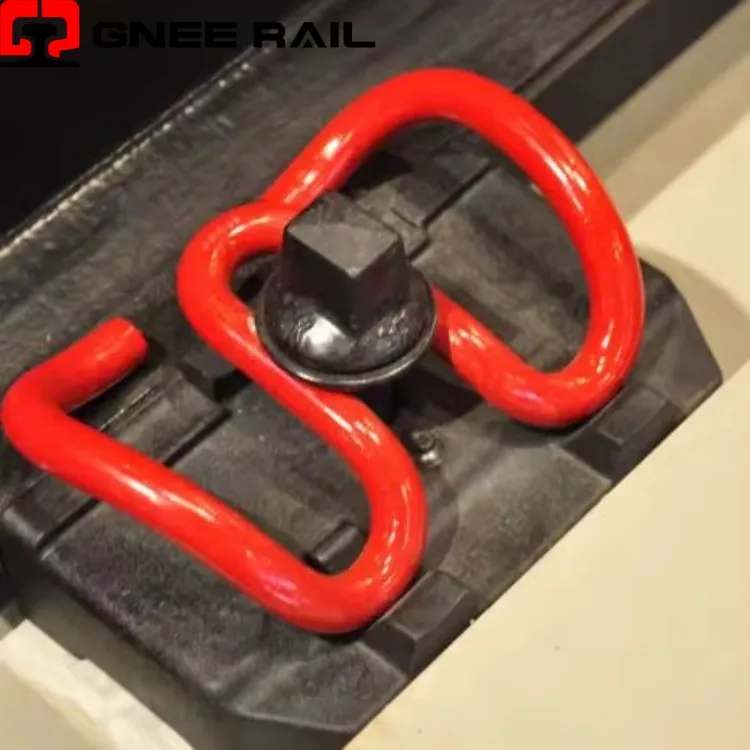

Rail SKL CLIP Fastening System
The Railway SKL Clip is a forged spring steel fastener that functions as a resilient, two-point restraint system for securing rails to concrete sleepers through a patented shoulder interface. Its distinctive omega-shaped crown and divergent arm configuration create a self-centering effect during installation, ensuring symmetrical load transfer to the rail foot. Engineered for high-speed and heavy-haul applications, this clip utilizes a controlled-moment design where the bending axis is strategically positioned to maximize elastic energy storage while minimizing permanent set over decades of service.
Technical Specifications:
| Attribute | Technical Detail | Performance Indicator |
|---|---|---|
| Forming Method | Hot forging with die-controlled dimensions | Grain flow follows stress contours |
| Heat Treatment | Austempering (bainitic transformation) | Impact toughness ≥ 50 J (Charpy) |
| Installation Force | Vertical setting tool requirement | 15 kN – 25 kN insertion force |
| Elastic Range | Maximum allowable deflection | Up to 22 mm without plastic deformation |
| Service Life Benchmark | Heavy-haul application data | > 30 years or 800 MGT |
Installation & Maintenance Perspective:
- Controlled Austempering: Subjected to isothermal heat treatment that produces a bainitic microstructure, delivering superior toughness and crack propagation resistance compared to conventional martensitic spring steels.
- Surface Integrity Management: Post-processing includes controlled decarburization removal and precision grinding of critical contact surfaces to eliminate stress raisers that could initiate fatigue failures.
- Grain Flow Optimization: Hot-forging process aligns material grain structure with the clip's stress trajectory, following the natural load path from crown to toe for enhanced durability.
Maintenance & Operational Perspective
- Shoulder Interlocking: Precision-machined pockets in the cast-in shoulder engage the clip's heel with a defined interference fit, creating a rigid reaction point that prevents lateral migration under high curvature.
- Pad Interaction Profile: The clip's toe geometry is engineered to apply pressure through a wide-foot insulator, distributing force uniformly across the rail pad surface to prevent localized pad extrusion.
- Gauge Retention Capability: Independent left and right clip adjustment allows fine-tuning of track gauge during installation without requiring sleeper repositioning.
