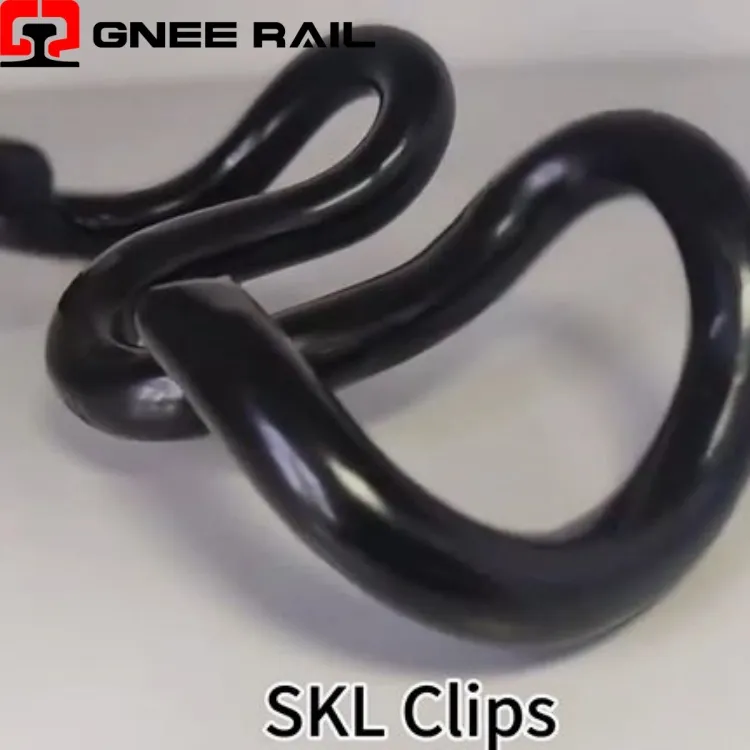

Rail SKL CLIP Fastening System
The Railway SKL Clip is a V-shaped, resilient spring fastener manufactured from high-performance micro-alloyed spring steel through precision hot-forging and controlled heat treatment processes, specifically engineered for direct fixation to concrete sleepers via standardized cast-in shoulders. Distinguished by its symmetrical double-arm configuration and distinctive crown geometry, this fastener operates on a pure bending principle where the two legs are elastically deflected outward during installation, converting applied vertical force into sustained horizontal clamping pressure against the rail foot.
Technical Specifications:
| Parameter | Specification | Performance Characteristic |
|---|---|---|
| Geometric Type | V-shaped, symmetrical double-arm | Pure bending spring principle |
| Material Classification | Micro-alloyed spring steel | 1,100 – 1,300 MPa yield strength |
| Installation Method | Vertical insertion with hydraulic or manual tool | 20 – 35 kN insertion force |
| Elastic Deflection | Arm displacement from free state | 20 – 28 mm per arm |
| Service Temperature | Full operational range | -45°C to +65°C |
Installation & Maintenance Perspective:
- Optimized Crown Radius: The parabolic crown profile distributes bending stress uniformly across the clip width, eliminating localized stress concentrations that would accelerate fatigue in simpler V-spring configurations.
- Variable Section Thickness: The cross-section tapers progressively from the crown to the toe, matching material distribution to the bending moment envelope and reducing unnecessary mass where stress levels are lower.
- Neutral Axis Positioning: The geometric centroid is strategically located to ensure that tensile and compressive stresses remain balanced throughout the elastic deflection range, maximizing fatigue life.
Maintenance & Operational Perspective
- Progressive Engagement: The clip arms are designed with a tapered lead-in that gradually engages the shoulder pockets during installation, reducing peak insertion forces and enabling smooth, controlled seating.
- Audible Seating Confirmation: A distinct snap or click occurs when the clip arms fully engage with the shoulder retention features, providing operators with immediate acoustic feedback of proper installation.
- Over-Insertion Prevention: Mechanical stops incorporated into the shoulder interface prevent excessive clip deflection beyond the elastic limit, protecting against plastic deformation during installation.
