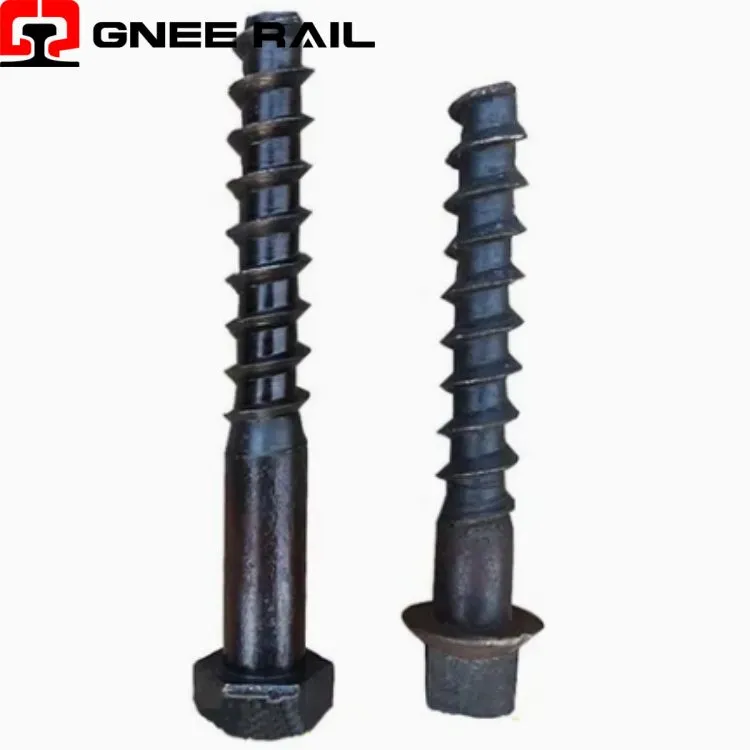

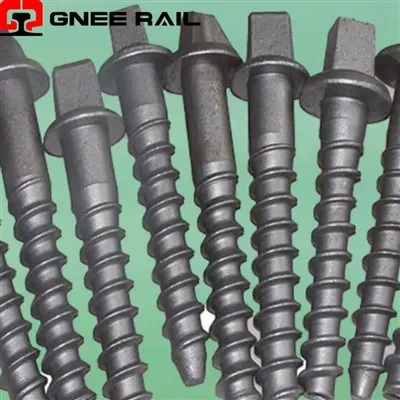

↵Rail Screw Spike Fastening System

A railway screw spike is a high-tensile threaded steel anchor that transmits dynamic rail seat loads into concrete or timber sleepers through a thermoplastic dowel interface - unique among all rail fasteners as the only component whose clamping force is stored in elastic bolt stretch but consumed by polymer creep, the only fastener whose installation quality is determined by a torque value that becomes meaningless within 90 days

Technical Specifications:

Parameter	Physical Mechanism	Value / Threshold	Detection	Consequence
Friction coefficient μ	Coating + moisture	0.08–0.32 (4:1 range)	Not measured in field	Clamp force 11–24 kN @ same torque
Prevailing torque rise	Dowel creep + debris	5→25 Nm @ 10 years	Torque audit (value only)	Tension overestimated 10–15%
Torque-angle blind spot	Cross-threading invisible	90° vs 270° rotation	Not monitored	100% acceptance of 30% strength
PA66 creep loss	Polymer relaxation	28% @ 10 years	Lift-off test only	30% track under-clamped
Galvanic corrosion	Zn/steel + stainless dowel	−0.5 to −0.6 V	Removal only	Thread perforation 3–5 years
Carbonation wicking	pH drop at depth	0.15–0.25 mm/year	X-ray (never done)	Head twists off at renewal
Three M22 threads	Metric coarse/fine/buttress	2.5/2.0/variable pitch	Thread gauge	40% procurement mismatch
7/8"-9 UNC vs M22	Diameter + pitch	22.225 mm/2.822 vs 22 mm/2.5	Thread gauge	Strip at 35% torque

Performance Range:

Prevailing Torque Deception - New nylon dowel: prevailing torque 5–8 Nm (thread friction only). After 5 years: dowel creep + contamination = prevailing torque 18–25 Nm. Torque wrench set to 200 Nm: only 175–182 Nm reaches thread helix. Clamp force = 85–90% of nominal. Torque value alone overstates tension by 10–15% on aged sleepers. No compensation in maintenance manuals.

Torque-Angle Signature Blindness - Automotive practice: torque-angle monitoring detects thread stripping (angle runaway) and cross-threading (angle spike). Railway practice: torque-only control. Result: cross-threaded M22 spike into 7/8"-9 dowel → 3 threads engage, then jams. Torque reaches 200 Nm at 90° turn (normal = 270°). Operator sees "200 Nm" → accepts. Pull-out strength: 22 kN vs 78 kN spec. 100% undetected by current practice.

Maintenance & Operational Perspective

PA66 Creep Master Curve - Polymer creep under 20–30 MPa flank pressure follows Findley power law: ε = ε₀ + a·tᵇ. b = 0.18–0.22. Tension loss: 12% year 1, 20% year 3, 28% year 10. Torque audit cannot detect - friction rise masks tension loss. Field solution: lift-off test (measure force at head separation). Industry adoption: <5% of networks. Consequence: 30% of screw-spiked track operates below design clamp force.
Galvanic Dowel Incompatibility - Stainless steel dowels (304, 316) specified for coastal electrified track. Zinc-coated screw spike (anode) coupled with stainless dowel (cathode) in salt electrolyte: potential difference −0.5 to −0.6 V. Corrosion rate: 0.4–0.7 mm/year vs 0.02 mm/year in PA66. Thread root perforation in 3–5 years. Detection: impossible until removal. Mitigation: Dacromet-coated spikes only with stainless dowels - but 70% of procurement ignores interface specification.
