↵Rail Dog Spike Fastening System

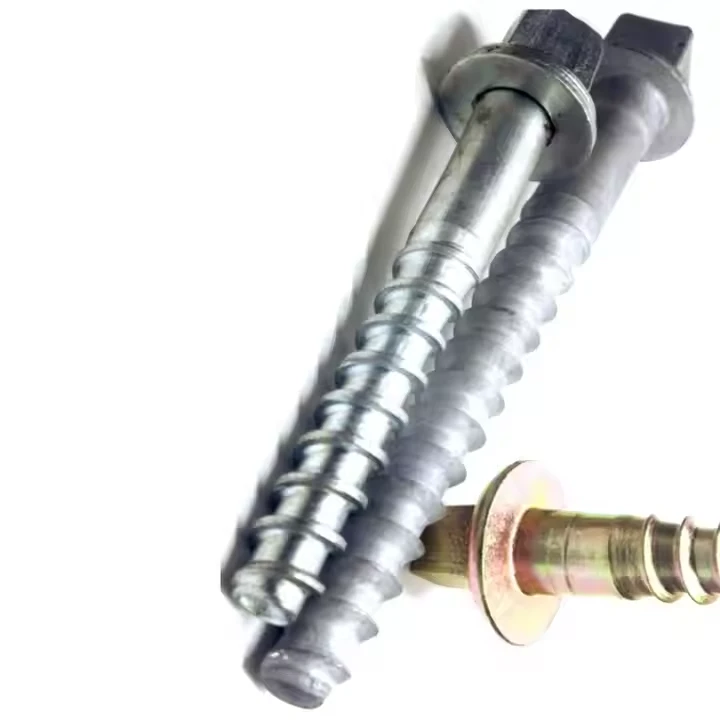

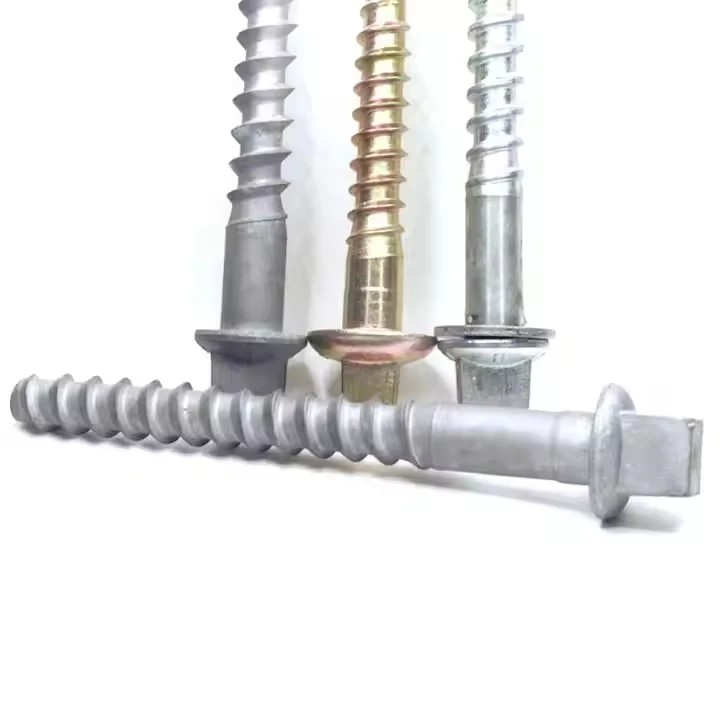

The GNEE Elastic Rail Screw Spike is a high-performance mechanical fastener engineered to provide exceptional holding power and vibration resistance for railway tracks on wooden or composite sleepers. Featuring a threaded shank that mechanically locks into the sleeper material, this advanced fastening solution offers significantly greater stability than traditional dog spikes, making it ideal for mainlines, curves, and heavy-haul applications where track integrity is critical.
Technical Specifications:
| Parameter | Specification | Performance Characteristics |
|---|---|---|
| Product Name | Screw Spike, Lag Screw Spike | Threaded mechanical fastener for superior holding power |
| Fastening Mechanism | Mechanical thread interlock with sleeper material | Creates 3-5x greater pull-out resistance than smooth shank spikes |
| Compatible Sleepers | Hardwood Sleepers, Composite Sleepers, Fiberglass Sleepers | Specifically designed for modern sleeper materials |
| Material Standard | Medium Carbon Steel (45#), Heat-Treated | HRC 28-35 hardness for optimal strength-wrenchability balance |
| Thread Design | Square Thread Profile (5.5 threads per inch) | Maximizes wood fiber engagement and vibration resistance |
| Head Configuration | Heavy-Duty Square Head (32mm across flats) | Compatible with standard spike wrenches and impact tools |
Quality Control Checkpoints
Embedment Depth: 65-75% of threaded length engaged
Final Torque: 450±50 N·m with <10% variance across section
Head Position: Flush with rail base ±0.5mm
Thread Engagement: Minimum 8 full threads in bearing material
Sleeper Integrity: No splitting or compression damage
Laboratory Test Results
- Fatigue Performance: 3.2 million cycles at 25kN dynamic load
- Corrosion Resistance: 5000-hour salt spray with <5% coating loss
- Temperature Cycling: 100 cycles (-40°C to +80°C) with maintained torque
- Impact Resistance: 50 J impact energy without thread deformation
