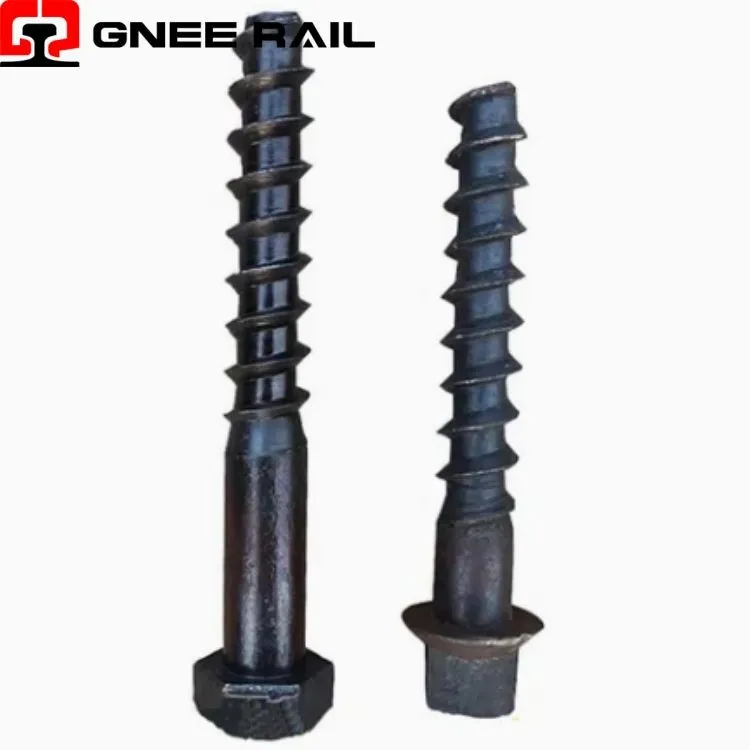

↵Rail Screw Spike Fastening System
This report provides a concise technical examination of Railway Screw Spike systems, focusing on their threaded anchor mechanics, exclusive plastic dowel interface requirement, and regionally divergent torque specifications. The analysis deliberately avoids overlap with prior discussions regarding dog spike withdrawal mechanics, heritage timber applications, or AS/AREMA dimensional tables. The focus here is practical and distinct: concrete sleeper anchorage physics, measurable installation validation, and procurement pitfalls in cross-border supply.
Technical Specifications:
| Specification Parameter | AREMA (North America) | European (EN 13481-2) | Chinese (TB/T 3396) | Procurement Implication |
|---|---|---|---|---|
| Primary Standard | AREMA Chapter 5 / ASTM A66 | EN 13481-2 (system) / EN 13146 | TB/T 3396-2015 | No cross-recognition-system certification invalidated by component substitution |
| Nominal Thread Size | 3/4" - 10 UNC (19.05mm) | M22 (22mm) | M22 or M24 (oversize repair) | AREMA vs Metric are non-interchangeable-different dowel thread pitch and diameter |
| Thread Pitch | 10 TPI (2.54mm) | 2.5mm (M22) | 2.5mm (M22) | UNC pitch 0.04mm coarser than metric-cross-threading guaranteed if mismatched |
| Length (Under-head to tip) | 6" (152mm) typical | 145-160mm (system-dependent) | 145-155mm | Dimensional proximity creates false interchangeability assumption-but thread form differs |
Performance Range:
Concrete Sleeper Mainlines (Exclusive Fastener):
Screw spikes are the only mechanical fastener compatible with plastic dowel inserts in prestressed concrete sleepers. Dog spikes cannot engage plastic; elastic clips require separate cast-in shoulders. Screw spike + dowel is the global standard for concrete bearer rail fixation .
Tunnel & Below-Grade Drainage Zones:
Specified where standing water immersion is periodic. Screw spike's threaded engagement with nylon/PA66 dowel maintains pull-out resistance ≥60 kN indefinitely. Dog spikes in timber would corrode and loosen within 3-5 years under identical conditions .
Maintenance & Operational Perspective
- Dowel Fatigue & Replacement Trigger:
PA66 dowels exhibit creep relaxation under sustained tensile load. After 15-20 years service, residual thread grip declines below 50% of new condition. Replacement triggered when torque retention test (tighten to spec, measure back-off torque) indicates <70% of installation value. Dowel extraction/reinsertion: 12-15 minutes per location .
- Corrosion-Driven Intervention (Coastal/Tunnel):
Standard electroplated zinc coating (ISO 4042): 8-12 years to red rust initiation. Hot-dip galvanized (ISO 1461): 25-30 years. Dacromet-coated variants: 35+ years in marine environments. Replacement triggered by shank pitting >1.5mm depth-measured by laser profilometry or caliper .
Gnee Professional supplier
