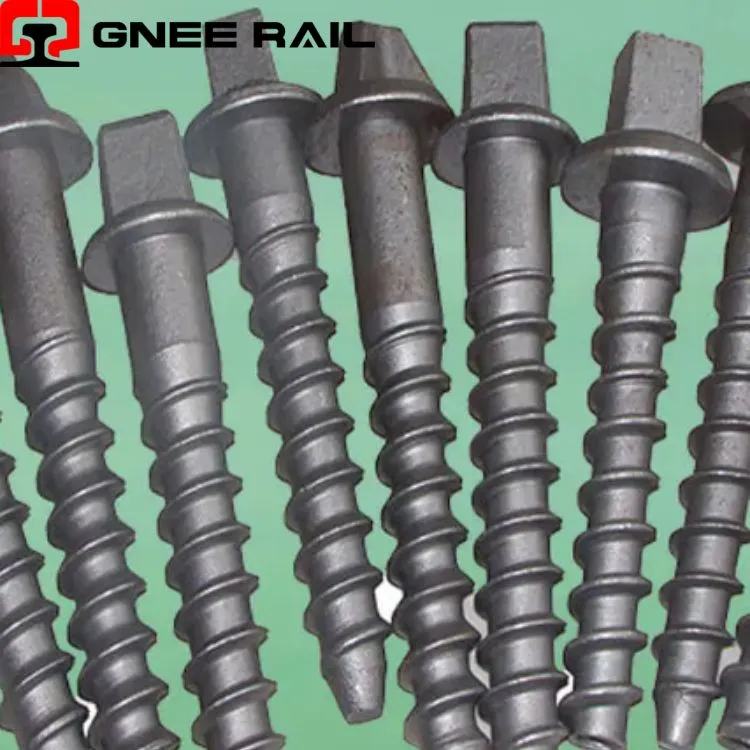

Rail Screw Spike Fastening System
The Railway Screw Spike is a threaded drive fastener manufactured from heat-treated medium-carbon or alloy steel, characterized by its continuous helical thread extending from a tapered point to a square or hexagonal drive head, designed for securing rail base plates or direct rail attachment to timber, composite, and engineered wood sleepers through rotational insertion.Unlike driven spikes that rely on wood fiber compression alone, this fastener creates a positive mechanical interlock through precisely formed threads that engage the sleeper material along multiple contact surfaces, providing superior withdrawal resistance and the ability to verify clamping force through torque measurement.
Technical Specifications:
| Parameter | Specification | Performance Characteristic |
|---|---|---|
| Thread Formation | Rolled or cut | Rolled threads provide superior fatigue life |
| Material Grade | Medium-carbon or alloy steel | 1038, 1045, 4140, or equivalent |
| Drive Head | Square or hexagonal | 5/8" to 1" across flats typical |
| Nominal Diameter | Major thread diameter | 5/8" to 1" (16mm to 25mm) |
| Corrosion Protection | Hot-dip galvanized or mechanical galvanized | 500–1,000 hours salt spray resistance |
Installation & Maintenance Perspective:
- Thread Root Radius: Generous radii at thread roots eliminate sharp corners that would create stress concentrations, distributing tensile loads across the thread profile to maximize fatigue life under cyclic rail loading.
- Tapered Lead Thread: The initial 2–4 threads feature progressive diameter reduction, enabling accurate engagement with pre-drilled pilot holes and providing self-centering action that prevents cross-threading during installation.
- Crest Configuration: Controlled thread crest geometry prevents localized bearing stress concentrations in timber applications while providing sufficient surface area for load distribution in composite and engineered wood sleepers.
Maintenance & Operational Perspective
- Hexagonal Head Variants: Six-sided drive heads are available for applications requiring higher torque capacity or compatibility with standard socket tools used in mechanized installation equipment.
- Drive Pocket Depth: The head height and drive pocket depth are proportioned to provide full tool engagement while maintaining sufficient material section to resist drive failure under maximum installation torque.
- Head-to-Shank Transition: The radiused transition between drive head and threaded shank eliminates stress concentration and provides clearance for installation tools during final tightening.
