Rail Dog Spike Fastening System

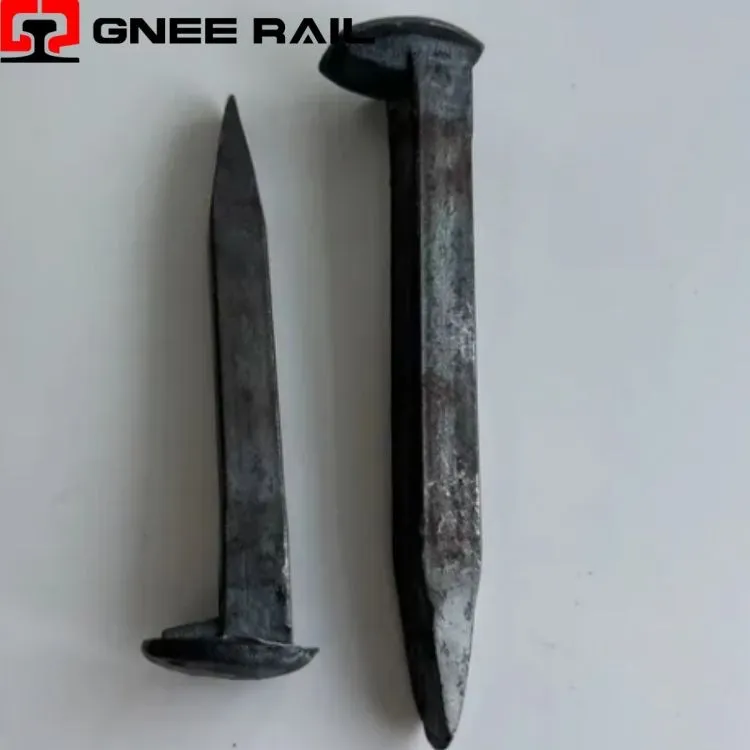

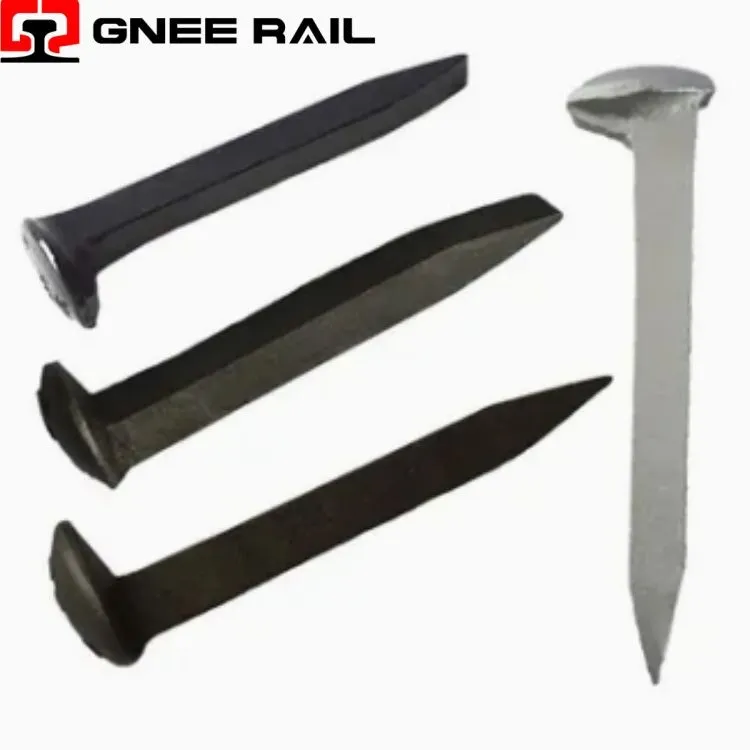

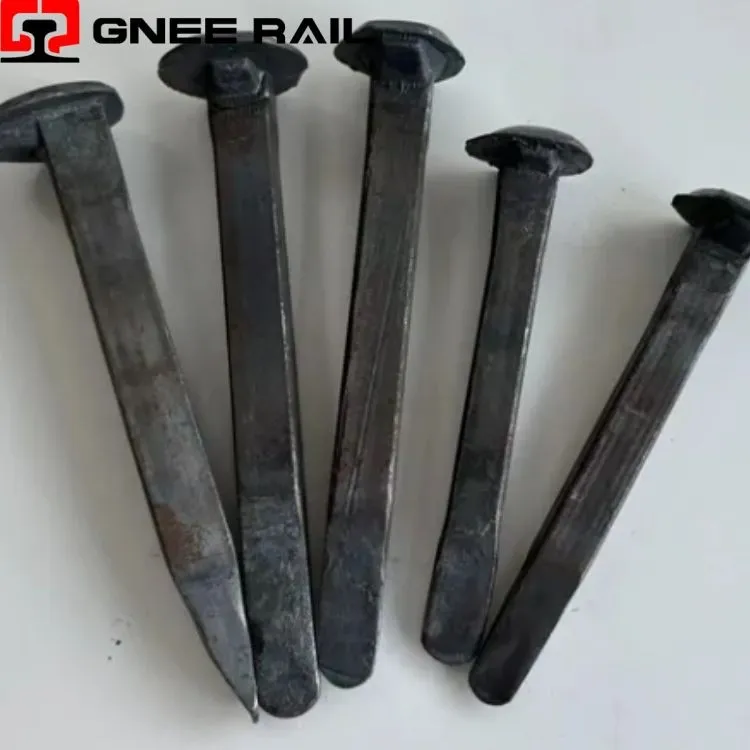

The Railway Dog Spike is a one-piece forged steel fastener with an L-shaped head and square tapered shank, designed to secure rails and tie plates to wooden sleepers through displacement retention rather than thread engagement. Manufactured from medium-carbon steels including 45# and 55# with carbon content of 0.42–0.60%, these spikes achieve tensile strength of 550–700 MPa through hot forging and controlled cooling processes.
Technical Specifications:
| Failure Mode | Primary Cause | Characteristic Features | Prevention Method | Detection Technique |
|---|---|---|---|---|
| Fatigue Fracture | Cyclic loading at head-shank fillet | Beach marks, striations on fracture surface | Shot peening fillet radius; 3–5mm radius design | Magnetic particle inspection; ultrasonic testing |
| Overload Failure | Extreme impact (derailment) | Ductile dimpling, microvoid coalescence | Adequate spike length selection | Visual inspection; load history analysis |
| Hydrogen Embrittlement | Improper acid cleaning/plating | Intergranular "rock candy" fracture | Baking at 200°C for 4–24 hours after plating | Delayed fracture testing; hydrogen analysis |
| Corrosion Fatigue | Pitting in coastal environments | Multiple crack initiation sites from pits | Hot-dip galvanizing (50–80µm); zinc-rich coatings | Eddy current inspection; corrosion monitoring |
| Wood Splitting | Oversized spike or undersized pilot hole | Longitudinal cracks in sleeper | Pilot hole diameter 85–90% of shank diagonal | Visual inspection during installation |
Installation & Maintenance Perspective:
- Hot forging at 1,050–1,150°C in progressive dies under 300–500 ton presses ensures precise head geometry and square shank dimensions
- Controlled slow cooling in insulated containers relieves internal stresses and achieves uniform 85–95 HRB hardness throughout cross-section
- Automated optical inspection systems measure shank width (±0.4mm), head height, and point angle (30–35°) at 120+ spikes per minute
Maintenance & Operational Perspective
- Wedge point displaces wood fibers rather than cutting them, creating compressed fiber zones that exert continuous radial pressure on shank
- Square shank (14–16mm) generates 30–40% higher frictional resistance than round shanks due to corner pressure concentration at four contact zones
- Pilot hole optimization: 80–85% of maximum pull-out resistance achieved when hole diameter equals 85–90% of shank diagonal dimension
