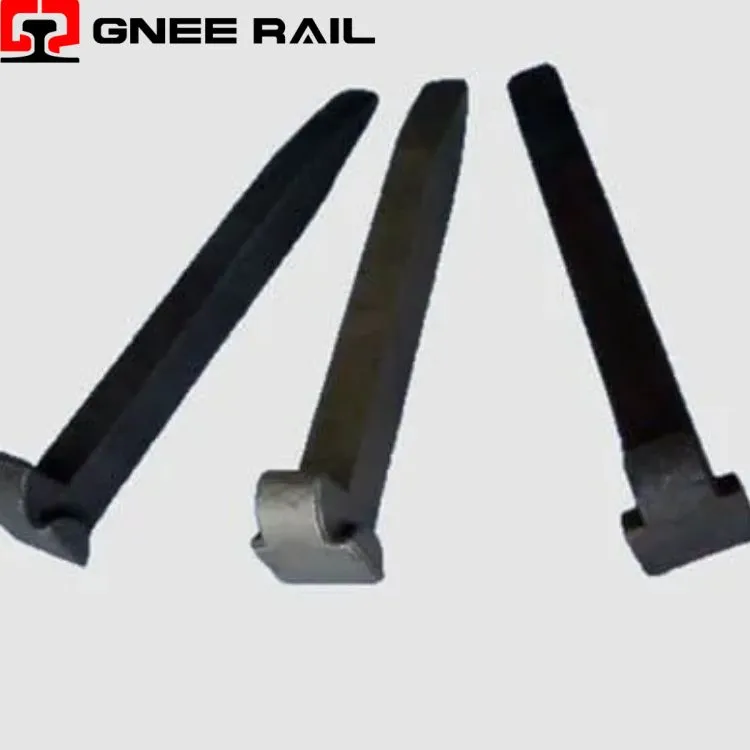

Rail Dog Spike Fastening System
The Railway Dog Spike is a wrought-iron or mild steel drive-fastener characterized by its right-angle head configuration and diamond-point shank, purpose-designed for securing flat-bottom rail to timber sleepers in traditional track construction. Manufactured through hot-forging processes that align grain structure with the fastener's stress pathways, this spike operates on the principle of elastic wood compression rather than mechanical interlock. When driven, the chisel tip displaces wood fibers radially outward, creating a dense, pre-stressed zone that exerts continuous lateral pressure against the spike shank.
Technical Specifications:
| Attribute | Technical Detail | Performance Indicator |
|---|---|---|
| Manufacturing Method | Hot forging from billet or bar stock | Grain flow follows geometric contour |
| Material Specification | Low-carbon wrought steel | 60 – 80 ksi tensile strength |
| Typical Dimensions | Length × shank width | 5.5" – 6.5" × 5/8" – 11/16" |
| Driving Resistance | Installation energy requirement | 3 – 5 hammer blows per spike |
| Service Life Expectancy | Well-maintained timber tie | 20 – 40 years (tie-dependent) |
Installation & Maintenance Perspective:
- Hot-Forged Grain Flow: The forging process aligns metal grain boundaries to follow the spike's L-shaped contour, creating uninterrupted load paths from the striking head through the bend radius to the shank tip.
- Controlled Carbon Content: Manufactured from steel with 0.15–0.25% carbon content, balancing ductility for impact driving with sufficient hardness to resist bending under lateral rail loads.
- Work-Hardened Surface: The driving process induces localized work hardening at the head and along the shank, progressively increasing surface hardness without compromising core toughness.
Maintenance & Operational Perspective
- Fiber Splitting Mechanics: The diamond-point tip follows natural wood grain lines during driving, splitting fibers rather than cutting them, maximizing the number of intact fibers contributing to retention.
- Radial Compression Zone: Shank penetration creates a compressed wood annulus measuring approximately 1.5 times the spike diameter, forming a natural locking mechanism that resists withdrawal.
- Moisture-Responsive Retention: Wood fiber swelling in wet conditions increases clamping force on the spike shank, providing adaptive retention that responds to environmental conditions.
