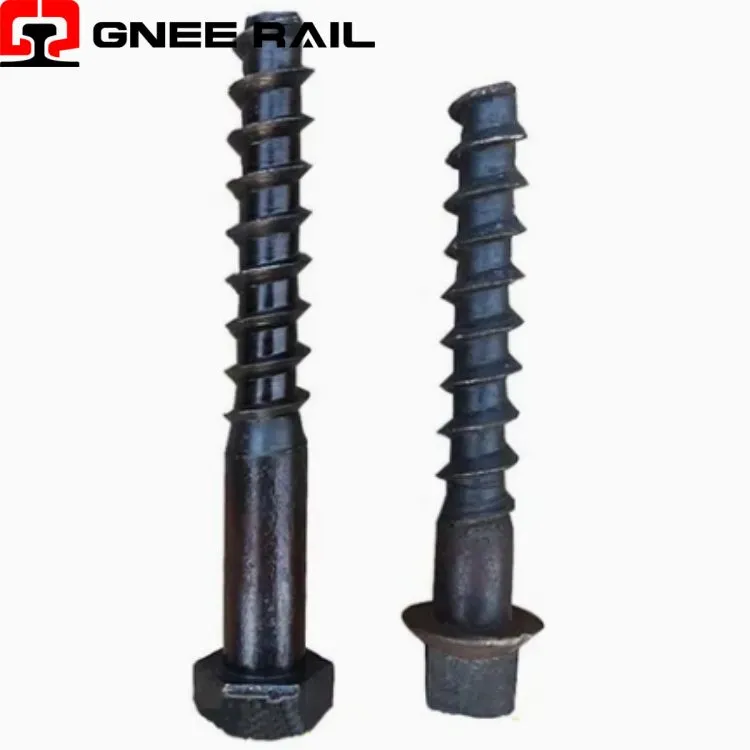

Rail Screw Spike Fastening System
The Railway Screw Spike is a threaded fastening device designed for securing rail base plates or direct rail attachment to timber, composite, or concrete sleepers through rotational installation rather than impact driving. Characterized by its continuous helical thread, square or hex head configuration, and forged or rolled construction, this fastener converts applied torque into axial clamping force, providing consistent and measurable preload that remains stable under dynamic track loading.
Technical Specifications:
| Parameter | Specification | Performance Characteristic |
|---|---|---|
| Manufacturing Process | Rolled or cut threads | Rolled threads provide superior fatigue resistance |
| Material Grade | Medium-carbon or alloy steel | 1038 – 4140 grade range typical |
| Clamping Force Range | Per fastener | 8 – 15 kN (application dependent) |
| Installation Torque | Applied rotational force | 150 – 300 Nm typical range |
| Withdrawal Resistance | Ultimate pull-out capacity | 15 – 25 kN in sound timber |
Installation & Maintenance Perspective:
- Helix Angle Optimization: The thread lead angle is calculated to provide self-locking characteristics where frictional resistance exceeds the back-drive tendency, preventing spontaneous loosening under vibration without requiring supplemental locking mechanisms.
- Asymmetric Thread Profile: The load-bearing flank features a steeper angle than the trailing flank, optimizing force transmission during tension loading while facilitating clean chip evacuation during installation.
- Root Radius Design: Generous radii at thread roots eliminate stress concentration points that could initiate fatigue cracks under the cyclic tension loads experienced in track applications.
Maintenance & Operational Perspective
- Torque-to-Tension Correlation: Established relationships between applied torque and developed clamp force enable precise tension control using calibrated torque wrenches or automated installation equipment.
- Pre-Drilling Requirements: Pilot hole diameter specifications are defined to provide optimal material displacement-undersized holes risk splitting, while oversized holes reduce withdrawal capacity.
- Installation Speed Optimization: Coarse thread pitches enable rapid insertion while maintaining sufficient thread engagement depth for required holding capacity, balancing installation productivity with performance.
