Rail Screw Spike Fastening System

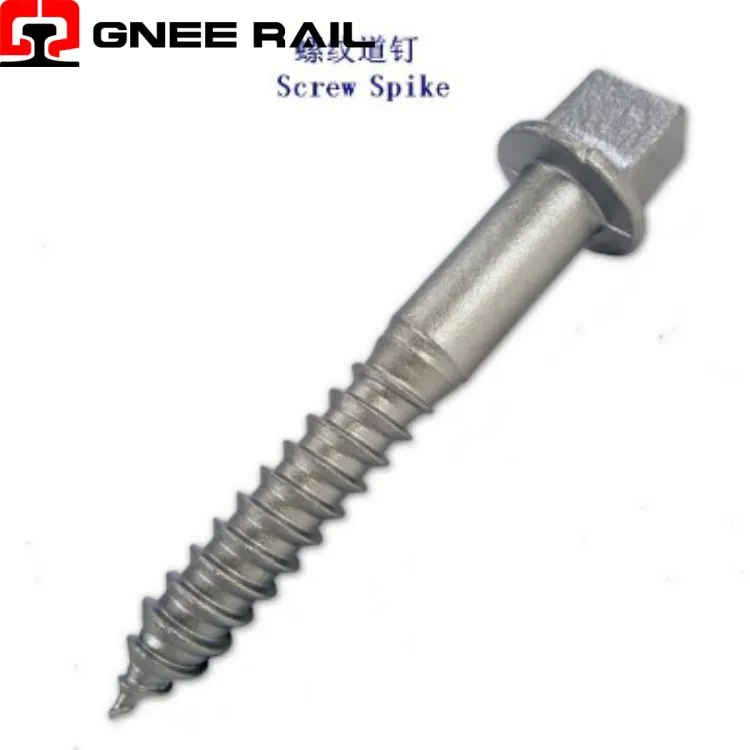

The Railway Screw Spike is a helically threaded fastener manufactured from high-strength carbon or alloy steel, designed for securing rail anchor plates or directly fastening rail to timber, composite, or engineered wood sleepers through rotational insertion. Distinguished by its square or hexagonal drive head, continuous spiral thread extending to a tapered or blunt point, and precision-formed thread profile, this fastener converts torsional input into measurable axial preload that maintains consistent clamping force throughout its service life.
Technical Specifications:
| Attribute | Technical Detail | Performance Indicator |
|---|---|---|
| Thread Formation Method | Rolled (cold-formed) or cut | Rolled threads: superior fatigue life |
| Head Configuration | Square, hex, or round drive | 5/8" – 1" across flats typical |
| Nominal Diameter | Shank diameter | 5/8" – 1" (16mm – 25mm) |
| Ultimate Tensile Strength | Material capability | 120 – 150 ksi (830 – 1035 MPa) |
| Corrosion Protection | Coating or plating | Hot-dip galvanized, mechanical galvanized, or Xylan |
Installation & Maintenance Perspective:
- Multi-Flank Load Sharing: The continuous thread engagement distributes applied tension across 8–12 individual thread flanks, reducing stress concentration at any single point and enabling higher total clamp force than driven fasteners of equivalent diameter.
- Shear Plane Optimization: The fastener shank is positioned at the neutral axis of the sleeper section under vertical rail loads, minimizing combined tension-shear interaction that would accelerate fatigue in other fastening configurations.
- Bending Moment Reduction: The threaded full-length engagement prevents the cantilever bending that affects driven spikes under lateral rail movement, confining fastener loading primarily to axial tension.
Maintenance & Operational Perspective
- Torque-Audit Protocol: Random sampling during installation uses calibrated torque wrenches to verify that applied torque falls within specified limits, providing statistical assurance of proper tension across the installed population.
- Turn-of-Nut Correlation: For critical applications, angular rotation from first contact to final position provides independent verification that proper preload has been achieved, complementing torque measurement.
- Ultrasonic Length Measurement: Advanced quality programs utilize ultrasonic extensometers to directly measure fastener elongation during installation, establishing actual clamp force independent of torque-friction variables.
