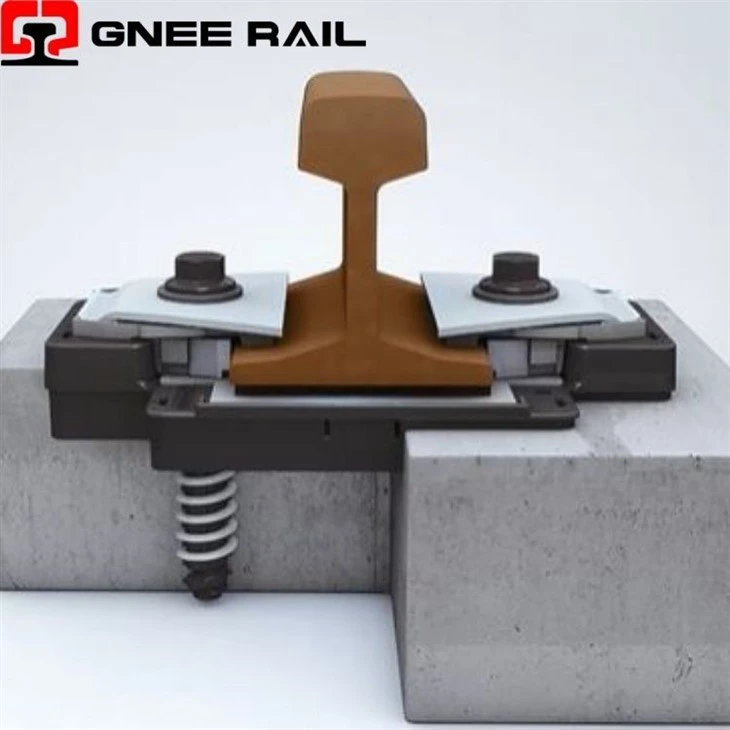

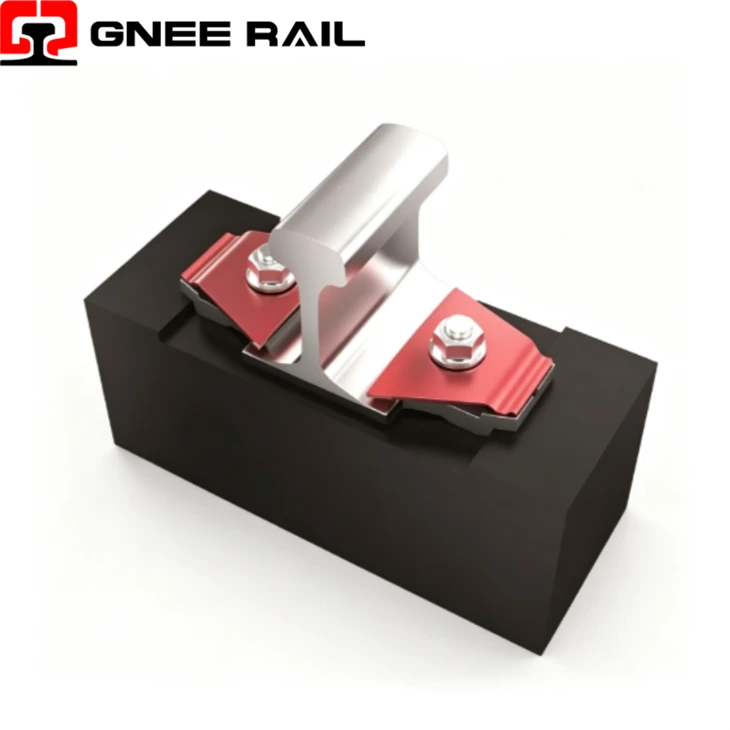

The C1 Spring Blade Rail Fastening System is designed to secure steel rails on concrete sleepers for ballasted railway tracks, providing elastic rail restraint, maintaining track gauge, and reducing rail movement under operational loads. The system is suitable for conventional passenger and freight railway lines, including curved sections with a radius down to 150 meters. GNEE RAIL supplies C1 fastening systems and related components according to project requirements.
Main Component of C1 Spring Blade Rail Fastening System:
| Main Components | Quantity |
| Spring blade | 2 |
| Cam bolt with hex nut and washer | 2 |
| Guide plate | 2 |
| Rail pad | 1 |
Technical Parameters of C1 Spring blade Rail Fastening:
| Parameter | Value |
|---|---|
| Minimum curb radius | ≥ 150m |
| Maximum axle load | ≤ 26 ton |
| Running speed | ≤80 km/h |
| Minimum clamping force | ≥10 KN, complies with EN 13146-7:2012 |
| Creep resistance | ≥9KN, complies with EN 13146-1:2012 |
| Electrical resistance | ≥5KΩ, complies with EN 13146-5:2012 |
Request a Quote for C1 Spring blade Rail Fastening
GNEE RAIL supplies C1 Spring Blade Rail Fastening Systems and related components for ballasted railway tracks with concrete sleepers. Components can be manufactured according to applicable railway standards, with supply options including spring blades, bolts, guide plates, and pads. Production includes material verification, dimensional inspection, and mechanical testing, with MTC and inspection documents available.
