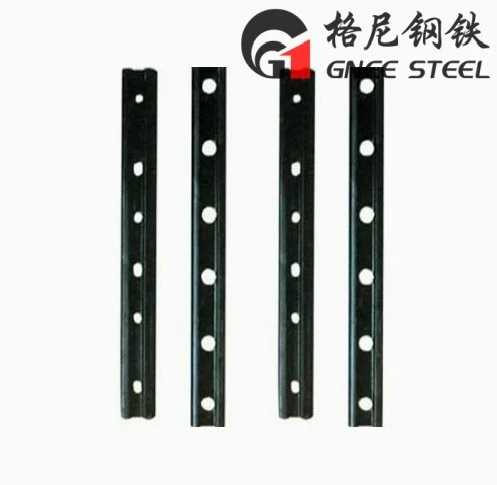

AREMA 136RE Rail joint
The AREMA 136RE rail joint, also known as a rail splice or joint bar, is a critical component in railway track systems, designed to connect two sections of 136RE rail in accordance with the standards set by the American Railway Engineering and Maintenance-of-Way Association (AREMA). This joint plays a vital role in ensuring the structural integrity and operational efficiency of railway lines. GNEE Rail is a professional railway fishplate supplier, offering rail joints in line with international standards, including American (AREMA), German (DIN), British (BS), European (EN), and Japanese (JIS). We can fully customize our products to suit your project. Feel free to get in touch!
AREMA 136RE Rail joint specification
| Standard | Type | Length/Diameter | Weight(kg) |
| AREMA 2018 | 132-136RE | 4 hole-24" | 17.75Kg |
| 132-136RE | 6 hole-36" | 26.63Kg |
GNEE Rail joint technical parameters
| Fishplate for UIC Standard Steel Rail | |||
| Steel Rail Type | Steel Rail Weight (KG/M) | Fishplate Standard | Fishplate Material |
| UIC54 | 54.43 | UIC | 45#,55# |
| UIC60 | 60.34 | ||
| Fishplate for BS Standard Steel Rail | |||
| BS50'O' | 24.833 | BS 47-1 | 55#,45# European Grade 700 |
| BS60A | 30.618 | ||
| BS75R | 37.041 | ||
| BS80A | 39.761 | ||
| BS90A | 45.099 | ||
| BS100A | 50.182 | ||
| BS113A | 56.398 | ||
| Joint Bar for AREMA 2007 Standard Steel Rail | |||
| 100RE(TR50) | 50.35 | AREMA 2007 | 45#,55#, AREMA Grade Steel |
| 115RE | 56.9 | ||
| 115-119RE | |||
| 132RE | 65.31 | ||
| 133RE | 66.1 | ||
| 136RE | 67.41 | ||
| 132-136RE | |||
| Fishplate For Chinese Standard Steel Rail | |||
| GB15KG | 15.2 | YB226-63 | Q235,45# |
| GB18KG | 18.06 | YB225-63 | |
| GB22KG | 22.3 | YB14-63 | |
| GB24KG | 24.46 | ||
| GB30KG | 30.1 | YB351-63 | |
| GB38KG | 38.733 | TB/T 2345-2008 | 45#,55# |
| GB43KG | 44.653 | ||
| GB50KG | 51.514 | ||
AREMA 136RE Rail joint workshop
