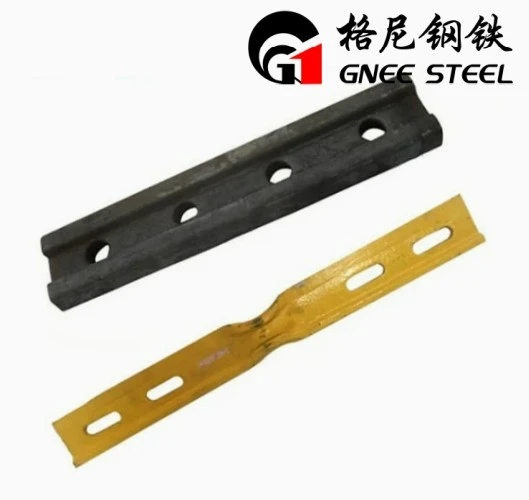

DIN Standard Track Joint Plate
The DIN Standard Track Joint Plate, also referred to as the DIN Rail Joint Bar, DIN Rail Fishplate, DIN Track Splice Plate, DIN Rail Connector Plate, and DIN Splice Bar, is an essential component of railway infrastructure designed to connect two adjacent sections of rail. Manufactured in accordance with the stringent standards established by the Deutsches Institut für Normung (DIN), these joint plates ensure consistent quality and performance across various railway systems. Their robust design provides a secure and stable connection, enhancing track alignment and safety during train operations. GNEE Rail specializes in a wide variety of railway fishplates that conform to American, UIC, German, Australian, and African standards. We can also customize products to fulfill your specific needs. Get in touch with us for more information!
DIN Standard Track Joint Plate specification
| Product | DIN Standard Rail Fishplate(Joint Bar) | |
| Standard | DIN 5902-1995 | |
| Raw Material | Chinese steel grade Q235 or Q295 | |
| Size | Fl10, Fl14, Fl18, Fl20, | Fl30, Fl33, Fl41-49, Fl41-54 |
| Tensile strength | Rm ≥375 MPa | Rm ≥390 MPa |
| Yield strength | Rel / Rr0.2 ≥235 MPa | Rel / Rr0.2 ≥295 MPa |
| Elongation | A ≥21% | A ≥23% |
| Surface | Plain, Oxide Black, or other upon requirements | |
| Package | Pallet | |
| Delivery | Depends on order | |
DIN Standard Track Joint Plate Mechanical Properties
Mechanical Properties (FL10 - FL20)
Tensile Strength Rm: ≥375 Mpa
Yield Strength ReL / Rr0.2: ≥235 Mpa
Elongation A: ≥21%
Mechanical Properties (Fl30 - Fl41-54)
Tensile Strength Rm: ≥390 Mpa
Yield Strength ReL / Rr0.2: ≥295 Mpa
Elongation A: ≥23%
