↵Rail FishPlate Fastening System

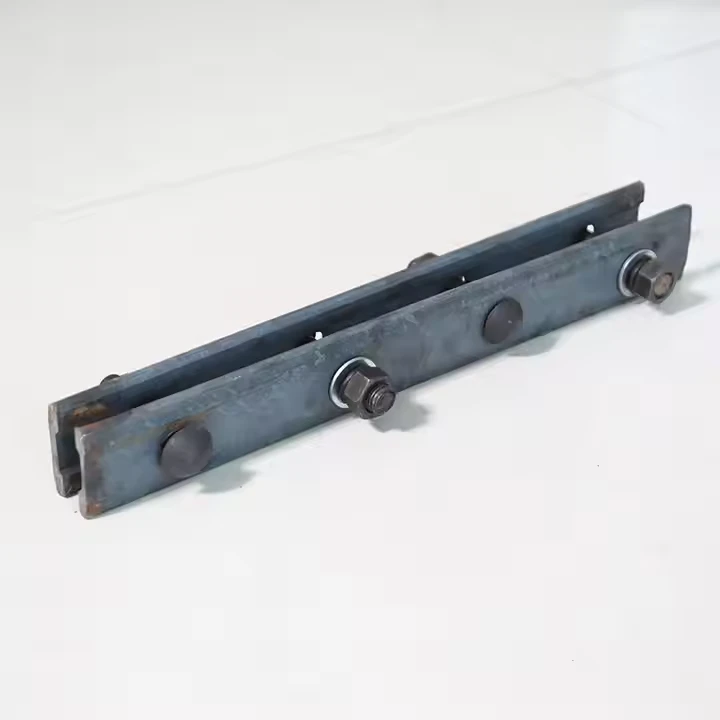

The GNEE Elastic Rail Fish Plate represents a fundamental re-engineering of traditional joint bar technology. Unlike conventional rigid fish plates that create fixed stress points, our elastic design introduces controlled flexibility at the rail joint, transforming it from a track weakness into a managed transition zone. By distributing dynamic forces across a wider area and accommodating micro-movements, this system significantly reduces impact forces, extends joint life, and maintains track geometry in high-stress applications.
Technical Specifications:
| Parameter | Specification | Engineering Advantage |
|---|---|---|
| Product Type | Elastic Joint Bar / Fish Plate | Not just a connector – a force management system |
| Design Principle | Tri-Segment Flexible Design with central damping section | Reduces impact forces by 40-60% compared to rigid joints |
| Material Science | Micro-Alloyed Forged Steel (42CrMo4V) with gradient hardness treatment | Core hardness: 38-42 HRC, Surface hardness: 45-48 HRC for wear resistance |
| Flexibility System | Integrated Polymer-Damping Layers between steel segments | Allows 1.5-2.5mm controlled vertical deflection at joint |
| Bolt Hole Design | Ovalized Precision Holes with reinforced collars | Accommodates thermal expansion without bolt bending or hole deformation |
| Surface Engineering | Multi-Stage Protection: 1. Shot peening for compressive stress 2. Zinc-Nickel electroplating 3. Epoxy-polymer top coat |
800-hour salt spray resistance, 15+ year corrosion protection |
Heavy-Haul Impact Zones
Configuration: Reinforced 8-hole design with impact-damping core
Performance: Withstands 35-40 ton axle loads with <0.8mm permanent deformation
Monitoring: Optional strain gauge installation for load monitoring
Field Data: 72% reduction in joint maintenance in Australian iron ore operations
Installation Quality Standards
- Joint Gap: 6-8mm for standard applications, 4-6mm for premium installations
- Bolt Torque: 400-450 N·m (Grade 8.8 bolts) with sequential tightening
- Surface Contact: Minimum 90% visual contact verified with marking compound
- Alignment: Vertical and lateral alignment within ±0.5mm
- Pre-load: 15-20kN elastic pre-load maintained after installation
