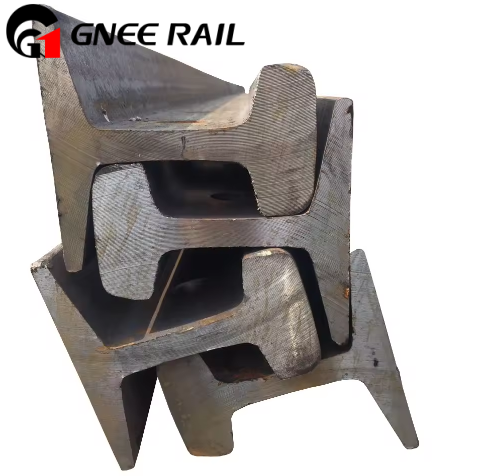

54E1 Rail
The rail profile 54E1, commonly known as UIC54, is manufactured by GNEE Rail in strict adherence to the European Standard EN 13674-1. Weighing 54.77 kilograms per meter.
We are a trusted rail manufacturer, offering a variety of EN standard heavy rails, including 60E1, 55E1, 54E1, 50E1, 49E1, 50E2, 49E2, 54E3, 50E4, 50E5, and 50E6 Rail. Therefore, we can manufacture all types of rails you need. Contact us for customized solutions tailored to your requirements.
Drawing
Specification
| Size | Dimension(mm) | Weight(kg/m) | Material | Length (m) | |||
| Head Width | Bottom Width | Height | Thickness | ||||
| UIC54 | 70 | 140 | 159 | 16 | 54.77 |
900A/1100 |
12-25 |
GNEE European Standard Rails
| Size | Head(mm) | Height(mm) | Base(mm) | Web(mm) | Nominal weight (kg/m) |
|---|---|---|---|---|---|
| 60E1 Rail | 72 | 172 | 150 | 16.5 | 60.21 |
| 55E1 Rail | 62 | 155 | 134 | 19 | 56.03 |
| 54E1 Rail | 70 | 159 | 140 | 16 | 54.77 |
| 50E1 Rail | 65 | 153 | 134 | 15.5 | 50.37 |
| 49E1 Rail | 67 | 149 | 125 | 14 | 49.39 |
| 50E2 Rail | 72 | 151 | 140 | 15 | 49.97 |
| 49E2 Rail | 67 | 148 | 125 | 14 | 49.1 |
| 54E3 Rail | 67 | 154 | 125 | 16 | 54.57 |
| 50E4 Rail | 70 | 152 | 125 | 15 | 50.46 |
| 50E5 Rail | 67 | 148 | 135 | 14 | 49.9 |
| 50E6 Rail | 65 | 153 | 140 | 15.5 | 50.9 |
