Products Description
The 6-meter standard eight-kilogram light rail refers to a specific specification of railway rails, which are mainly used in the construction of railway tracks."6-meter standard" means that the length of each rail is 6 meters. This length is one of the common railway rail lengths, which is convenient for transportation and installation.
Light steel rails are generally used for low-speed, light-load railway lines, or some temporary, light-duty track construction. Compared with heavy rails, light rails have a lower load-bearing capacity and are suitable for scenarios with low traffic density or light loads.
This type of rail is light in weight. An eight-kilogram rail is easier to transport, carry and install than a heavier rail.
At the same time, this type of rail is suitable for mining areas and is suitable for light load and low-speed rail transportation needs in mines.
In terms of cost-effectiveness, since the rail is lighter, the cost is relatively low, and it is easy to maintain, it is suitable for use in some smaller or less trafficked mining areas.

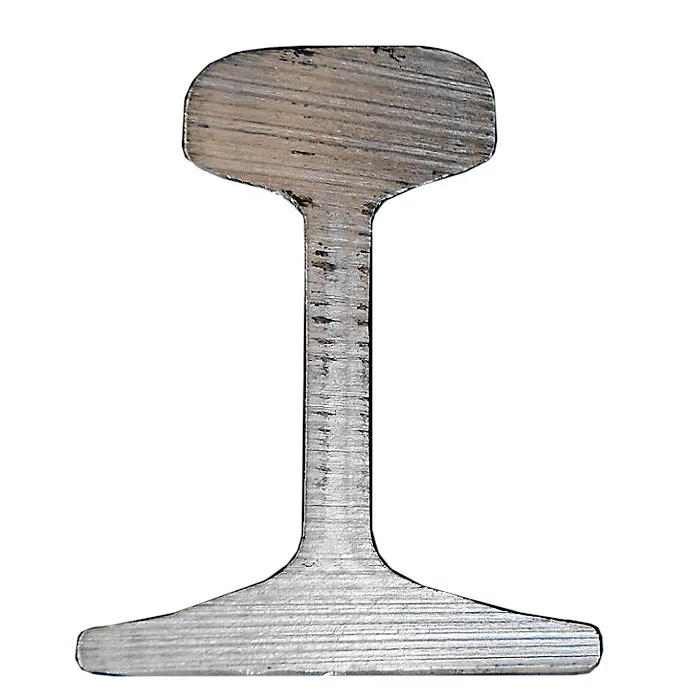

6m Standard 8kg Light Steel Rail
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 8Kg | 8.42 | Q235/55Q | 6m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 65 | 54 | 25 |
7 |
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.95 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
About Us
GNEE (Tianjin) Multinational Trade Co., Ltd.
Since our company was founded in 2008, we have accumulated rich experience in rail sales. On the road of rail trading, we always adhere to the principle of quality first. Each rail undergoes strict quality inspection to ensure that it meets international standards and customer requirements. This persistent pursuit of quality has won us wide praise from customers and market recognition.
FAQ
1. What types of rails do you supply?
A: We supply a variety of rails, including light rails (8kg/m-30kg/m), heavy rails (38kg/m-75kg/m), crane rails (QU70-QU120), subway rails (such as 54E1, 60E1), etc., in line with international standards (such as UIC, BS, ASTM, DIN, etc.).
2. What is the material of the rails?
A: We mainly use high-strength carbon steel (such as U71Mn, U75V) or alloy steel to ensure wear resistance, impact resistance and long life. The specific material can be adjusted according to customer needs.
3. What are the production standards of rails?
A: We can produce rails that meet international standards such as UIC 860 (International Union of Railways), BS 11 (British Standard), ASTM A1 (American Standard), DIN 536 (German Standard).
4. What is the minimum order quantity (MOQ) of rails?
A: Usually the MOQ is 50 tons, but it can be negotiated according to customer needs, small batch orders are also acceptable.
