Products Description

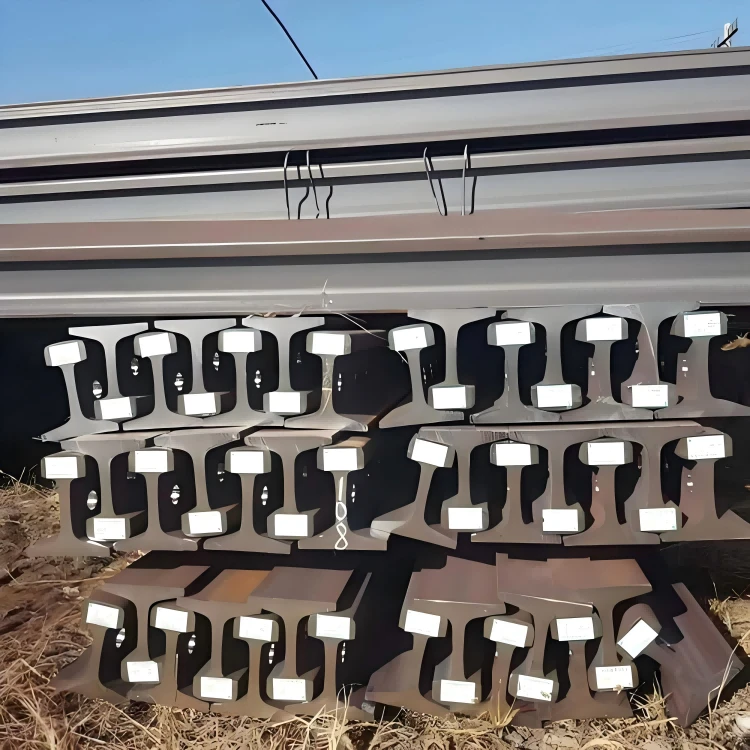

The Chinese standard 9kg light rail for mining refers to a steel rail with a weight of 9 kg per meter produced in accordance with Chinese national standards, which is mainly used in mining areas or other light railway systems. Due to its light weight and carrying capacity, the 9kg light rail for mining is usually used for mining railways with small loads, low speeds, and short distances, carrying the transportation of mineral resources such as ore and coal.
GB 9kg light rail refers to a steel rail with a weight of 9 kg per meter, which is a very light rail. Compared with heavier rails (such as 30kg and 40kg rails), 9kg rails are lighter and suitable for low-load mining railway systems.
GB 9kg light rail for mining is mainly used in mining railways and transportation systems within mining areas, especially for light transportation of resources such as ore and coal.It is suitable for short-distance transportation in mines, usually in environments with small loads and small transportation volumes.
GB Light Steel Rail
| Standard:GB11264-89 | |||||||
| Size | Dimension(mm) | Weight(kg/m) | Material | ||||
| Head(mm) | Height (mm) | Bottom(mm) | Web(mm) | ||||
| GB6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235B | |
| GB9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235B | |
| GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235B/55Q | |
| GB15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235B/55Q | |
| GB22KG | 50.3 | 93.66 | 93.66 | 10.72 | 22.3 | Q235B/55Q | |
| GB30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235B/55Q | |
Other Features
9kg mining light rail is generally made of high-strength steel or alloy steel. After heat treatment, its hardness, strength and wear resistance are guaranteed, and it can withstand the light load transportation of mine cars in the mining area. Although its carrying capacity is relatively low, it can still meet the requirements of low-speed operation in the mining area and ensure the smooth operation of the mine car.
The geometric dimensions of 9kg light rail (such as rail head width, rail root width, rail height, etc.) usually meet the relevant standards of Chinese mining rails, ensuring that its design is reasonable and meets the special needs of mining areas.The design of 9kg rails is relatively simple, mainly to meet the mining needs of lighter loads and low speeds.
GB Standard Mining Industry Steel Rail
