Products Description
The dimensions of GB light 12kg light rail (such as rail head width, rail root width and rail height) usually comply with China's national standard "Railway Rail" (GB/T 2585-2017), ensuring its structural rationality and stability. As it is a light rail, the design of the rail is relatively simple, suitable for low-speed operation and less traffic.
Due to its light weight, 12kg light rail is relatively cost-effective in manufacturing, transportation and installation. Therefore, it is very suitable for railway projects with limited budgets, small construction scale or no need to bear heavy loads.
Compared with heavier rails, 12kg light rail has lower transportation and installation costs. Due to the light rail, less manpower and mechanical equipment are required during the installation process, which is convenient for quick construction.

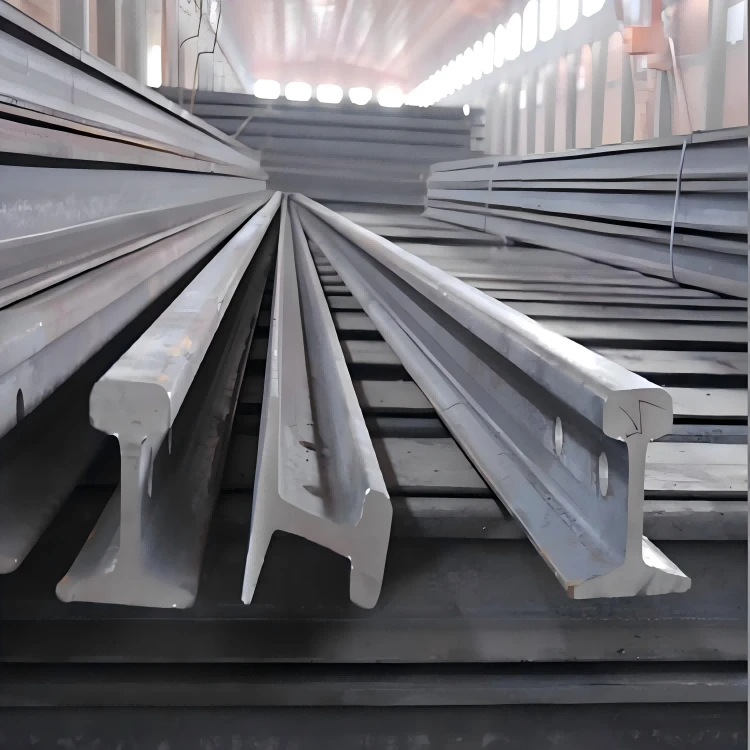

Chinese Standard 12KG Light Steel Track
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 12Kg | 12.20 | Q235 | 6m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 69.85 | 69.85 | 38.1 | 7.54 |
Light Steel Track
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 |
Other Features
Common applications of 12kg light rail:
Mining railway: This type of rail is used for light transportation within the mining area, carrying materials, raw materials or small transport vehicles.
Industrial railway: Small railway systems such as factories and storage areas are used for the transportation of light-loaded materials.
Agricultural rails: This light rail can also be used for light transportation in agricultural projects, such as transporting materials or equipment between farms and fields.
Small-scale urban rail transit: Some low-speed, low-traffic urban rail transit systems can also use 12kg light rails, such as light rail or small subway systems.

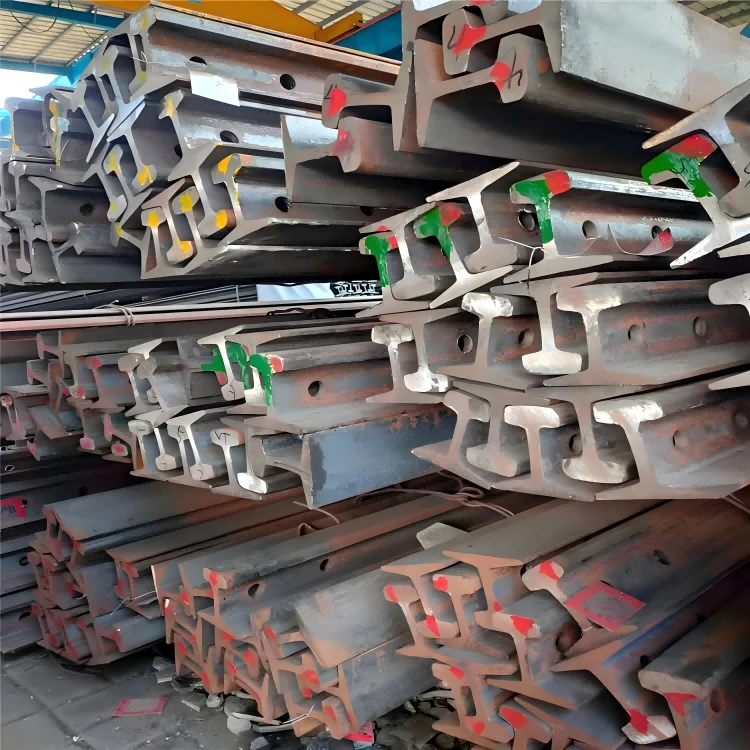

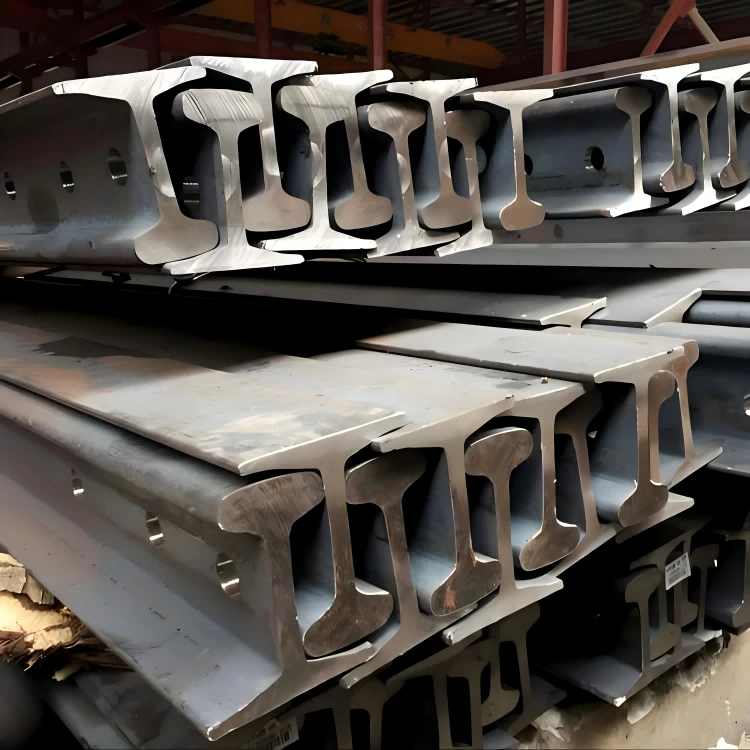

Chinese Standard Light Steel Track
About Us
Our company produces GB steel light with the concept of sustainable development and environmental protection, practices the concept of green steel, and adopts waste rail recycling and reprocessing technology, which reduces carbon dioxide emissions by 5,000 tons per year. Low-energy rolling technology and water-based environmentally friendly coating technology make rail production more in line with ESG investment standards and help the global low-carbon infrastructure transformation.
