Products Description
1.Classified by weight
Steel rails are classified by weight per unit length, usually based on weight per meter. Common rail weights include:
Light rail: such as 15kg, 22kg, 24kg, 30kg, etc., usually used for light railways, mining railways, and industrial parks.
Medium sized steel rails: such as 35kg, 38kg, 43kg, etc., suitable for general freight railways and medium load railway systems.
Heavy duty steel rails, such as 50kg and 60kg, are widely used in high-speed and heavy-duty railways, capable of withstanding greater traffic loads and the demands of high-speed operation.
2. Classified by purpose
Steel rails can also be classified according to their purpose, mainly including:
Ordinary railway rails: used for standard railway freight and passenger lines, suitable for most railway systems.
High speed railway rails: specially designed for high-speed railways, with higher strength, wear resistance, and durability.
Crane rail: specially designed for cranes, lifting equipment, etc., with stronger load-bearing capacity.
Mining rail: used for railway systems within mines and mining areas, usually lighter than ordinary railway rails, suitable for low-speed and low-frequency transportation needs.
| Normal Chinese standard steel rails in stock | |||||||
| Light rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 8 | 65 | 54 | 25 | 7 | 6 | 8.42 | YB |
| 18 | 90 | 80 | 40 | 10 | 6 & 8 | 18.06 | YB |
| 24 | 107 | 92 | 51 | 10.9 | 8 | 24.46 | YB |
| 12 | 69.85 | 69.85 | 38.1 | 7.54 | 6 & 8 | 12.2 | GB |
| 15 | 79.37 | 79.37 | 42.86 | 8.33 | 6 & 8 | 15.2 | GB |
| 22 | 93.66 | 93.66 | 50.8 | 10.72 | 8 & 10 | 22.3 | GB |
| 30 | 107.95 | 107.95 | 60.33 | 12.3 | 8 & 10 | 30.1 | GB |
| Heavy rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| 38 | 134 | 114 | 68 | 13 | 12.5 | 38.73 | GB |
| 43 | 140 | 114 | 70 | 14.5 | 12.5 | 44.65 | TB |
| 50 | 152 | 132 | 70 | 15.5 | 12.5-25 | 51.51 | TB |
| 60 | 176 | 150 | 73 | 16.5 | 12.5-25 | 60.64 | TB |
| 75 | 192 | 150 | 75 | 20 | 12.5-25 | 74.41 | TB |
| Crane rail | Height (mm) | Bottom width (mm) | Head width (mm) | Middle thickness (mm) | Length (m) | Weight (kg/m) | Standard |
| QU70 | 120 | 120 | 70 | 28 | 12 | 52.8 | GB |
| QU80 | 130 | 130 | 80 | 32 | 12 | 63.69 | GB |
| QU100 | 150 | 150 | 100 | 38 | 12 | 88.96 | GB |
| QU120 | 170 | 170 | 120 | 44 | 12 | 118.1 | GB |

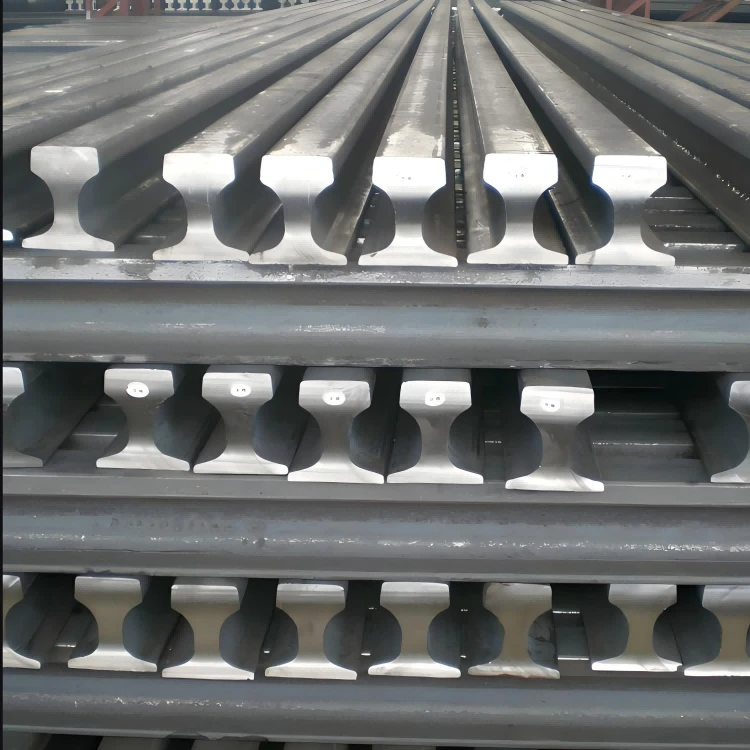

GB 43KG Heavy Steel Rail
Chinese Standard Steel Rails
About Us
GNEE (Tianjin) Multinational Trade Co., Ltd. has been engaged in steel import and export trade for 18 years. We are a company integrating production, processing and operation, with rich trade experience.
We provide professional customized services, with 7 warehouses across the country, with more than 10,000 tons of inventory and more than 800 specifications.We have 18+ years rich experience of professional production team, processing team and import and export sales team.Our company has an experienced team of professionals in the sales and production of Chinese standard rails, with more than 18 years of experience in foreign trade of rails, and has profound industry knowledge and technical strength. Whether it is product development, production management or market sales of rails, we can provide a full range of professional services.
Our company picture
FAQ
Q: Do your rails meet international standards? What are the certifications?
A: Our rails are in full compliance with international standards and have obtained a number of international certifications, such as ISO, CE and so on.
Q: What should I do if the rails received have quality problems?
A: If the received rails have quality problems, you should contact the supplier and provide relevant evidence in time. The supplier will provide solutions such as return, replacement and compensation according to the actual situation.
Q: How to carry out anti-corrosion treatment on steel rails?
A: Perform anti-corrosion treatment on the steel rails, such as coating with anti-corrosion paint, hot-dip galvanizing, etc., to prevent rusting and corrosion of the rails and extend their service life
Q: Do we need to protect the steel rails in hot weather?
A: Take corresponding measures to protect the steel rails during high temperature weather to prevent track deformation and derailment accidents caused by rail expansion.
