Products Description
This 30kg light rail specification rail is often used in light railways, industrial railways and some urban rail transit systems, and has good load-bearing capacity and applicability.
The characteristics of 30kg rails are as follows:
30kg rails refer to rails with a weight of 30 kg per meter. This type of rail is lighter than the rails used in heavy railways (such as 50kg and 60kg rails), so it is often used in light-load or low-speed railway systems.
In terms of materials and strength, 30kg rails are usually made of high-strength carbon steel or alloy steel, and are heat-treated to improve their hardness, wear resistance and compressive strength. They can withstand the operation requirements of general railway vehicles and lower loads.
30kg rails are usually used in non-high-speed railway systems, such as industrial railways, mining railways, light rails and some simpler local railway lines. Due to its lower weight and cost, it is suitable for railway systems with lower transportation frequency or lighter loads.

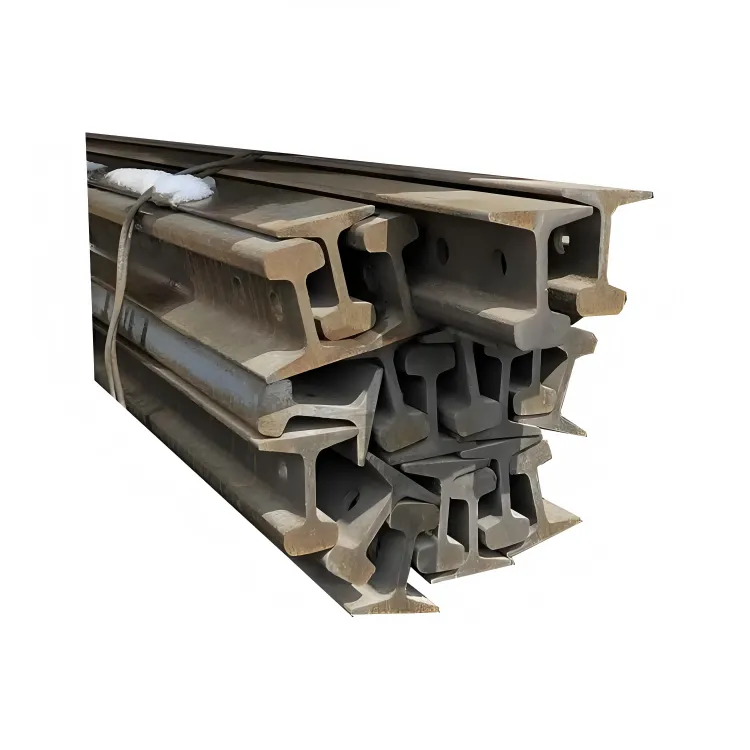

Chinese Standard 30KG Light Steel Rail
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 30kg | 30.10 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 107.95 | 107.95 | 60.33 | 12.3 |
Chinese Standard Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
Other Features
Standards and specifications:
30kg rails comply with China's national standard GB/T 2585-2017, which specifies the basic requirements for rails, including size, material composition, production process, mechanical properties, etc. The size of the rails (such as height, bottom width, head width, etc.) and other related parameters are strictly controlled according to this standard.
Length and customization:
Rails are usually produced according to demand, and the length can be customized. Common rail lengths are 12 meters, 18 meters, etc., and can also be cut and welded into longer rail sections according to project requirements.
GB 30KG Light Steel Rail
