Products Description
Definition:

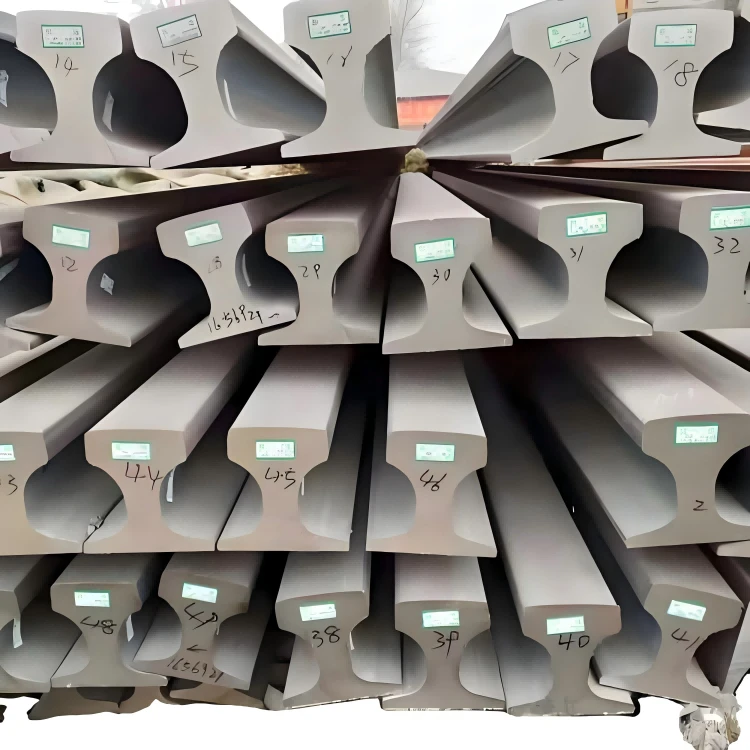

30kg mining steel rail refers to a type of light rail with a nominal weight of 30 kilograms per meter.
Specification:
The rail height is usually 107.95mm, the bottom width is also 107.95mm, the head width is 60.33mm, and the waist thickness is 12.3mm. These specifications ensure the stability and durability of the steel rails in mining environments.
| Size | DIMENSIONS (mm) | WEIGHT (kg/m) | |||
|---|---|---|---|---|---|
| A | B | C | t | ||
| GB 12KE | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 |
| GB 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 |
| GB 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 |
| GB 30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 |
GB Steel Rail Track Mining
