Products Description
The unit weight of this rail is 24 kilograms per meter. Compared to heavier rails (such as 30kg, 43kg, etc.), 24kg rails are lightweight rails with lower load-bearing capacity and are suitable for lighter transportation needs.
Light rail usually used in railway systems with low load-bearing capacity and slow transportation speed. 24kg steel rails are suitable for some special railway needs, such as mines, factories, light railways, etc.
24kg steel rails are relatively lightweight compared to heavy-duty rails (such as 43kg and 50kg), suitable for low-speed and low load railway systems, and can meet daily low load transportation needs.The load-bearing capacity of 24kg steel rails is suitable for carrying lighter trains and less traffic flow, and it is usually used in situations where the track load-bearing requirements are not high.
Due to the light weight of steel rails, the production, transportation, and installation costs of 24kg steel rails are relatively low, making them cost-effective and suitable for projects with limited budgets.

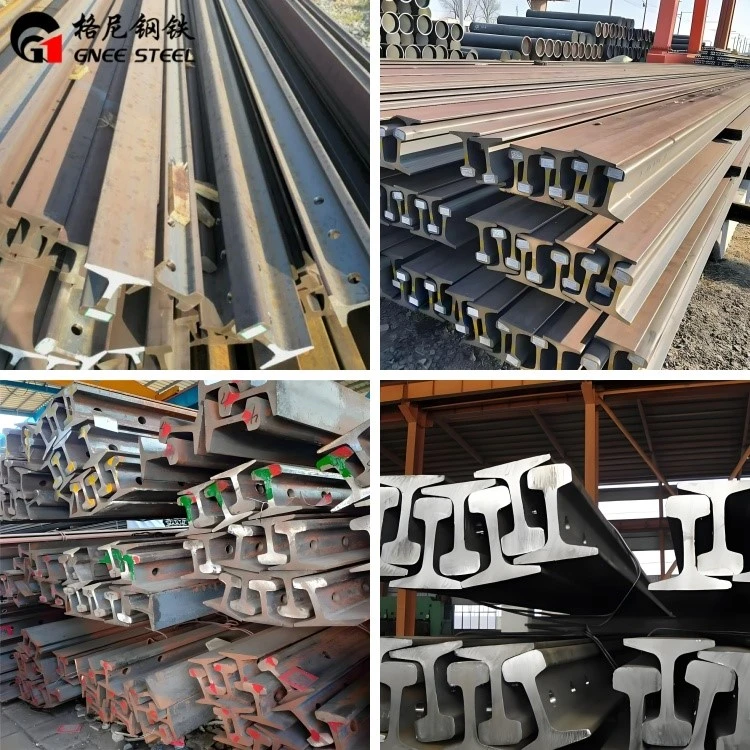

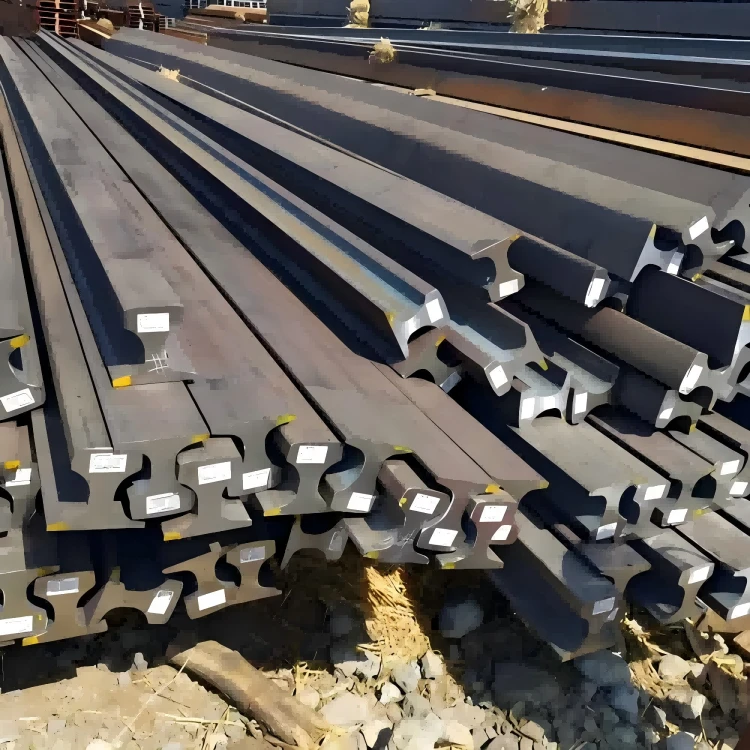

Light Steel Rail GB 24KG
| type | weight (kg/m) | material | length (m) |
| 24kg | 24.46 | Q235/55Q | 6-10m |

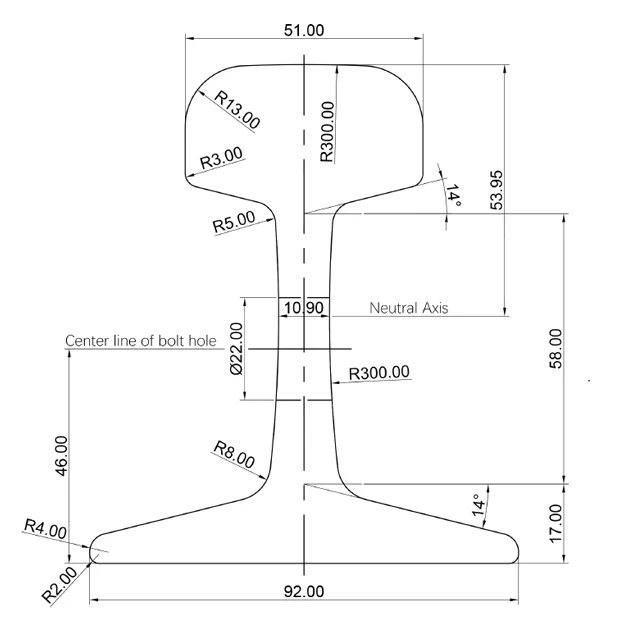

| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 107 | 92 | 51 | 10.90 |
Other Features
Application Fields
24kg steel rails are commonly used in mining railways, especially in some small mines or ore transportation systems, to undertake the transportation tasks of ore and other lightweight materials.
In industrial parks or factories, 24kg steel rails are often used for short distance material transportation, especially in situations with light loads and infrequent transportation tasks.24kg steel rails can also be used in agricultural areas, parks, or light rail systems, suitable for light transportation tasks.
Some cities' light rail systems may use 24kg steel rails, especially in situations with low traffic flow and light train loads.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weight kg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
