Products Description
22kg lightweight steel rail refers to a steel rail with a weight of 22 kilograms per meter. This type of rail is classified as lightweight steel rail and is suitable for carrying relatively low loads and small traffic volumes. Its main characteristics are light weight and high flexibility, and it is usually used in low load, low-speed transportation systems such as light railway systems, mining transport tracks, urban tracks, or short distance railways.
The weight of a 22kg rail per meter is 22 kilograms, which is lighter compared to traditional heavy-duty rails (such as 50kg/m or 60kg/m). Therefore, it is very suitable for carrying less heavy vehicles or for short distance, low-intensity transportation needs.
22kg lightweight steel rails are usually made of alloy steel or high-quality carbon steel, which have certain strength and wear resistance, and can meet the requirements of low load transportation. Although it is not suitable for high-speed or heavy trains, it is sufficient for the usage needs of small mines, light rail systems, and urban transportation.
Parameters Of 22kg Light Rail
| Parameters Of 22kg Light Rail | |||
| type | weight (kg/m) | material | length (m) |
| 22Kg | 22.30 | Q235/55Q | 6-10m |

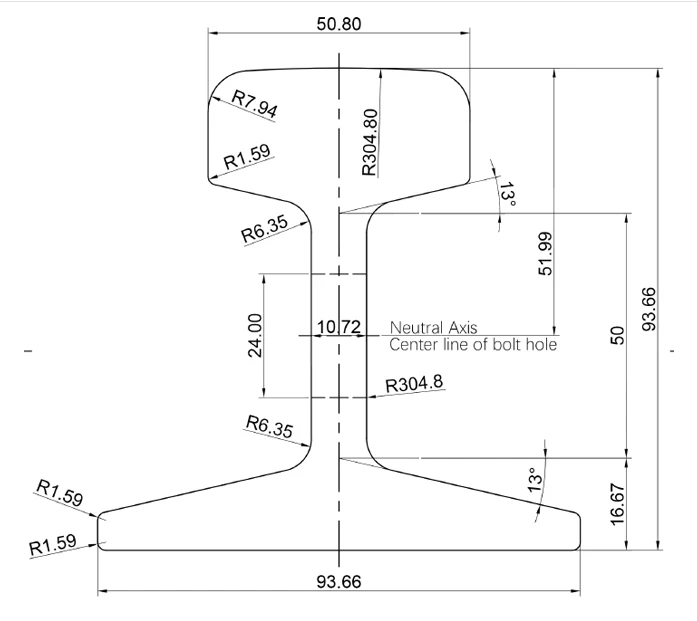

| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 93.66 | 93.66 | 50.8 | 10.72 |
Other Features
Specific requirements of national standards for rail materials
The national standard has put forward clear requirements for the material of steel rails to ensure that the quality and performance of steel rails meet the needs of railway transportation. These requirements include: the chemical composition of steel rails should comply with national standards and must not contain excessive harmful elements; The mechanical properties of steel rails should meet the specified indicators, such as tensile strength not lower than a certain value, and the product of yield strength and elongation should also meet certain conditions; In addition, steel rails should have good wear resistance and corrosion resistance to improve their service life and reduce maintenance costs.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 |
FAQ
Can I purchase a small quantity of steel rails?
Answer: We usually accept bulk orders, but if you need a small purchase, you can also contact us and we will arrange according to your needs.
How to choose the weight and length of steel rails?
Answer: The weight and length of steel rails mainly depend on the load-bearing requirements of the train and the specific design standards of the railway. Our sales staff can recommend suitable specifications based on your project requirements.
In which countries are your steel rails sold?
Answer: Our company sells steel rails to multiple countries and regions, including Asia, Europe, Africa, South America, and others.
