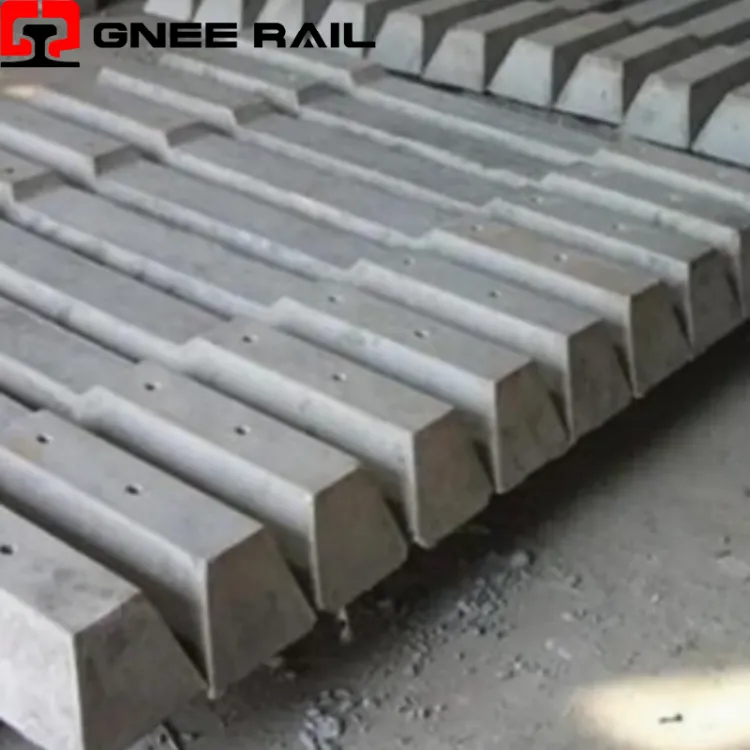

Railway Concrete Sleeper
| Category | Parameter | Description / Specification | Notes / Purpose |
|---|---|---|---|
| General Information | Product Name | Prestressed Concrete Sleeper / Concrete Tie | "Sleeper" (EN) / "Tie" (US). |
| Primary Function | To support rails, maintain gauge, and transfer loads from the rail to the ballast and subgrade. | The foundation of modern track structures. | |
| Application | Mainlines, High-Speed Rail, Heavy-Haul Lines, Tunnels, Bridges. | The global standard for most modern railways. | |
| Design & Types | Type | Monoblock (Single piece) or Twin-Block (Two blocks connected by a steel rod). | Monoblock is the most common type worldwide. |
| Profile | B70 (Standard), B91 (Wider for HSR), FFS (German design), Chinese Series (e.g., Type III, Type IIIa). | Profile defines the bottom width and ballast contact area. | |
| Fastening System | Embedded Shoulders (e.g., for SKL, Nabla clips) or Pre-inserted Bolts. | The system is integrated during manufacturing. | |
| Physical Dimensions | Length | ~2.5 m (8.2 ft) for standard gauge. | Varies slightly by design standard. |
| Weight | 270 - 340 kg (595 - 750 lbs) per sleeper. | Much heavier than wooden sleepers, providing superior stability. | |
| Section Height | Varies along length (center is tallest). | Engineered for optimal bending moment resistance. |
Key Terminology & Notes:
Prestressing: This is the key technology. High-tensile steel wires are tensioned before the concrete is poured. Once the concrete cures, the tension is released, transferring compressive stress to the concrete. This enables the sleeper to withstand immense bending forces from trains without cracking.
Why They Dominate: Concrete sleepers are the backbone of modern railways due to their strength, durability, and ability to maintain precise track geometry under high speeds and heavy loads. This reduces maintenance frequency and costs.
Comparison to Wood: They are heavier, more rigid, and have a much longer lifespan. However, they are less forgiving and require a well-prepared ballast bed and high-quality elastic fastening systems to cushion the ride.
Types:
B70: A common European profile with a bottom width of 700mm.
Type III/IIIa: Common Chinese designs for heavy-haul and high-speed lines, known for their robustness.
Application: They are essential for High-Speed Rail (where track geometry must be perfect) and Heavy-Haul (where immense axle loads must be distributed).
