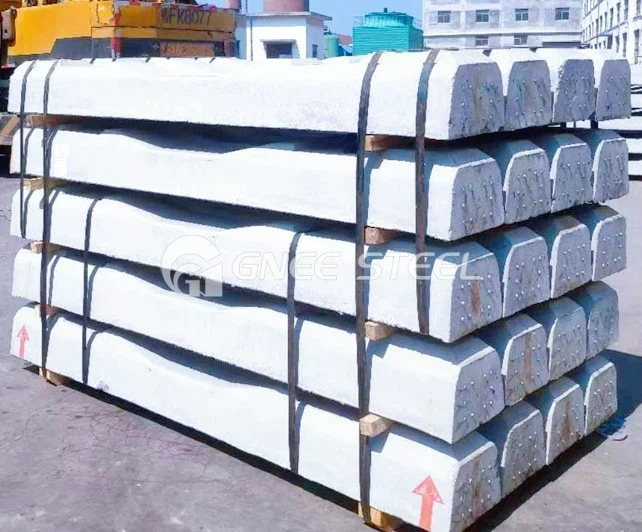

Concrete Sleeper - Technical Specification & Identification
| Parameter | Description & Details |
|---|---|
| Product Name | Prestressed Concrete Sleeper (or Concrete Tie in North America) |
| Common Names | Concrete Sleeper, Concrete Tie, Precast Sleeper |
| Primary Function | To support the rails, maintain gauge, transfer loads from the rails to the ballast, and provide a secure platform for the rail fastening system. |
| Key Material | High-Strength Concrete (typically C50/60 or higher grade) and Prestressing Steel Wires/Strands (e.g., 7-wire strand, 5mm hard-drawn wire). |
| Manufacturing Process | Long-line prestressed production or short-line (carousel) method. Concrete is vibrated, steam-cured, and demolded. |
| Reinforcement | Prestressed Tendons: Pre-tensioned wires that put the concrete in compression, giving it high tensile strength. |
Concrete Sleeper - Application, Advantages & Comparison
| Aspect | Details |
|---|---|
| How it Works | The weight and stiffness of the sleeper distribute train loads over a large area of ballast. The prestressing provides resistance to bending cracks. Embedded inserts hold the fastening system. |
| Installation | Laid by specialized sleeper laying machines or track renewal trains. Requires a well-prepared, leveled ballast bed. |
| Key Advantages | - High Durability & Long Life: Service life of 40-50 years or more, far exceeding wood. - Excellent Stability: High weight and stiffness provide superior track geometry stability, essential for high-speed operations. - Low Maintenance: Resists rotting, decaying, and insect damage. Reduces track upkeep costs (CAPEX vs. OPEX). - Environmental: Uses abundant natural materials (concrete, stone); no deforestation required. - Design Flexibility: Can be engineered for specific loads, speeds, and track configurations. |
