Precast Concrete Railway Sleeper
Precast Concrete Railway Sleeper also known as Concrete Railway Tie, Concrete Crosstie. Precast Concrete Railway Sleepers are factory-made sleepers that are molded and cured before being installed on the railway track. These sleepers offer consistent quality, strength, and durability, ensuring long-lasting performance under heavy loads and harsh weather conditions. GNEE Rail, we specialize in supplying concrete railway sleepers, including turnout sleepers, double block sleepers, and subway sleepers. Adhering to international standards such as EN, BS, and AREMA, we ensure top-notch quality. With a large inventory of molds, we offer customization services to meet your specific needs. Reach out to us anytime!
Precast Concrete Railway Sleeper specification
|
Product name |
Precast concrete railway sleepers |
|
Material |
Prestressed concrete and steel bars |
|
Size |
Customers' drawings |
|
Standard |
UIC, DIN, AREA, BS, GOST, JIS |
|
Rail type |
8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m, 38kg/m, 43kg/m, 50kg/m, 60kg/m etc |
|
Rail gauge |
1435mm,1067mm,1520mm |
|
Sleeper Accessories |
bolts, screws, bushings,clamps, rubber plates and etc |
|
Axle Load |
Max 25t |
Precast Concrete Railway Sleeper technical parameters
|
Gauge |
Sleeper type |
Rail section |
Standard drawing number |
Sleeper design number |
|
BG |
Mono block |
60kg |
RDSO/T-2496 |
PDS-14 |
|
BG |
Mono block |
52kg |
RDSO/T-2495 |
PDS-12 |
|
BG |
Mono block |
60kg/52kg |
RDSO/T-3602 |
Post-tension type |
|
BG |
Mono block |
90R/75R |
RDSO/T-2521 |
RCS-6 |
|
BG |
Mono block |
90R |
RDSO/T-2503 |
PCS-17 |
|
MG |
Twin block |
75R/60R |
RDSO/T-3518 |
PCS-12 |
|
BG |
Twin block |
75R |
RDSO/T-153 |
PCS-11 |

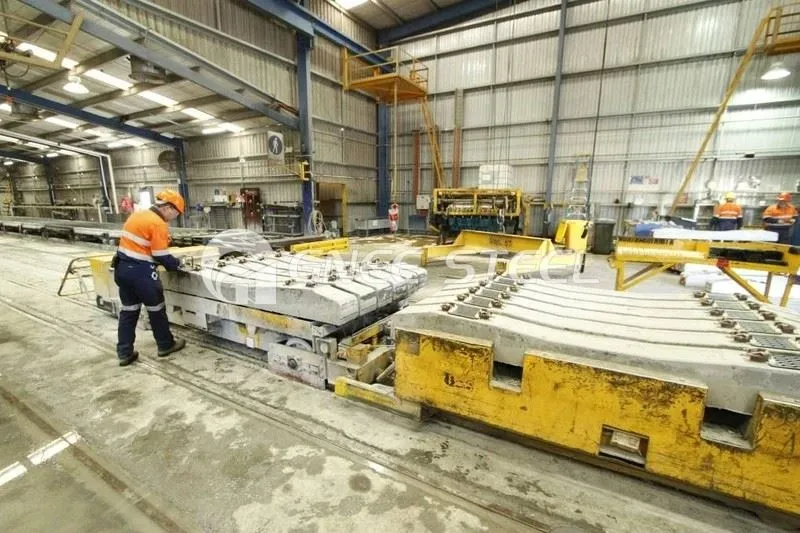

Precast Concrete Railway Sleeper workshop
