Are UIC54 And 54E1 Rail The Exact Same Product?

UIC54 and 54E1 refer to the same rail profile. The designation 54E1 is the formal name under the European standard EN 13674-1, while UIC54 is the traditional name from the International Union of Railways (UIC) standard UIC860 . Both names describe a flat-bottomed rail with a height of 159 mm, a foot width of 140 mm, and a head width of 70 mm .

uic54 rail specification:

At GNEE RAIL, our integrated production lines manufacture this profile to meet both EN13674-1 and UIC860 specifications, giving our clients the flexibility to reference either standard with complete confidence. With advanced rolling mills and comprehensive quality control, we deliver rails that satisfy the most demanding international project requirements.

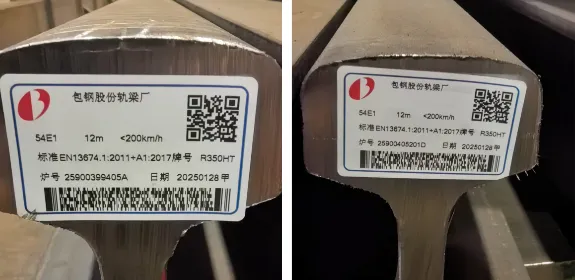

The 54E1 rail (commonly referred to as UIC 54) is a high-performance, standardized European rail profile designed for mainline and heavy-duty railway systems. Its primary advantages lie in its balanced weight-to-strength ratio, exceptional durability, and global interoperability.
The rail typically weighs 54.77 kg/m and is manufactured according to EN 13674-1 and UIC 860 standards.

1. Superior Load-Bearing and Stability

• High Axle Load Capacity: It is engineered to support heavy freight and high-speed passenger trains with axle loads typically ranging from 20 to 25 tonnes, and up to 30+ tonnes in reinforced variants.



• Optimized Load Distribution: Its wide base (standardized at approximately 125--140 mm, with variants up to 320 mm) spreads weight more evenly across sleepers and ballast. This reduces point pressure, minimizing track settlement and ground deformation.



• Structural Rigidity: The deep web design provides high resistance to bending and lateral forces, which maintains precise track gauge and alignment under dynamic stress.

2. Durability and Wear Resistance

• Advanced Metallurgy: Made from high-quality carbon manganese steel (typically grades R260 or R260Mn), the rail offers high tensile strength (≥ 880 MPa) and surface hardness (typically 260–300 HB).

• Fatigue Resistance: The profile is precision-engineered to minimize contact stress between the rail head and wheels, significantly reducing rolling contact fatigue (RCF) and surface wear.

• Head-Hardened Variants: For high-traffic or curved sections, head-hardened versions (R350HT) are available, which increase surface hardness to 350–390 HB and extend service life by up to 30–50%.

3. Operational Efficiency and Smoothness

4. Global Standardization and Versatility

• Interoperability: Because it adheres to international UIC and EN standards, 54E1 rails ensure seamless cross-border operations and compatibility with a wide range of standard fastening systems (e.g., Pandrol clips) and maintenance equipment.

• Multi-Sector Application: It is a "balanced" choice suitable for mixed-traffic mainlines, heavy-haul freight, urban metro/suburban transit, and even specialized industrial environments like mining and ports.

• Q1: What is the exact weight of UIC54 rail per meter?

The exact weight of uic54 rail is 54.77 kg per meter. This weight is a key identifier for the rail profile. Some references may round this to 54.8 kg/m, but the precise value is 54.77 kg/m according to both UIC and EN standards .

• Q2: What is the maximum length available for UIC54 rail?

Standard lengths for rail 54e1 range from 12 meters to 25 meters. However, GNEE RAIL can produce custom lengths based on project requirements. Longer rails reduce the number of joints needed, which lowers installation time and improves track stability .

• Q3: Which steel grade is best for curved tracks?

For curved tracks, especially those with a radius of less than 500 meters, a harder steel grade is recommended. R350HT is the preferred choice for curves because its higher hardness resists wear and flow on the gauge corner of the rail head. This significantly extends rail life in curves compared to R260 .

• Q4: What is the difference between UIC54 and UIC60?

The main differences are size and weight. UIC60 (60E1) has a taller profile (172 mm height), a wider base (150 mm), and a higher weight (60.21 kg/m). UIC60 is typically used for very high-speed lines and extreme heavy-haul applications, while UIC54 is a more versatile choice for conventional mainlines, metros, and freight routes .

When you need reliable track materials, the quality of the rail and the reliability of the supply chain matter. GNEE RAIL specializes in the production of uic54 rail and 54e1 rail, ensuring that every length meets stringent dimensional and mechanical requirements.

We maintain strict control over rolling precision and dimensional tolerance. This means that when you receive our uic54 rail profile, you can expect consistent geometry across all batches. Stable load distribution and reliable track performance start with accurate dimensions, and our production process is designed to deliver exactly that.

Our flexible production and processing capabilities allow us to support a wide range of project requirements. Whether you need specific lengths, drilled holes for bolted joints, or heat-treated R350HT for challenging curves, we can accommodate your needs. We also manage the entire supply chain to ensure timely delivery to your project site.

If you need technical details or application support, you can contact us to get uic54 rail solutions tailored to your project conditions. Our team can help you select the right steel grade, confirm dimensional requirements, and plan the logistics. We are here to provide the right options based on your specific track conditions.
