How Much Does a 60 lb Rail Line Weight?
Rail ASCE 60, also known as 60 lb ASCE rail, is a medium-weight rail profile widely used in industrial tracks, logistics systems, and light railway applications. It has standard asce 60 rail dimensions, accurate 60 lbs rail dimensions in mm, and a nominal 60 lbs rail weight per meter of about 29.8 kg/m, which defines its load capacity and application range.
asce 60 rail dimensions：
| Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
|---|---|---|---|---|---|
| 60 LBS Rail(ASCE 60) | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 |

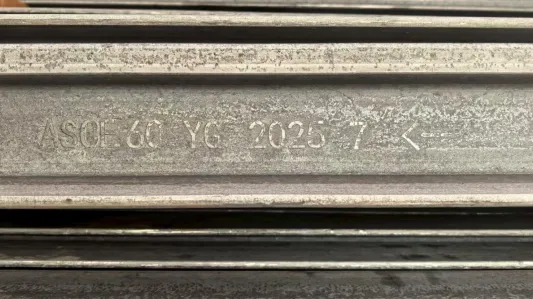

At GNEE RAIL, the production of asce 60 rail is controlled through stable rolling processes and strict inspection. Consistent asce 60 rail dimensions, reliable weight tolerance, and flexible length supply ensure that each rail can be directly used in different project conditions with minimal adjustment.
What Does This Weight Actually Mean in Real Use?
The 60 lbs rail weight per meter is not just a number. It directly defines where this rail can be used and how it performs over time.

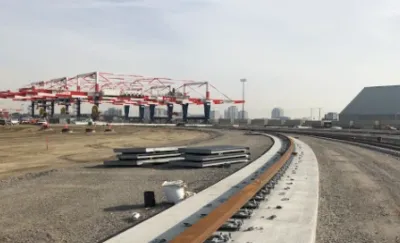

At around 29.8 kg/m, rail ASCE 60 is designed for medium-duty applications. It can handle continuous operation under moderate loads without deformation. This makes it suitable for factory transport lines, ports, and workshop systems.
If the application matches this weight level, the rail remains stable, alignment is easier to maintain, and maintenance frequency stays low. If the load exceeds this range, wear and deformation will accelerate.
This is why weight must always be matched with actual working conditions, not just selected based on price.
How Does ASCE 60 Compare with Other Rail Types?
When choosing between rail types, the key difference comes down to weight, size, and load capacity.

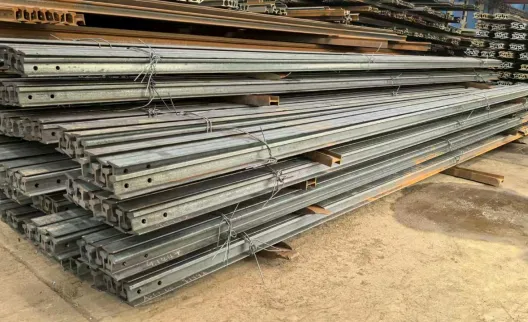

- Compared with heavier rails such as UIC54 or UIC60, 60 lb ASCE rail has a lower 60 lbs rail weight per meter, which means lower load capacity but also lower cost and easier handling.
| Type of Rail | Dimensions mm | Steel Grade | Weight(Kg/m) | |||
| Rail height/A | Bottom Width/F | Head Width/C | Web Thickness/t | |||
| 54E1 (UIC54) | 159 | 140 | 70 | 16 | R200 / R260 / R260Mn / R300HT | 54.77 |
| 60E1 (UIC60) | 172 | 150 | 72 | 16.5 | R200 / R260 / R260Mn / R300HT | 60.21 |
- Compared with lighter rails, it provides better strength and longer service life. This makes asce 60 rail a balanced option between performance and cost.
In practical use, this rail is often selected when heavy rail is unnecessary, but light rail is not strong enough. That positioning is what makes it widely used.
What Material and Performance Can Be Expected?
The performance of rail ASCE 60 depends not only on weight but also on material.
It is typically produced from medium to high carbon steel such as ASTM rail steel or U71Mn. This provides good wear resistance at the rail head and sufficient strength in the web and base.
| Mechanical Property | Chemical Composition (%) | |||||||||||||
| U71Mn | Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | |||||||||
| ≥390 | ≥40 | ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤0.030 | ≤0.030 | ≤0.250 | ≤0.250 | ≤0.250 | |||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
With proper material and controlled asce 60 rail dimensions, the rail can handle repeated stress cycles without cracking. It also maintains stable performance in industrial environments where vibration and impact are common.
GNEE RAIL controls both chemical composition and rolling quality, ensuring that each 60 lb ASCE rail delivers consistent durability and service life.
FAQ
- What is the actual weight of 60 lb ASCE rail per meter?
The standard 60 lbs rail weight per meter is approximately 29.8 kg/m.This value defines its load capacity and application range.
- Is ASCE 60 rail strong enough for industrial use?
Yes, it is designed for medium-duty industrial applications.It can handle continuous operation under controlled load conditions.
- How does it compare with heavier rail like UIC54?
UIC54 has higher weight and load capacity.ASCE 60 rail is more cost-effective for medium-load applications.
- Can ASCE 60 rail reduce project cost?
Yes, when matched correctly to the application.It avoids the higher cost of heavy rail while still providing reliable performance.
- What should be confirmed before choosing this rail?
Load conditions, asce 60 rail dimensions, material quality, and application type must all match.This ensures stable performance and longer service life.
GNEE RAIL produces rail ASCE 60 with stable 60 lbs rail weight per meter, precise asce 60 rail dimensions, and accurate 60 lbs rail dimensions in mm. With controlled material selection, consistent production, and flexible processing, reliable performance can be achieved across different applications. If specification matching or project selection needs to be confirmed, you can contact us to get ASCE 60 rail solutions, and practical support will be provided.
