What is the service life of a rail elastic clip?

The service life of rail elastic clips is influenced by multiple factors, typically ranging from 8 to 15 years, with high-quality products lasting over 12 years under standard operating conditions.

Their lifespan is primarily determined by four key elements: material properties, heat treatment process, operating environment, and maintenance quality.

Clips manufactured from premium spring steels like 60Si2MnA or 60Si2CrA, after undergoing standardized heat treatment, can guarantee a fatigue life exceeding 3 million cycles, which corresponds to a cumulative traffic tonnage of approximately 800 million gross tons on heavy-haul lines.

Environmental corrosion is a critical variable affecting lifespan. In arid inland areas, clips may achieve the designed 15-year service life, whereas in coastal high-salt-spray environments or industrial polluted zones, the life could be reduced to 6-8 years.

The quality of surface treatment is crucial here; a standard hot-dip galvanized coating (thickness ≥50μm) can improve corrosion resistance life by 2-3 times. Dynamic load characteristics are equally important. Continuous vibration from high-speed railways and impact loads from heavy-haul lines accelerate stress relaxation. Regular torque inspection and adjustment can control the annual clamping force decay rate to within 3%.

A scientific maintenance system can significantly extend the service life. It is recommended to establish a comprehensive inspection cycle every two years, using specialized tools to measure the clamping force decay rate. Batch replacement should be performed when the decay exceeds 25% of the initial value.

The elastic clips supplied by GNEE RAIL come with a complete quality traceability system. Through material certification, process parameter records, and in-service performance monitoring, we provide data support for accurately predicting replacement cycles, assisting customers in advancing from "scheduled replacement" to "condition-based maintenance."

Approved by China's Railway Ministry and certified by ISO9001-2008 and SGS authorities, GNEE RAIL manufactures and supplies elastic rail clips of excellent properties covering complete types and standards. Using optimum spring steel as raw material, the finished products show high tensile strength and corrosion resistance after a series of precise processing procedures. The elastic rail clips we produced can withstand bending, torsion, fatigue corrosion, and many other effects. Owing to the biggest production base, our capacity is up to 5,000,000 pieces.

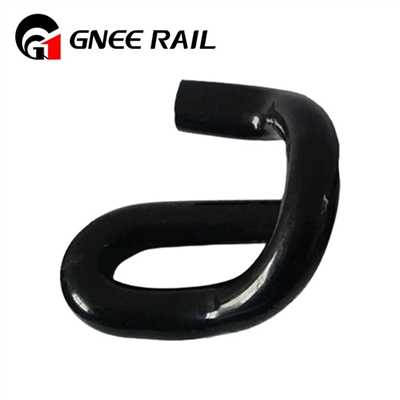

• E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.

• SKL Tension Clips: SKL1, SKL3, SKL12, SKL14, SKL75.

• Other Rail Clips: Russian rail clip, special rail clip,

• Customized rail clips are as per drawings or client requirements.
