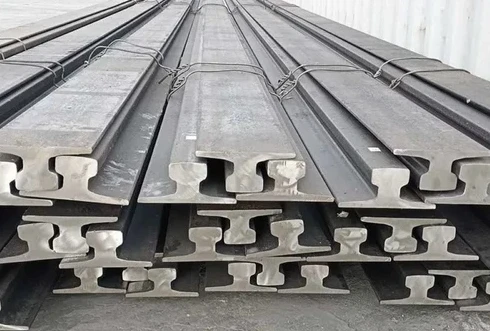

Why choose the A75 Steel Rail?
Designed under the rigorous European DIN 536 standard, the A75 rail profile features a unique low-profile geometry with a wide base, making it significantly more resistant to lateral forces compared to standard railway tracks. It features a 200 mm wide base that enhances lateral load distribution and is generally manufactured from durable U71Mn material, offering a 56.2 kg/m weight to balance strength with installation flexibility.
- Superior Stability: The broad 200 mm base of the DIN 536 A75 rail distributes heavy wheel loads over a larger surface area, reducing the pressure on sole plates and the supporting structure.
- High Lateral Load Resistance: Its low height-to-width ratio (85 mm height vs. 200 mm base) ensures the A75 tracks remain stable under the intense side-thrusts typical of moving semi-gantry cranes.
- Durable Material Options: Available in various Grades of DIN 536 Crane Rail (such as 700A or 900A), the A75 steel rail can be tailored to provide the specific A75 rail hardness needed to prevent "mushrooming" or surface wear.
- Global Standardization: As a core part of the DIN 536 A series rails, the A75 Rail specifications are recognized worldwide, ensuring easy sourcing of compatible clips/A75 crane rail clips, pads/rail pads, and fishplates.
GNEE RAIL maintains absolute control over the manufacturing process to ensure that every Profile A75 rail is produced to exact dimensional tolerances. Our in-house technical capabilities allow us to offer Custom Drilling Services, End Processing & Finishing, and specialized heat treatments directly at the source, providing a level of quality control that exceeds standard third-party sourcing.
What are the dimensional and structural advantages of the A75 rail profile?
The A75 rail profile, designed according to the DIN 536 P1:1991 standard, is a heavy-duty rail specifically engineered for crane runways, gantry cranes, and automated logistics systems. It is known for a 75 mm head width, a 200 mm base width, and a weight of 56.2 kg/m, making it a reliable choice for medium-to-heavy loads in industrial settings.
Key Structural and Dimensional Advantages of the A75 Rail Profile:
- High Lateral Stability & Reduced Deformation: The A75 features a wide base (200 mm) and a relatively low height (85 mm) compared to its width, creating a robust, low-profile design that minimizes vertical and lateral deformation under heavy, repeated loads, such as those from 50–100 ton cranes.
- Optimal Load Distribution: The exceptionally wide 200 mm base (significantly wider than many standard railway rails) distributes high loads over a larger surface area, reducing stress on the supporting concrete or steel beams.
- Thick Web and Robust Head: The profile includes a thick web (approx. 45 mm) that provides high structural rigidity and a 75 mm head designed to handle intense vertical pressure and reduce wear.
- Superior Wear Resistance: Manufactured with specialized high-strength steel grades (like 900A), the rail is engineered for maximum hardness (≥ 260 HB with optional heat treatment) and abrasion resistance, resulting in a longer service life (often >15 years).
- High-Intensity Load Handling: The A75 is optimized for high-intensity, "start-stop" operations typically found in port container terminals, steel manufacturing facilities, and heavy engineering environments.
- Stable Alignment & Mounting: The 75 mm head width is designed to fit standard crane wheels, while the wider base accommodates standardized rail clips and rubber pads, making it easy to align precisely and reducing the likelihood of loose components.
Frequently Asked Questions
- What is the main advantage of the A75 rail over a standard rail?
The A75 crane rail has a much wider base (200 mm) relative to its height (85 mm), providing significantly better lateral stability and weight distribution for overhead cranes than standard railway tracks.
- Can A75 rail handle the weight of a ship unloader?
Yes, the DIN 536 A75 rail specifications are specifically designed for high-load applications like ship unloaders, gantry cranes, and stacking cranes in port environments.
- What is the standard length of an A75 rail section?
The DIN 536 Standard A75 rail length is typically 12 meters, which is optimized for both structural integrity and efficient shipping in 40-foot containers to material yards.
- Is the A75 rail available in different hardness levels?
Absolutely. We can provide different Grades of DIN 536 Crane Rail, including head-hardened options, to achieve the specific A75 rail hardness required for high-frequency operations.
- How is the A75 rail fixed to the ground?
It is typically secured using a combination of sole plates, pads/rail pads, and either weldable or bolted A75 crane rail clips, ensuring the A75 tracks remain perfectly aligned.
- What is the weight of the A75 rail per meter?
The a75 rail weight per meter is approximately 56.2 kg/m. This mass is a key factor in the DIN536 A75 Rail Weight providing the necessary durability for heavy duty crane rail use.
Get a Quote in 24 Hours
At GNEE RAIL, we provide the manufacturing depth and technical expertise to ensure your A75 Rail project is executed perfectly from day one. Contact Us to receive a detailed quote, technical drawings, or a consultation on the most effective Rail A75 options for your specific industrial infrastructure. Our team is ready to assist with Custom Drilling Services, logistics planning, and technical processing to ensure your A75 runway sections meet the highest global standards.
