This order covered 740 pieces of ASCE 60 rails, each 9.144 m (30 ft) long with a unit weight of 272.5 kg, adding up to 201,650 kg (≈ 201.65 MT). The cargo was loaded in Qingdao, China (handled via Tianjin) and shipped to Manzanillo, Mexico under CIF terms, with the mill test certificate and a complete set of export documents provided.
|
Item |
Detail |
|
Product |
ASCE 60 heavy rail |
|
Grade |
55Q |
|
Standard |
AREMA / ASCE (ASCE 60) |
|
Length |
9,144 mm (30 ft) |
|
Quantity |
740 pieces |
|
Unit weight |
272.5 kg |
|
Total weight |
201,650 kg ≈ 201.65 MT |
|
Loading port |
Qingdao, China (handled via Tianjin) |
|
Destination |
Manzanillo, Mexico |
|
Packing |
Seaworthy bundling, 40HC containers |
|
Lead time |
20 days after payment |
|
Payment |
TT - 30% advance, balance before shipment |

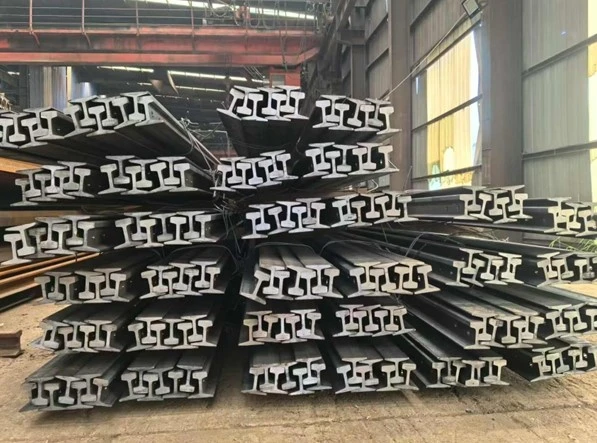

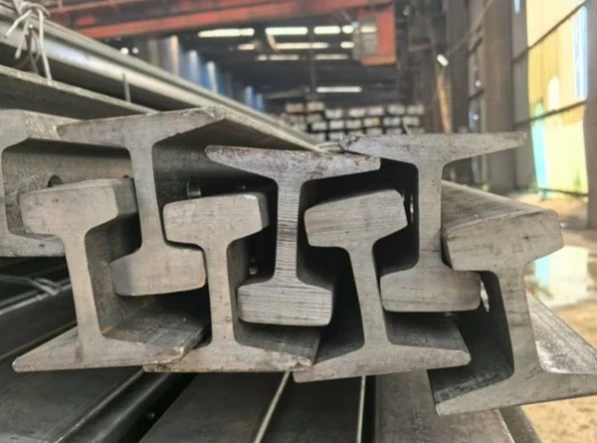

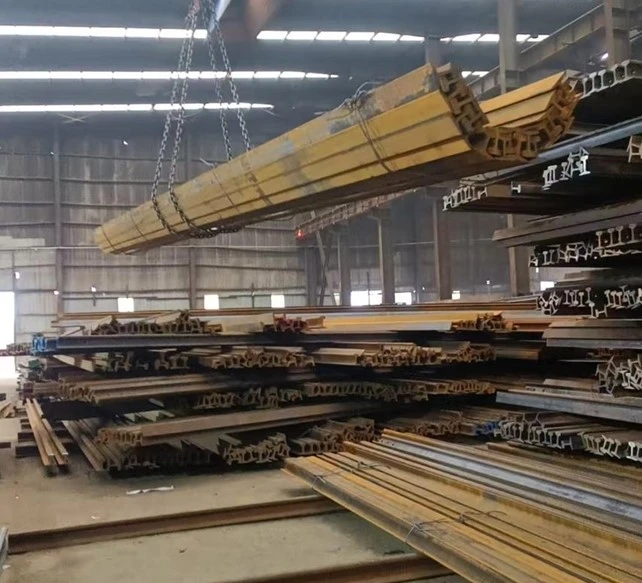

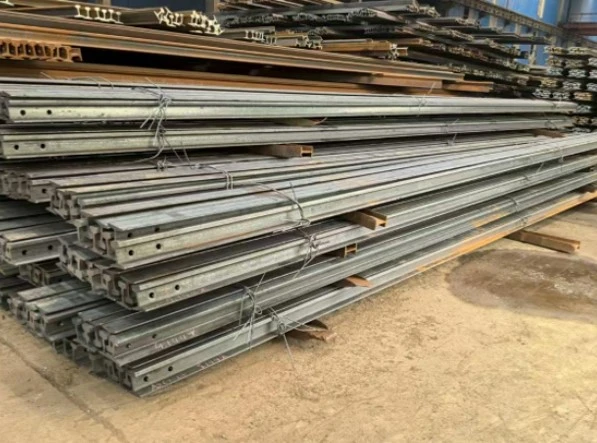

ASCE 60 rails bundled and staged in the storage yard ahead of shipment.
Production & Quality Control
The rails were produced at Gnee Railway and delivered through a fully controlled chain: steelmaking → hot rolling → dimensional inspection → mill certification.

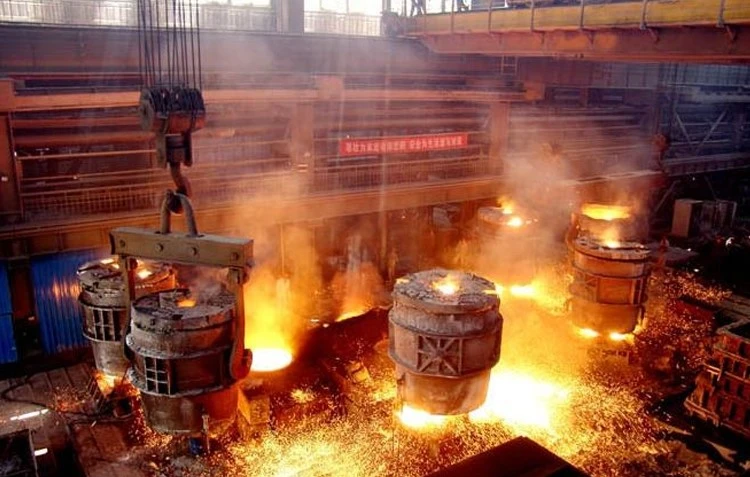

Steelmaking - molten steel refined and cast to rail blooms under controlled chemistry.

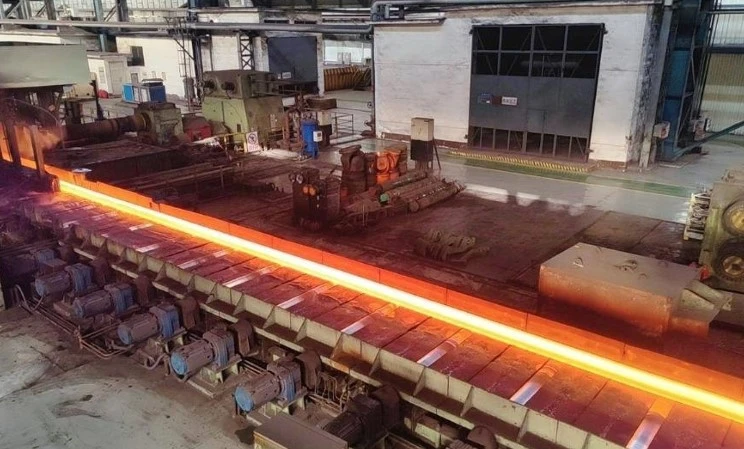

Hot rolling - blooms rolled into the ASCE 60 profile at controlled temperature and speed.

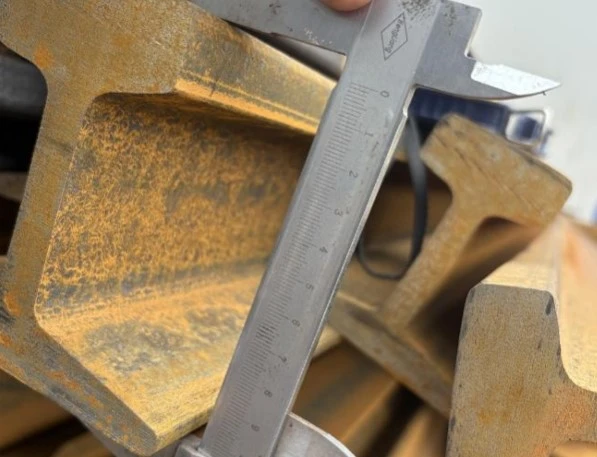

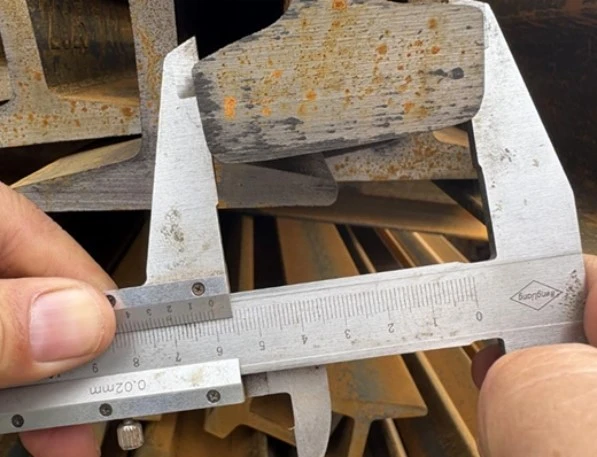

Dimensional QC - head, flange, web and straightness checked with precision calipers (0.02 mm).

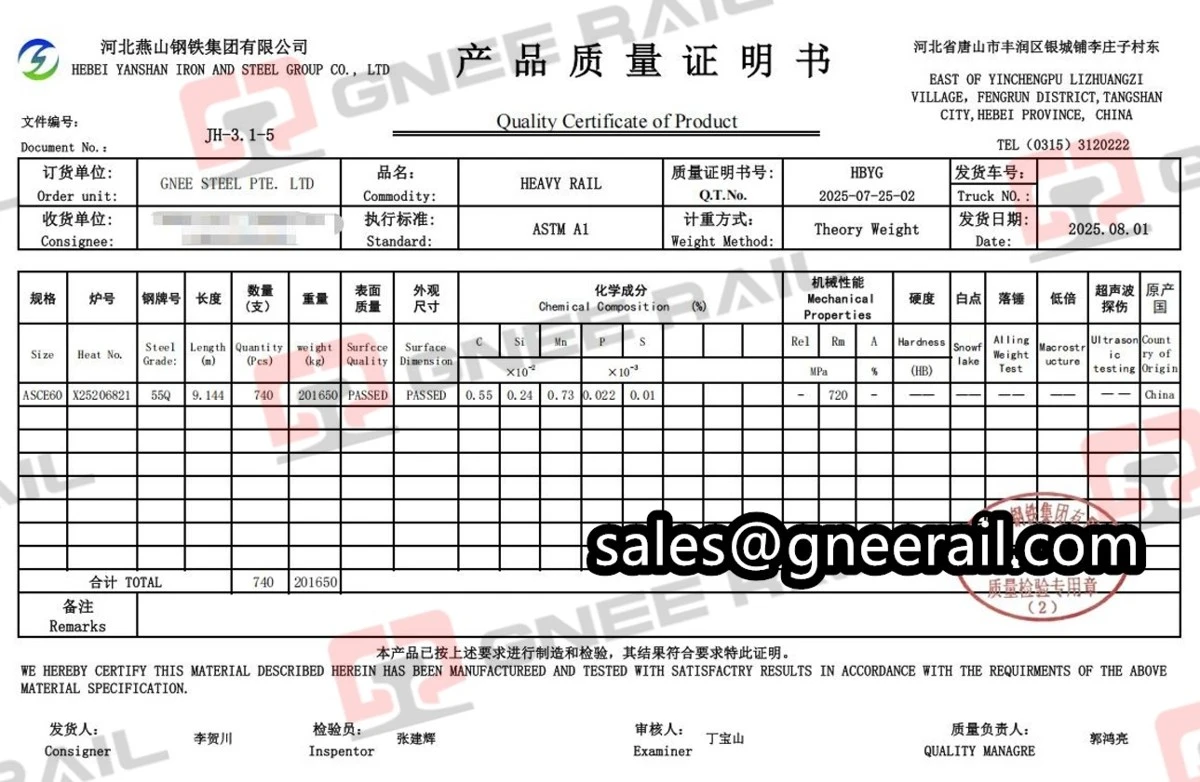

Mill certificate - MTC issued with chemical composition and mechanical properties.

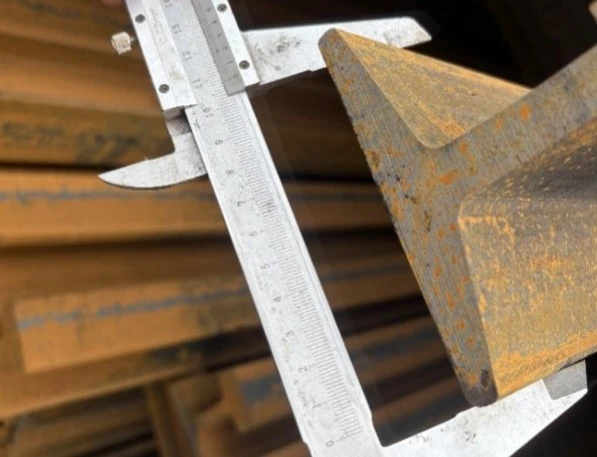

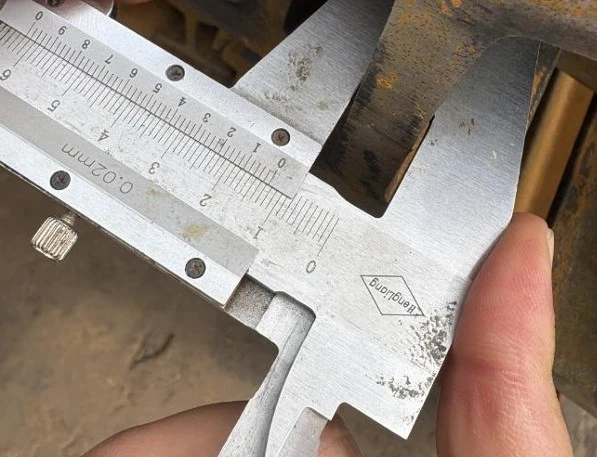

Every rail was dimension-checked with precision calipers (0.02 mm accuracy) before release. The mill test certificate (MTC) confirms chemical composition and mechanical properties - for this order, a tensile strength of 720 MPa - with surface quality and dimensional checks passed.
Request MTC Sample & Inspection Report
Logistics & Documentation
The cargo shipped from Qingdao, China (handled via Tianjin) on MV TS KWANGYANG to Manzanillo, Mexico - 105 packages, 80 CBM, 201,630 kg - under a telex-release bill of lading, freight prepaid.

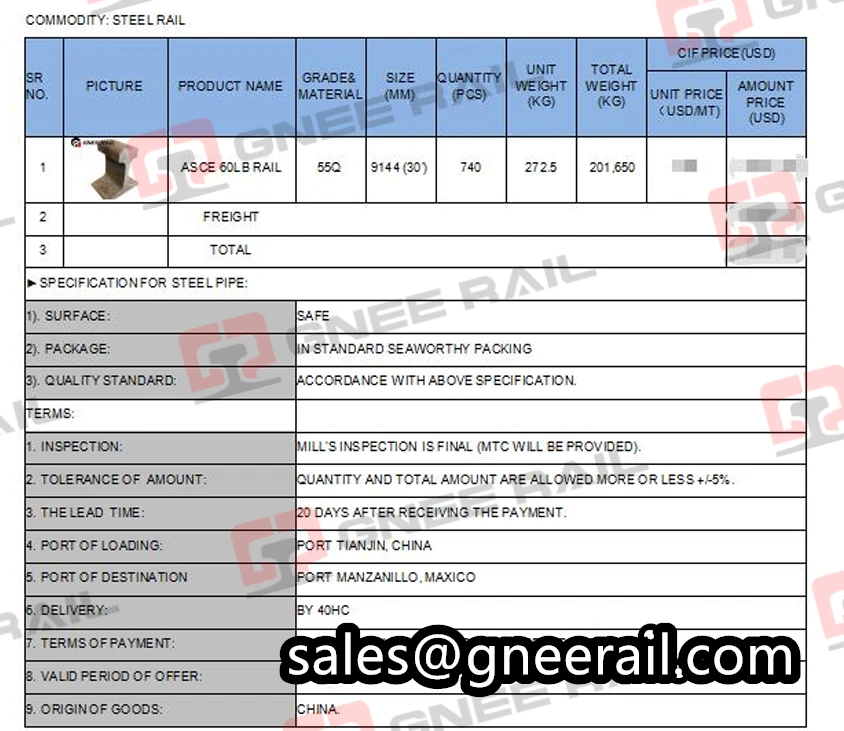

Proforma Invoice (PI) - product, quantity, price and full trade terms agreed before production.

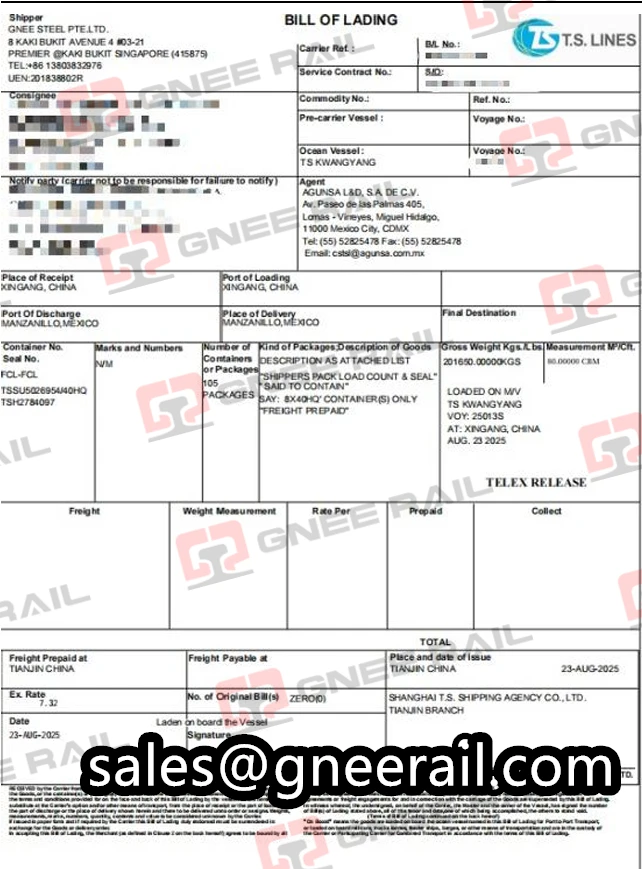

Bill of Lading (B/L) - telex release, freight prepaid, issued on loading.
Packing & Loading

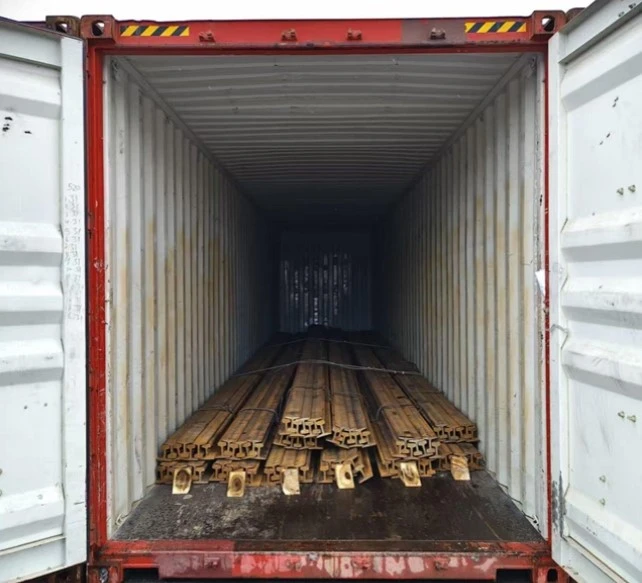

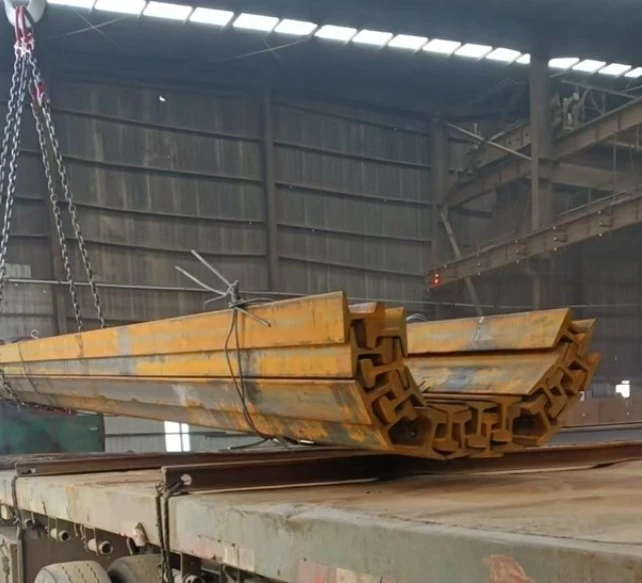

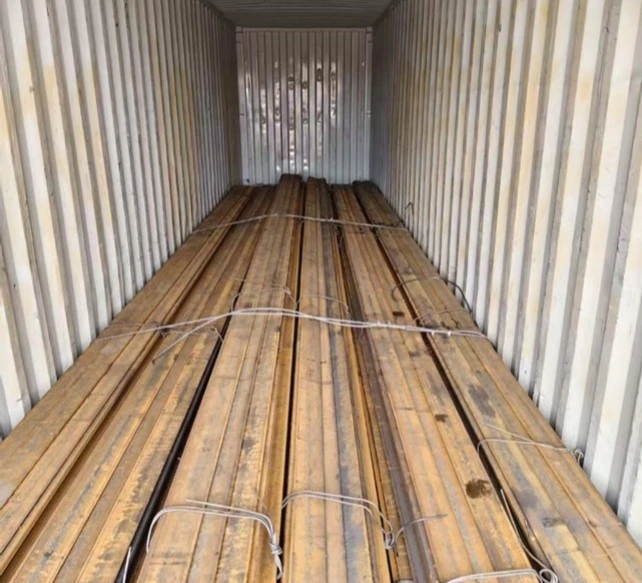

Rails were packed in standard seaworthy packing - bundled and strapped to protect surfaces during ocean transit, lifted with safe rigging and loaded into 40HC containers, then lashed in place for the voyage.
|
Item |

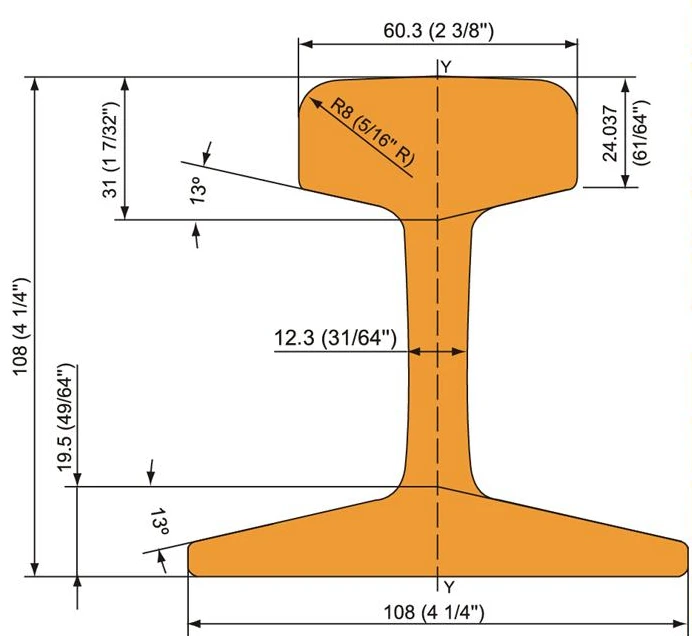

ASCE 60 Steel Rail Specification |
|---|---|
|
Rail Type |
ASCE 60 Steel Rail |
|
Rail Standard |
ASCE Profile; ASTM A1 where specified |
|
Nominal Weight |
60 lb/yd (29.76 kg/m) |
|
Cross-Sectional Area |
Approx. 38.39 cm² |
|
Overall Height |
107.95 mm |
|
Base Width |
107.95 mm |
|
Maximum Head Width |
60.32 mm |
|
Head Top Flat Width |
45.6 mm |
|
Web Thickness |
12.30 mm |
|
Lower Base Edge Dimension |
7.1 mm |
|
Base Inclined Profile Dimension |
19.7 mm |
|
Moment of Inertia |
Approx. 606 cm⁴ |
|
Head Section Modulus |
Approx. 108.5 cm³ |
|
Base Section Modulus |
Approx. 116.35 cm³ |
|
Theoretical Weight per 6 m |
178.56 kg |
|
Theoretical Weight per 8 m |
238.08 kg |
|
Theoretical Weight per 10 m |
297.60 kg |
|
Steel Grade |
As specified in the purchase order |
|
Rail Length |
Available lengths subject to supplier confirmation |
|
Chemical Composition & Mechanical Properties |
According to the specified steel grade and applicable standard |
|
Inspection & Certification |
Dimensional inspection and MTC as agreed |
|
Notes |
Local profile dimensions and section properties should be confirmed against the manufacturer's approved drawing |
ASCE 60 vs ASCE 75 / 85 / 100 and UIC Rails
Not sure which profile your project needs? Here is a quick reference across the rail profiles we supply.
|
Rail profile |
Weight (approx.) |
Typical applications |
|
ASCE 60 |
60 lb/yd ≈ 29.8 kg/m |
Industrial tracks, mining, yard and light railway lines |
|
ASCE 75 |
75 lb/yd ≈ 37.2 kg/m |
Industrial sidings, crane rails, light mainline |
|
ASCE 85 |
85 lb/yd ≈ 42.2 kg/m |
Branch lines, medium-duty mainline |
|
ASCE 100 |
100 lb/yd ≈ 49.6 kg/m |
Mainline, heavier axle loads |
|
UIC 54 |
≈ 54.5 kg/m |
Mainline projects - Europe, Asia and global rail networks |
|
UIC 60 |
≈ 60.3 kg/m |
High-speed and heavy-haul mainline |
All profiles are available with matched grades, custom lengths, bolt-hole drilling and accessories.
Why Choose GNEE Rail
Direct mill supply
we source straight from steel mills, so quality is stable and pricing stays competitive - no middle layers.
In-house QC & inspection
MTC as standard; third-party inspection (SGS, BV, Intertek) arranged on request.
Export documentation expertise
PI, MTC, B/L, commercial invoice and packing list handled correctly, every shipment.
On-time delivery
20-day lead time achieved on this order; schedules are committed in writing.
Flexible trade terms
CIF, FOB or CFR; TT or LC payment, tailored to how you buy.
Full traceability
rolled marking plus MTC ties every rail to its heat and standard from mill to site.
Related Cases
166 Tons Of ASCE 40 Lb Rails For Peru
100RE Rail Supply For A Canadian Railway Project
Related Railway Products & Supply Capabilities
In addition to railway steel rails, we can also review supply requirements for rail joint bars (fishplates), railway fasteners, and complete rail fastening systems.
These products are often specified together for track construction, maintenance, and replacement projects. Supplying multiple railway material categories through one supplier can simplify specification communication, quotation, and order coordination.
Railway Product Categories
| Category | Standard / Type | Available Sections |
|---|---|---|
| Steel Rail | ASCE / AREMA (US) | 25, 30, 40, 60, 75, 85, 100, 115, 132, 136, 140 lb/yd |
| GB (China) | Light: 8, 12, 15, 18, 22, 24, 30 kg/m;Heavy: 38, 43, 50, 60, 75 kg/m | |
| BS (UK) | 75R, 80R, 90R, 100A, 110A, 113A, 119R, 136A, 141R | |
| UIC (Intl.) | UIC 50, UIC 54, UIC 60 | |
| JIS (Japan) | 15kg, 22kg, 30kg, 37kg, 40N, 50N, 60kg | |
| DIN / EU | S7, S10, S14, S18, S20, S30, S49, S54 | |
| Crane Rail | QU70, QU80, QU100, QU120;A45, A55, A65, A75, A100, A120 | |
| Fish Plate | Rail Joint Bar | Matched to all above rail sections;standard & insulated |
| Fastening System | Elastic Rail Clip | E-clip (E1609/E1809/E2007), SKL clip (SKL1/12/14), Type I/II/III clip, Nabla, Deenik |
| Rail Fastener | Fish bolt, track bolt, hex nut, spring/flat washer | |
| Rail Spike | Screw spike, dog spike | |
| Rail Pad & Component | Rubber rail pad, HDPE isolator, plastic shoulder, rail anchor, insulated joint |
Product availability, compatibility, and supply scope depend on the project specifications and required components.
For a complete fastening system, please provide the rail profile, sleeper type, fastening arrangement, and relevant drawings. This allows us to review the required components as a compatible system rather than as unrelated individual products.
FAQ
Q: Q1. What is ASCE 60 rail?
A: ASCE 60 is a 60 lb/yd rail profile defined under the AREMA / ASCE standard, widely used for industrial, mining and light railway lines.
Q: Q2. What grades do you supply for ASCE 60?
A: Grades 55Q, 70Q and other grades per standard. This order used grade 55Q, a medium-carbon rail steel with about 720 MPa tensile strength.
Q: Q3. What lengths are available?
A: From 6 m to 25 m, cut to specification. This order was 9.144 m (30 ft).
Q: Q4. What is the minimum order quantity?
A: Flexible - from one 40HC container up to full vessel loads.
Q: Q5. What is the lead time?
A: Typically 15–25 days after payment depending on quantity; this order was delivered in 20 days.
Q: Q6. Do you provide MTC and third-party inspection?
A: Yes. The mill test certificate (MTC) is provided as standard; third-party inspection such as SGS or BV is available on request.
Q: Q7. What are your payment terms?
A: TT, 30% advance with the balance before shipment; LC is accepted for large orders.
