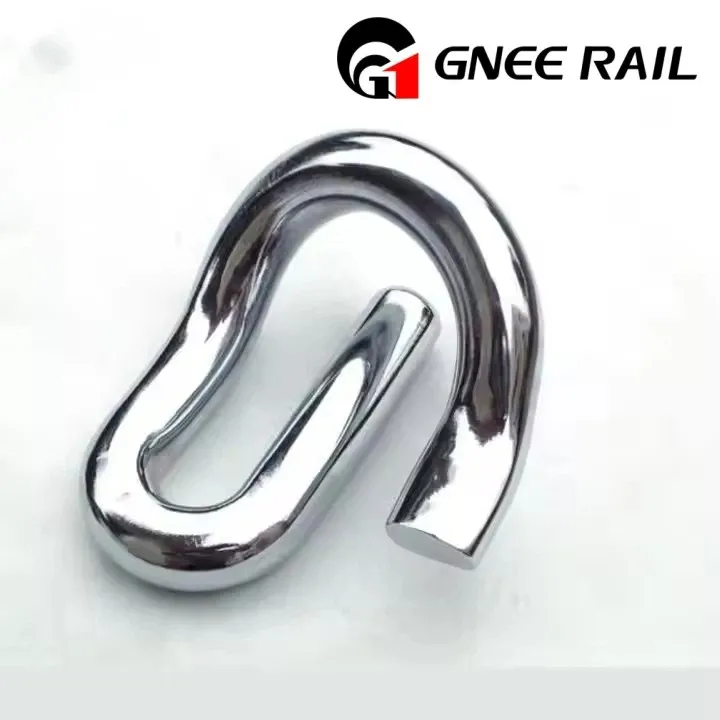

Customized Rail E Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail E Clip Fastening System

Railway E-Clips, named for their distinctive "E" shape profile, are elastic rail fasteners designed to secure rails to sleepers or baseplates through controlled spring action. These one-piece components function by generating clamping force through their engineered curvature, which creates both vertical pressure and lateral restraint when installed. Their three-point contact system-engaging the rail foot on one side and the shoulder on the baseplate on the other-provides consistent performance across temperature variations and dynamic loading conditions.

Technical Specifications:

Model Designation	Primary Application	Clamping Force Range (kN)	Fatigue Life Rating	Key Standards Compliance
E-1 Standard	Conventional mainline, mixed traffic	10.5-12.5	6×10⁶ cycles	EN 13481-2, UIC 864-5
E-2 Heavy Duty	Heavy-haul corridors, sharp curves	13.0-15.0	5×10⁶ cycles	AREMA Ch.30, EN 13481-3
E-3 Coastal	Marine environments, high humidity	10.0-12.0	7×10⁶ cycles	ISO 12944 C5-M, EN ISO 1461
E-4 Low-Profile	Restricted clearance applications	9.0-11.0	8×10⁶ cycles	EN 13481-4, tunnel specifications
E-5 Economy	Light rail, branch lines	8.5-10.5	4×10⁶ cycles	EN 13479, regional rail standards

Application Scenarios

Branch Line and Secondary Routes: Widely used in regional railway networks with lower traffic density and maintenance frequency, offering cost-effective performance with extended service intervals.

Industrial and Mining Sidings: Employed in heavy industrial environments where chemical exposure and particulate contamination are concerns, utilizing corrosion-resistant variants with enhanced protection.

Retrofit and Upgrade Projects: Frequently selected for modernizing older track systems due to their compatibility with existing concrete sleeper designs and straightforward installation process.

Maintenance & Operational Perspective

Selective Force Verification: Approximately 2-5% of clips in critical sections (curves, gradients, switch approaches) undergo periodic clamping force measurement using calibrated hydraulic or electronic gauges.
Condition-Based Replacement: Individual clip replacement is triggered by specific criteria: visible cracks >2mm, corrosion penetration exceeding 25% of material thickness, or measured clamping force dropping below 80% of nominal value.
Bulk Replacement Strategy: Systematic replacement of all clips on track sections during major maintenance windows (typically 15-25 year intervals), coordinated with rail or sleeper renewal programs.
