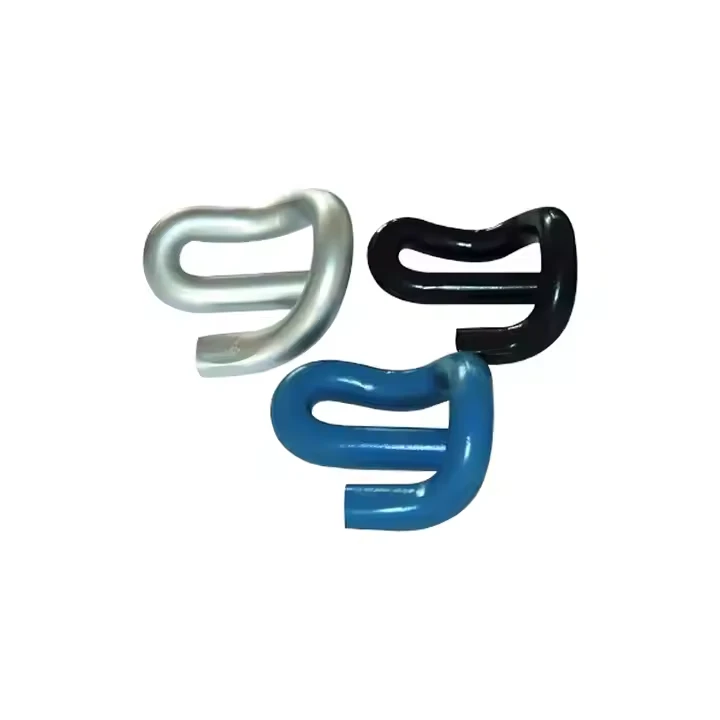

Customized Rail E Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail E Clip Fastening System

Railway E-Clips are precision-engineered elastic fasteners characterized by their distinctive "E" shaped profile. These single-piece components function as spring elements in rail fastening systems, generating and maintaining controlled clamping force through their engineered geometry rather than traditional bolt tension. When installed, the clip's three contact points create a balanced force distribution: the central bend applies downward pressure while the ends engage the rail foot and baseplate shoulder.

Technical Specifications:

Model Series	Target Application	Clamping Force (kN) @ 20°C	Temperature Range (°C)	Special Certification	Key Performance Feature
Eclipse XT-9	Extreme Temperature Zones	12.5-14.0	-55 to +85	GOST R 55022 (Arctic)	Temperature-compensated alloy
MarineShield MS-7	Coastal/Marine Environments	11.0-12.5	-30 to +60	DNV-CG-0284	Ceramic-enhanced coating
QuietTrack QT-12	Urban Noise-Sensitive Areas	10.5-12.0	-25 to +70	ISO 3095:2013 Class A	Optimized vibration damping
SeismicSafe SS-8	Earthquake-Prone Regions	13.0-14.5	-40 to +75	ASCE 7-16 Compliant	Enhanced energy dissipation
AutoPort AP-10	Automated Terminal Tracks	14.0-15.5	-20 to +65	ISO 10845:2020	Anti-tamper design

Application Scenarios

High-Vibration Industrial Corridors: Installed along tracks adjacent to heavy manufacturing facilities where ground-borne vibrations from industrial machinery could compromise traditional fastening systems.

Coastal Electrified Networks: Specifically engineered for seaside railways with overhead electrification, combining corrosion resistance with electrical isolation properties for track circuit integrity.

Automated Container Terminal Tracks: Utilized in fully automated port facilities where tracks must withstand constant heavy equipment traffic while maintaining precise alignment with minimal human maintenance access.

Maintenance & Operational Perspective

Autonomous Inspection Systems: Track-mounted robotic systems equipped with LiDAR and high-resolution cameras perform millimeter-accurate geometric assessments and surface defect detection during operational hours.
Embedded Micro-Sensor Networks: Select clips in critical locations contain miniature wireless sensors that monitor clamping force in real-time, transmitting data to centralized maintenance management platforms.
Machine Learning-Based Failure Prediction: AI algorithms analyze historical failure patterns, environmental sensor data, and traffic composition to predict individual clip failure probabilities with 85-92% accuracy.
