↵Rail Anchor Fastening System

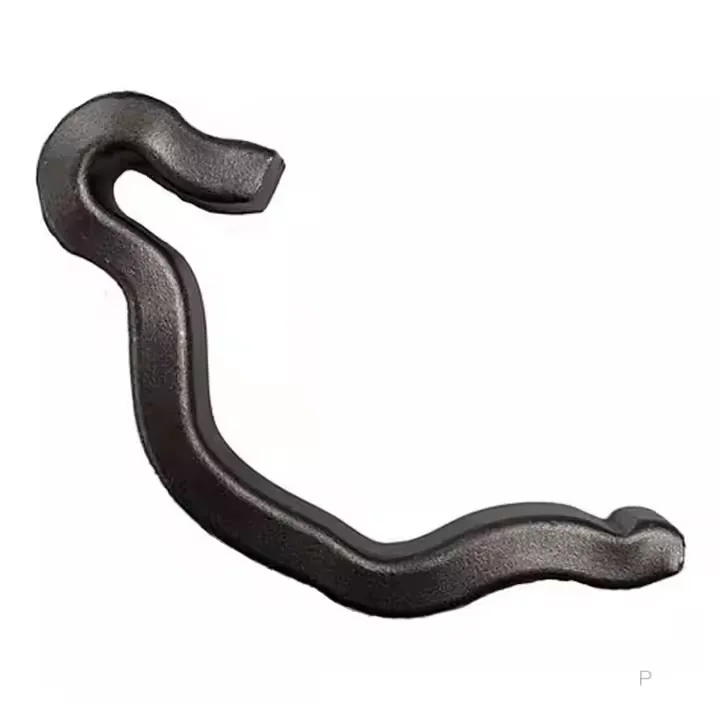

A Railway Anchor, often called an anti-creep anchor or rail anchor, is a critical component in track stabilization systems designed to combat longitudinal rail movement (creep). It is a steel forging or casting that is mechanically clamped onto the rail base (foot) without penetrating it, bearing against the sleeper's side or shoulder. Unlike fastening devices that secure the rail vertically, the anchor functions horizontally, creating friction and mechanical resistance against unwanted longitudinal displacement of the rail caused by train acceleration, braking, and thermal forces. Its design ensures it remains effective while allowing for normal vertical and some lateral movement of the rail within the fastening system.
Technical Specifications:
| Perspective | Primary Function | Critical Performance Feature | Key Maintenance Action | Failure Indicator | Lifecycle Determinant |
|---|---|---|---|---|---|
| Utility | Resist Longitudinal Rail Movement | Friction at rail foot & bearing on sleeper | Verify bearing contact and tightness | Visible gap from sleeper, rail movement | Loss of gripping force or bearing surface |
| Production | Dimensional Precision in Gripping Zones | Consistency of jaw profile and bearing face | Hardness balance between wear resistance and toughness | Wear patterns on jaws or bearing face | Material fatigue or excessive wear at contact points |
| Maintenance | Sustained Positioning and Contact | Maintenance of designed creep resistance pattern | Re-driving loose anchors; checking installation pattern | Anchor "riding up" the rail foot or cracking | Wear measurement and alignment with track renewal cycles |
Functional & Engineering Perspective
Non-Invasive Rail Attachment: It clamps onto the rail without drilling or welding, preserving the rail's structural integrity and allowing for installation, adjustment, or removal without damaging the rail section.
Thermal Expansion Management: By resisting creep, it helps ensure that thermal expansion and contraction occur symmetrically around a neutral point, preventing uneven stress build-up and potential track buckling.
Load Distribution: In conjunction with the fastening system, it helps distribute longitudinal forces from trains over multiple sleepers, reducing point loads and protecting both the rail and sleepers from concentrated damage.
Maintenance & Operational Perspective
- Controlled Hardness and Toughness: The material is heat-treated to achieve a specific hardness profile: the jaws must be hard enough to resist wear but not brittle, while the body retains toughness to withstand impact without cracking.
- Consistency in Spring Action: For designs with an integrated spring clip (e.g., "Johnson-type" combined clip/anchor), the production process must consistently achieve the correct spring rate and clamping force in addition to the anchor geometry.
- Surface Treatment for Corrosion and Wear: The finished anchor receives surface treatments such as galvanizing, phosphate coating, or specialized paint to resist corrosion and reduce wear at the sleeper contact point, extending service life.
