Fasteners E Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail e clip Fastening System

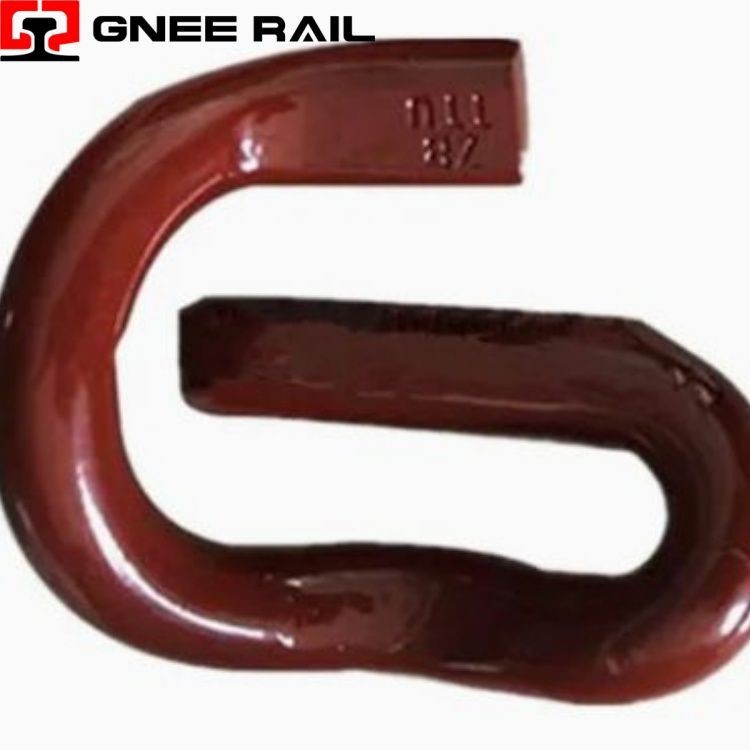

A Railway E Clip is a high-tensile, spring steel fastening component shaped like the letter "E", designed to secure railway rails to the underlying sleepers (ties) by fitting into a shoulder cast in the sleeper and pressing against the rail foot, providing essential longitudinal and lateral restraint while dampening dynamic loads.

Technical Specifications:

Parameter	Specification	Benefit
Material	Spring Steel (e.g., 60Si2Mn / C45)	High yield strength for elastic recovery.
Standard Type	E-clip (e.g., 'E' 2002, 'E' 2009 variants)	Compatible with international rail systems.
Finish	Anti-corrosion coating (Epoxy/Zinc)	Resists rust in harsh weather conditions.
Toe Load	Typically 6 kN - 9 kN (per clip)	Sufficient clamping force to prevent creep.
Deflection	Approx. 2mm - 5mm under load	Absorbs dynamic impact from passing trains.

Installation & Maintenance Perspective

Installation & Maintenance Perspective:

Tool-Free Engagement: Engineered for rapid installation and removal using a simple pinch bar or hammer, significantly reducing track maintenance time.

Consistent Toe Load: Manufactured to precise tolerances to ensure a consistent clamping force (toe load) on the rail foot across thousands of clips.

Tamper-Resistant: The low-profile "E" shape sits flush against the sleeper shoulder, making it difficult to dislodge accidentally while remaining accessible for maintenance.

Maintenance & Operational Perspective

Elastic Deflection: Functions as a powerful spring, flexing under load to absorb train vibrations and impact forces, protecting the sleeper and ballast.
High Clamping Force: Provides superior longitudinal creep resistance, preventing the rail from shifting or "walking" under heavy traffic or thermal expansion.
Fatigue Resistance: Manufactured from spring steel and heat-treated to withstand millions of load cycles without plastic deformation or breakage.
