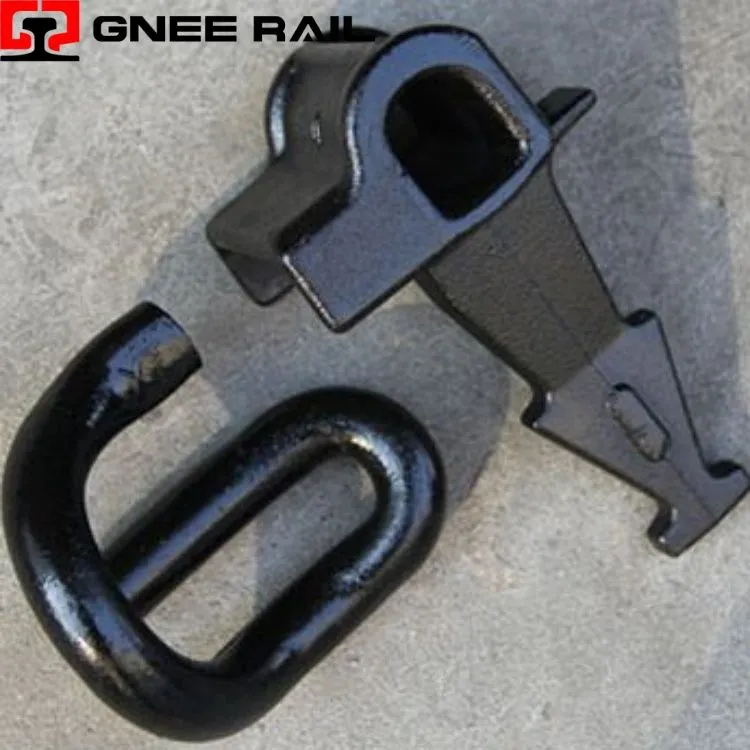

High Tensile E Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Rail E Clip Fastening System

The Railway E-Clip is a forged spring steel fastener with a distinctive epsilon-shaped geometry engineered for concrete sleeper track systems. This clip operates through elastic deflection, converting installation force into sustained clamping pressure on the rail foot. Its closed-loop design ensures positive retention within cast-in shoulders while accommodating thermal expansion and dynamic loading. Manufactured through precision hot-forming and heat treatment, it delivers consistent performance across mainline, high-speed, and heavy-haul applications worldwide.

Technical Specifications:

Parameter	Specification	Performance Indicator
Geometric Type	Epsilon-shaped, closed-loop	Captive retention design
Material	Spring steel, hot-forged	Bainitic microstructure
Clamping Force	Per clip at rail foot	10–16 kN nominal range
Corrosion Protection	Zinc-aluminum flake coating	>1,000 hours salt spray
Service Life	Mainline application	25–35 years typical

Installation & Maintenance Perspective:

The closed-loop heel geometry creates a captive engagement with the shoulder pocket, preventing ejection under high-frequency vibration or lateral impact.
Precision-formed bend radii distribute stress evenly across the clip body, eliminating localized concentration points that could initiate fatigue cracking.
The symmetrical arm configuration ensures balanced clamping force on both sides of the rail foot, maintaining consistent gauge retention.

Maintenance & Operational Perspective

Hot-forging aligns grain structure with the clip's stress trajectory, creating uninterrupted load paths that maximize fatigue resistance.
Controlled austempering heat treatment develops a bainitic microstructure that balances hardness with fracture toughness for impact resistance.
Full-coverage shot peening induces compressive residual stresses that close microscopic surface defects and retard crack propagation.
