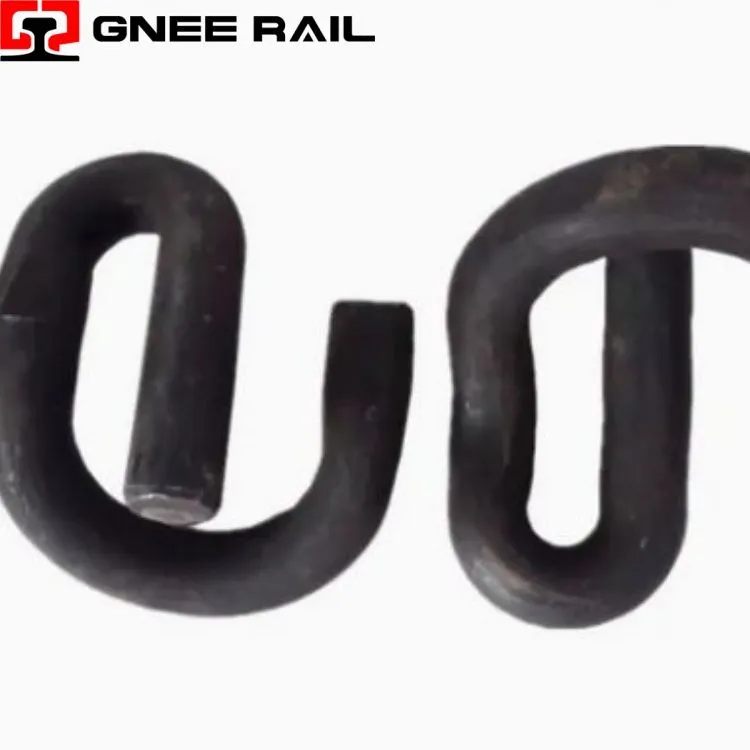

High Tensile E Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Rail E Clip Fastening System

The Railway E-Clip is a resilient spring fastener manufactured from silicon-manganese spring steel, featuring a distinctive epsilon-shaped geometry for concrete sleeper track systems. This clip operates through elastic deformation, storing mechanical energy during installation that translates into sustained clamping force on the rail foot. Its closed-loop design ensures positive retention within cast-in shoulders while accommodating thermal rail movement and dynamic loading from passing trains.

Technical Specifications:

Parameter	Specification	Performance Indicator
Material Alloy	Silicon-manganese spring steel	60Si2Mn / 55Si7 equivalent
Heat Treatment	Quenched and tempered	42–48 HRC hardness range
Static Clamping Force	Per installed clip	11–15 kN typical
Fatigue Endurance	Cyclic loading capability	>5 million cycles at 3mm deflection
Coating System	Zinc-aluminum flake	1,500 hours salt spray resistance

Installation & Maintenance Perspective:

The clip exhibits a progressive spring rate, providing compliant response under normal loads while delivering firm restraint during extreme rail displacement events.
Energy storage capacity is optimized through geometric configuration, maximizing clamping force without exceeding material elastic limits.
Dynamic load testing confirms consistent performance through millions of loading cycles without measurable force relaxation.

Maintenance & Operational Perspective

Advanced zinc-aluminum flake coating provides sacrificial protection with self-healing properties at coating damage sites.
Multi-layer application includes a base coat for adhesion and a top coat for enhanced chemical resistance and lubricity.
Accelerated weathering validation confirms coating integrity through 1,500 hours of cyclic salt spray and UV exposure.
