Rail E Clip Fastening System

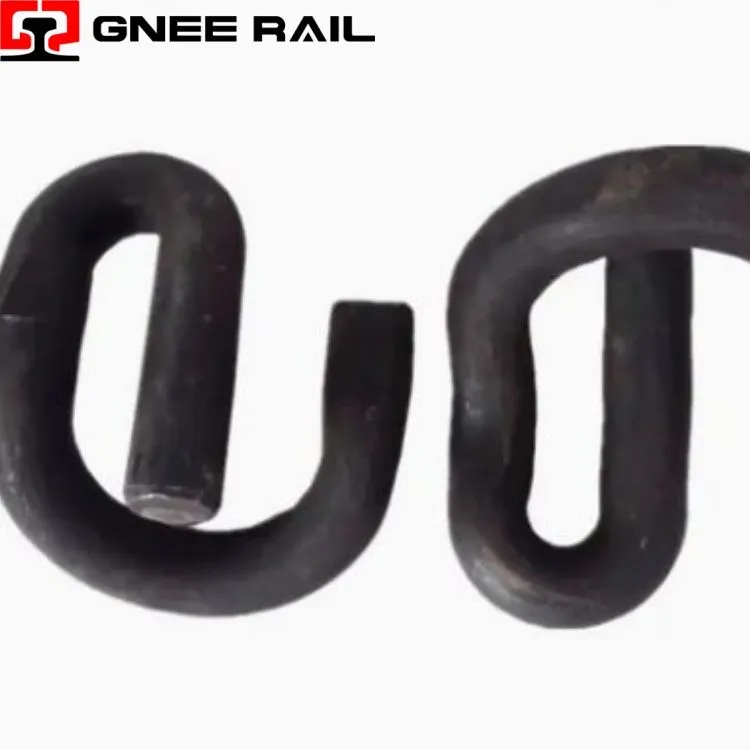

The Railway E-Clip is a resilient spring fastener with a distinctive epsilon-shaped geometry, engineered for concrete sleeper track systems. Manufactured from high-grade spring steel through precision forming and heat treatment, it provides sustained clamping force through elastic deflection. The closed-loop design ensures positive retention within cast-in shoulders, delivering reliable rail restraint for high-speed, heavy-haul, and mass transit applications worldwide .
Technical Specifications:
| Parameter | Specification | Performance Indicator |
|---|---|---|
| Geometric Shape | Epsilon (ε) profile | Three-zone stress distribution |
| Material Grade | 60Si2Mn / 55Si7 spring steel | 42-48 HRC hardness |
| Clamping Force | 11-15 kN per clip | <15% relaxation after 5M cycles |
| Elastic Deflection | 18-22 mm vertical movement | Accommodates track settlement |
| Corrosion Protection | Zinc-aluminum flake coating | >1,000 hours salt spray |
| Fatigue Life | >5 million cycles | EN 13146-4 certified |
Installation & Maintenance Perspective:
- The epsilon (ε) shape creates a multi-radius spring that distributes bending stress across three distinct flexure zones .
- The closed-loop heel geometry positively locks into the shoulder pocket, preventing ejection under high-frequency vibration .
- Progressive spring stiffness provides compliant response under normal loads while delivering firm restraint during extreme rail displacement .
- The symmetrical arm configuration ensures balanced clamping force on both sides of the rail foot for consistent gauge retention .
Maintenance & Operational Perspective
- Silicon-manganese spring steel (60Si2Mn / 55Si7) provides the hardness-toughness balance required for cyclic loading .
- Hot-forming aligns grain structure with the clip's stress trajectory, creating uninterrupted load paths for enhanced fatigue life .
- Controlled quenching and tempering achieves 42-48 HRC hardness with uniform microstructure throughout the cross-section .
