Rail e CLIP Fastening System

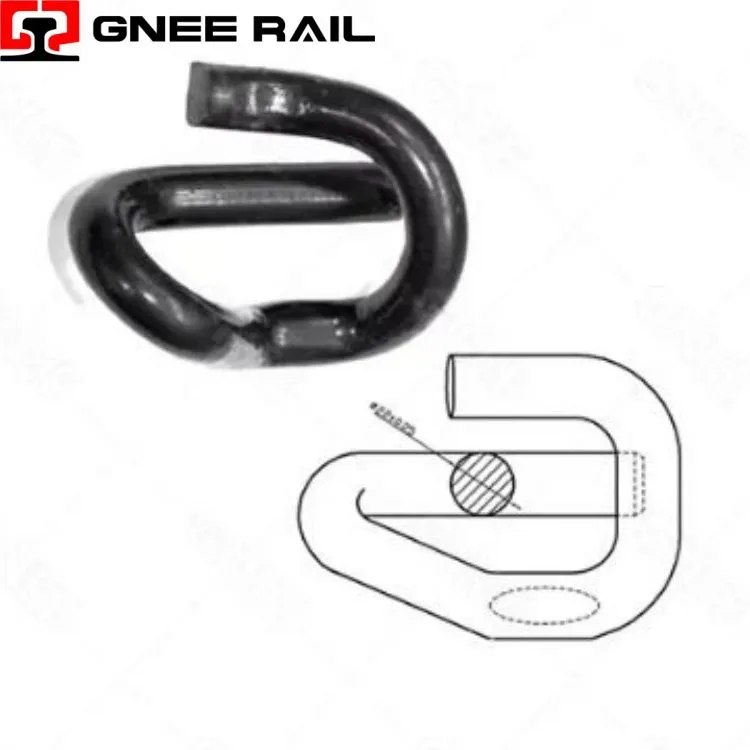

The Railway E-Clip is a pre-tensioned, constant-force spring fastener manufactured from quenched and tempered spring steel, distinguished by its closed-loop geometric configuration that forms a distinct "E" profile when viewed in section. Engineered for integration with cast-in shoulders on concrete sleepers, this fastener utilizes a cantilever spring principle where the clip body is elastically deformed during installation to store mechanical energy that translates into sustained downward pressure on the rail foot.
Technical Specifications:
| Attribute | Technical Detail | Performance Indicator |
|---|---|---|
| Spring Principle | Cantilever with closed-loop retention | Elastic energy storage through deflection |
| Material Standard | Spring steel per EN 10089 or equivalent | 1,300 – 1,600 MPa tensile strength |
| Installation Force | Lever-operated insertion | 200 – 400 N manual effort |
| Static Clamping Load | Per rail seat (2 clips) | 18 – 28 kN total |
| Quality Certification | Industry standards | ISO 9001, EN 13481 series compliance |
Installation & Maintenance Perspective:
- Positive Mechanical Lock: The closed-loop heel geometry engages with a corresponding recess in the cast-in shoulder, creating a positive mechanical interlock that prevents the clip from ejecting under high-frequency vibration or sudden lateral impact.
- Pivot Point Stability: The heel-to-shoulder interface functions as a fixed pivot during installation and service, ensuring that the clamping force vector remains consistent throughout the clip's elastic range.
- Wear Compensation: The shoulder contact surfaces are designed with generous radii that accommodate minor wear over time without altering the clip's installed geometry or clamping characteristics.
Maintenance & Operational Perspective
- Wide Operating Range: The spring steel alloy and heat treatment parameters are selected to maintain consistent elastic properties across the -40°C to +70°C temperature spectrum encountered in global railway operations.
- Thermal Expansion Coordination: The clip geometry accommodates differential thermal expansion between steel rail, concrete sleeper, and the clip itself without inducing additional stress that would affect clamping force stability.
- UV Radiation Resistance: The corrosion protection system includes UV-stable topcoats that prevent degradation of coating integrity in exposed track sections where sunlight accelerates material aging.
