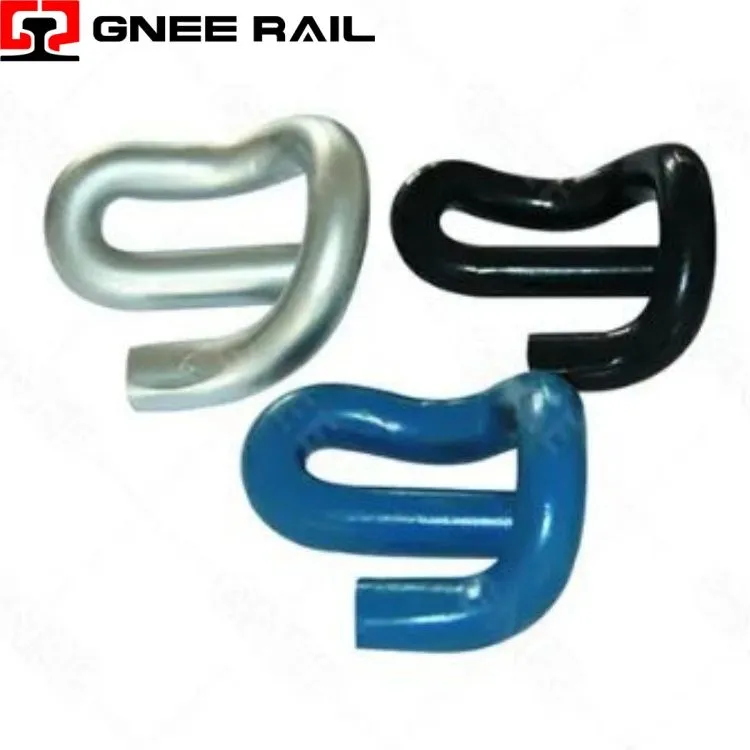

Rail e CLIP Fastening System
The Railway E-Clip is a three-dimensional spring fastener characterized by its distinctive epsilon-shaped geometry, manufactured from high-grade silicon-manganese spring steel through precision cold-forming and thermal treatment processes. This fastener operates on a combined bending-torsion principle, where the central curved section functions as a flexible hinge while the outer arms transmit clamping force to the rail foot through strategically positioned contact points.
Technical Specifications:
| Parameter | Specification | Performance Characteristic |
|---|---|---|
| Spring Configuration | Epsilon-shaped, three-dimensional | Combined bending-torsion operation |
| Alloy Designation | Silicon-manganese spring steel | 55Si7 / 60Si2Mn / equivalent |
| Clamping Force | At rail foot, installed condition | 11 – 16 kN (variant dependent) |
| Maximum Deflection | Elastic range | 18 – 22 mm vertical displacement |
| Corrosion Protection | Zinc-aluminum flake coating | > 1,000 hours salt spray resistance |
Installation & Maintenance Perspective:
- Three-Dimensional Load Path: The epsilon geometry creates a non-planar spring configuration where the load vector shifts from vertical at the shoulder engagement to horizontal at the rail contact, enabling efficient force transmission through the clip body.
- Multiple Flexure Zones: Three distinct bending zones-crown, central arch, and toe arms-work in sequence during deflection, distributing strain across the clip length rather than concentrating stress at a single hinge point.
- Progressive Stiffness Characteristic: The geometric configuration generates a non-linear force-deflection curve where stiffness increases progressively with deflection, providing compliant response under normal loads and firm restraint under extreme displacements.
Maintenance & Operational Perspective
- Controlled Quenching Process: Precision heat treatment using oil quenching followed by tempering achieves a uniform bainitic-martensitic microstructure that balances hardness with fracture toughness for impact-resistant performance.
- Shot Peening Coverage: Full-coverage shot peening at controlled intensities creates a compressive residual stress layer extending 0.2–0.4 mm below the surface, effectively closing microscopic surface defects that could serve as fatigue initiation sites.
- Hydrogen Embrittlement Mitigation: Strict post-plating baking protocols ensure complete hydrogen outgassing following corrosion protection application, preserving ductility in high-hardness spring steel.
