Rail e CLIP Fastening System

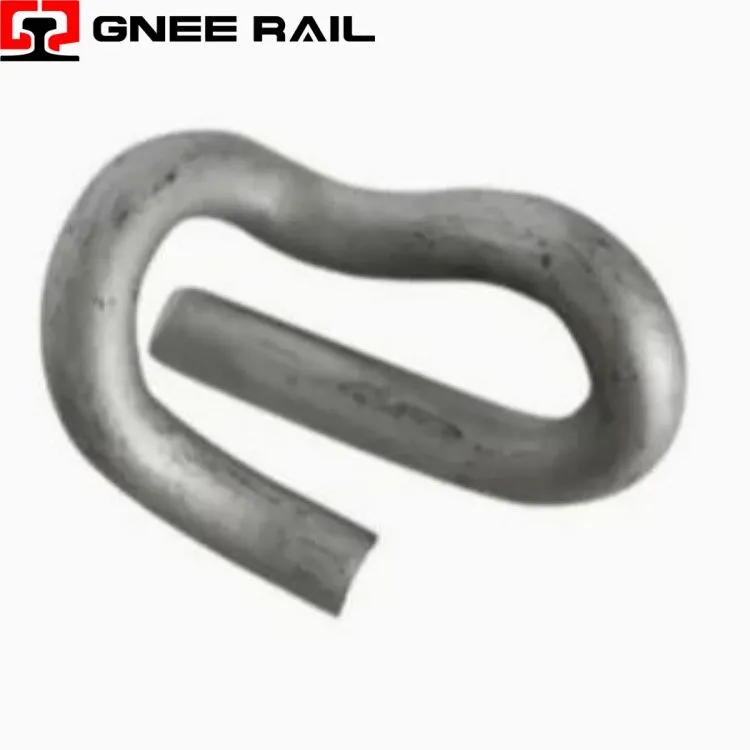

The Railway e-Clip is a resilient, cold-formed fastening component engineered to secure rail sections to baseplates or sleepers through a precision-bent wire profile. Operating on the principle of elastic energy storage, this clip converts applied deflection into sustained reactive force that counteracts the lateral, longitudinal, and vertical forces generated by passing trains. Its closed-loop or semi-closed geometry ensures self-containment, preventing ejection during sudden track dynamics. Designed for interoperability across diverse fastening systems, the e-Clip delivers consistent performance under varying track stiffness requirements while enabling rapid field replacement without specialized tooling.
Technical Specifications:
| Parameter | Specification | Value / Characteristic |
|---|---|---|
| Manufacturing Process | Cold forming (wire bending) | Induced work hardening |
| Nominal Diameter | Wire cross-section | 14 mm – 20 mm (application dependent) |
| Service Temperature | Operational range | -50°C to +70°C |
| Installation Method | Driven or lever insertion | 30 – 60 seconds per clip |
| Expected Service Life | Track environment | 20 – 35 years dependent on traffic density |
Installation & Maintenance Perspective:
- Closed-End Architecture: The looped or anchored end design ensures the clip remains securely seated within the cast-in shoulder, eliminating the risk of spontaneous dislodgment under high-frequency vibration.
- Optimized Bend Radius: Strategically positioned radii along the clip body reduce localized stress concentrations, promoting uniform stress distribution across the entire spring profile.
- Variable Arm Length: Asymmetric arm geometry allows differential force transmission-longer arms for deflection absorption, shorter arms for rigid anchoring to the sleeper housing.
Maintenance & Operational Perspective
- Fracture Containment: Engineered with residual retention features that physically trap broken fragments within the anchor housing, preventing projectile hazards during catastrophic failure.
- Overload Warning Indicator: Progressive deformation behavior provides visual cues-such as gap closure or arm spreading-alerting inspectors to excessive loading conditions before total failure occurs.
- Electrical Isolation Compatibility: Designed to interface seamlessly with composite insulators, maintaining track circuit integrity by preventing unintended current pathing through the clip body.
