Rail E Clip Fastening System

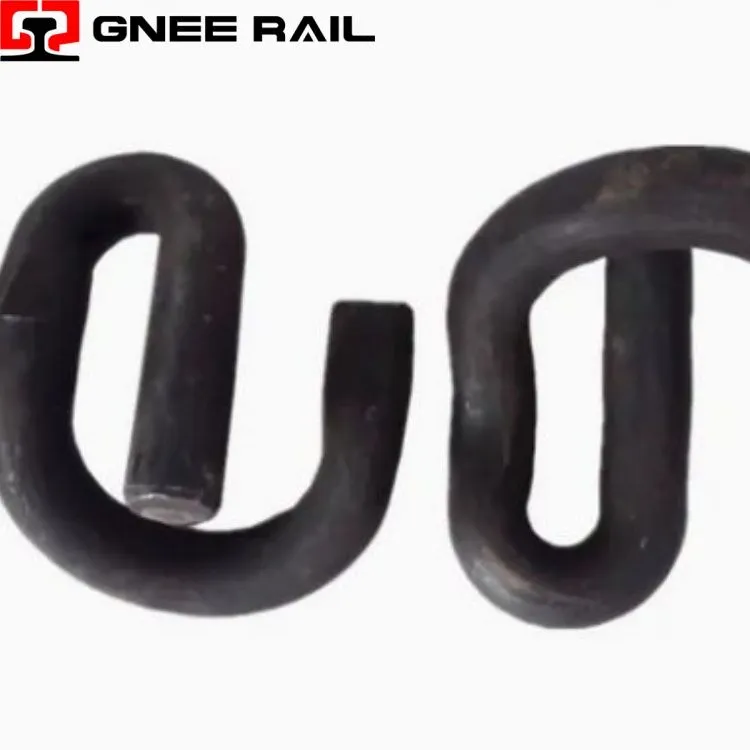

The Railway E-Clip is a spring steel fastener designed for concrete sleeper tracks. Its asymmetrical geometry generates consistent clamping force that secures rails while absorbing dynamic train loads. Heat-treated for high fatigue resistance, this clip maintains toe load without loosening under vibration. Installation requires a hydraulic applicator for uniform force application. Used globally on high-speed, freight, and metro lines, the E-Clip eliminates routine maintenance and ensures long-term track geometry stability.
Technical Specifications:
| Parameter | Value | Note |
|---|---|---|
| Material | 60Si2CrA | Spring steel |
| Hardness | 43 – 47 | HRC |
| Toe Load | 9.5 – 11.5 | kN |
| Deflection | 11 – 13 | mm |
| Fatigue Life | 3 million | cycles |
| Coating | Hot-dip galvanized | 85μm |
| Rail Types | 50E1, 54E1, 60E1 | UIC |
| Tool | Hydraulic applicator | Standard |
| Standard | EN 13481-4 | Compliant |
Installation & Maintenance Perspective:
- No re-tensioning reduces annual track inspection labor costs.
- Long service life lowers replacement frequency and material expense.
- Standard dimensions allow competitive multi-supplier bidding.
- Compact nesting cuts warehouse storage space requirements.
- Lower ownership cost compared to bolted or dog spike systems.
Maintenance & Operational Perspective
- Hydraulic applicator ensures consistent clamping force across all clips.
- Pre-assembly option reduces on-site labor for large track projects.
- Visual leg position confirms correct seating after installation.
- No torque wrench or gauge needed for quality verification.
- Removal tool extracts clip without damaging sleeper shoulder.
