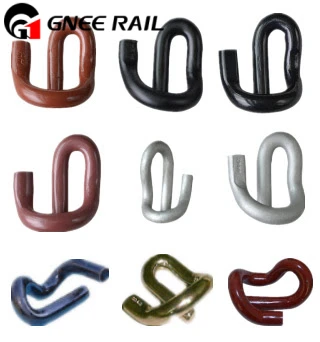

Railway Fasteners E Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Chemical Composition & Material-Related Performance

Model No.	Main Material	Chemical Composition (Mass Fraction, %)	Heat Treatment Process	Surface Treatment Type	Material Elasticity Recovery Rate (%)	Material Service Life (Years)	Core Material Advantage
E1609	60Si2MnA	C:0.56-0.64, Mn:0.60-0.90, Si:1.50-2.00, P≤0.03, S≤0.03, Cr≤0.35	Quenching + Tempering	Plain Oiled; Zinc Plated	≥92	8-10	Balances cost and basic elasticity for conventional lines
E1809	60Si2MnA	C:0.56-0.64, Mn:0.60-0.90, Si:1.50-2.00, P≤0.03, S≤0.03, Cr≤0.35	Quenching + Tempering	Dacro Coating; Oxygen Black	≥93	9-11	Corrosion resistance fits urban rail humid environment
E2007	60Si2MnA	C:0.56-0.64, Mn:0.60-0.90, Si:1.50-2.00, P≤0.03, S≤0.03, Cr≤0.35	Quenching + High-Temperature Tempering	Hot Dip Galvanized	≥94	10-12	High-temperature tempering enhances load-bearing capacity
E2009	60Si2CrA	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80, Cr:0.70-1.00, P≤0.03, S≤0.03	Quenching + Multiple Tempering	Dacro Coating	≥96	12-14	Chromium addition improves wear resistance for high-speed lines
E2055	55Si2Mn	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00, P≤0.03, S≤0.03, Cr≤0.35	Quenching + Stress Relieving	Color Painting; Zinc Plated	≥93	11-13	Stress relieving reduces fatigue in turnout complex stress

Maintenance Norms & Failure Judgment Standards

Model No.	Maintenance Cycle	Key Maintenance Items	Inspection Tool	Failure Judgment Criteria	Remedial Measure for Failure	Applicable Temperature Range for Maintenance	Compliance Maintenance Standard
E1609	6 months	Check for bend cracks; Test clamping force	Magnetic Particle Flaw Detector; Force Gauge	1. Cracks over 3mm; 2. Clamping force <500kgf	Replace with new clips; Recalibrate track geometry	-30℃~60℃	GB/T 1222; DIN 17221
E1809	6 months	Inspect corrosion; Verify lateral stability	Ultrasonic Detector; Ruler	1. Corrosion area >15%; 2. Lateral displacement >3mm	Derust and re-coat; Replace severely corroded clips	-35℃~70℃	BS 970; UIC Maintenance Norms
E2007	4 months	Check clamping force retention; Inspect anti-loosening status	Torque Wrench; Force Gauge	1. Clamping force loss >20%; 2. Loosening after 1M vibration cycles	Re-preload; Replace anti-loosening accessories	-40℃~68℃	AREMA Maintenance Standards
E2009	3 months	Detect fatigue cracks; Measure elasticity attenuation	Magnetic Particle Flaw Detector; Elasticity Tester	1. Fatigue cracks at bends; 2. Elasticity recovery <85%	Immediate replacement; Conduct batch inspection	-45℃~75℃	EN 13481; High-speed Rail Maintenance Specs
E2055	3 months	Check deformation; Test load-bearing capacity	Profile Gauge; Load Tester	1. Deformation >2.5mm; 2. Unable to bear 1100kgf load	Replace clips; Inspect matching turnout components	-40℃~72℃	RDSO Maintenance Guidelines
