Name: China Spring E Clip For Railway Track Manufacturers Suppliers Factory - Customized Service - GNEE RAIL
Brand: GNEE
SKU: 286035822

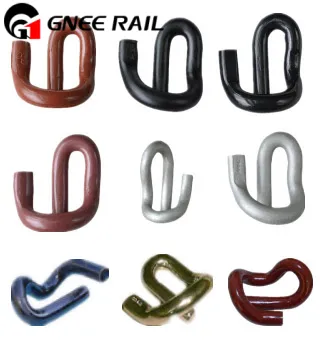

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Technical Specifications & Mechanical Performance

Model No.	Wire Diameter (mm)	Material Grade	Toe Load (kN)	Hardness (HRC)	Fatigue Life (Cycles)	Complying Standards	Core Performance Feature
E16-05	16	60Si2MnA	5.2-6.7	44-48	≥5,000,000	DIN 17221, UIC 864	Balanced elasticity for conventional lines
E18-08	18	60Si2CrA	7.8-9.2	45-49	≥6,000,000	AREMA, GB/T 1222	High tensile strength for heavy-load rails
E20-10	20	60Si2CrVA	11.5-14.0	46-50	≥7,000,000	EN 13481-2, ISO 683-1	Superior creep resistance for welded tracks
E17-06	17	55Si2Mn	6.5-7.9	43-47	≥4,500,000	JIS E 1107	Cost-effective with reliable fatigue resistance
E19-09	19	38Si7	8.5-9.8	42-46	≥5,500,000	BS 970	Thin-gauge design for narrow installation spaces

Application Scenarios & Installation Details

Model No.	Applicable Railway Type	Adaptable Axle Load (t)	Track Speed Limit (km/h)	Installation Tools	Surface Treatment	Maintenance Interval	Core Application Advantage
E16-05	Regional Passenger Lines	≤25	≤120	Manual Clip Pliers	Zinc Plating	12 Months	Ideal for low-to-medium traffic lines
E18-08	Heavy-Haul Freight Railways	≤35	≤80	Pneumatic Installer	Hot-Dip Galvanizing	9 Months	Resists rail creep under heavy loads
E20-10	High-Speed Railways	≤20	≤300	Hydraulic Clamping Tool	Dacromet Coating	6 Months	Stable clamping force for high-frequency vibration
E17-06	Urban Subways/Light Rail	≤18	≤80	Electric Installer	Oxide Black	15 Months	Noise-reducing for urban dense traffic
E19-09	Mountain Railways	≤22	≤100	Universal Pliers	Color Painting	10 Months	Strong lateral restraint for curved tracks

gnee-professional supplier

Spring E Clip for Railway Track
