↵Rail Fast Clip Fastening System

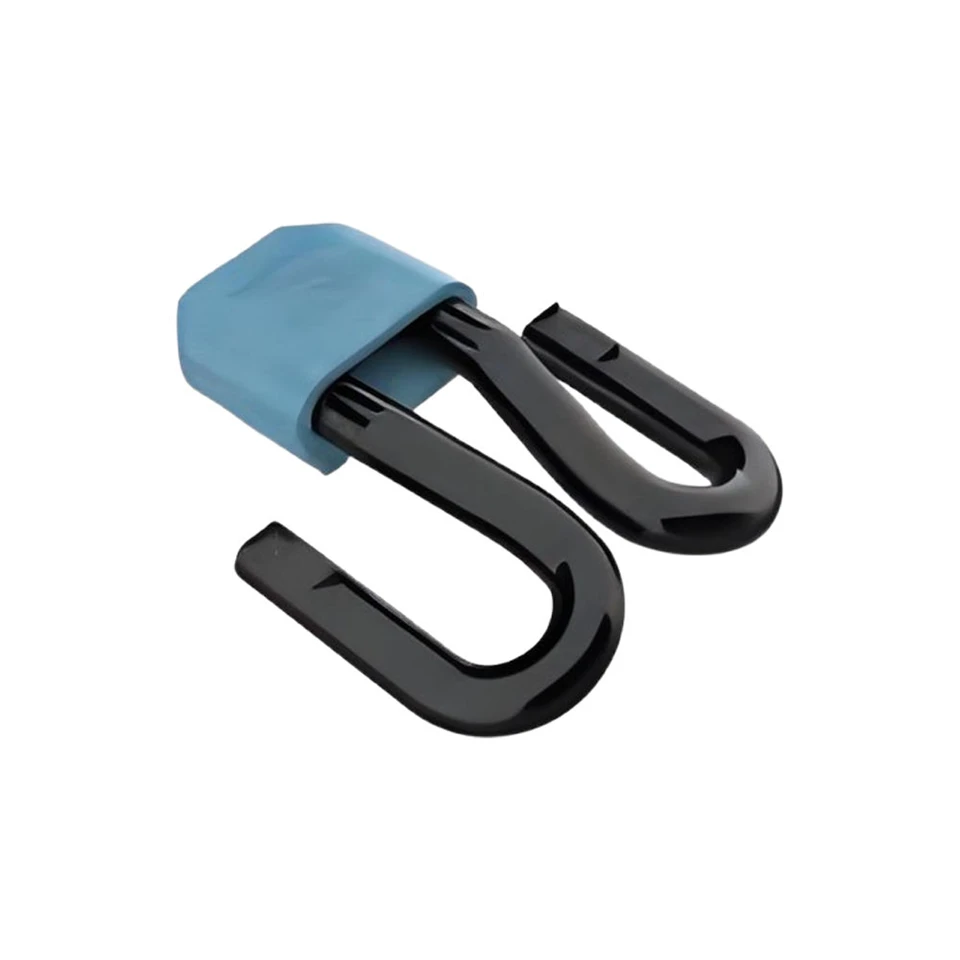

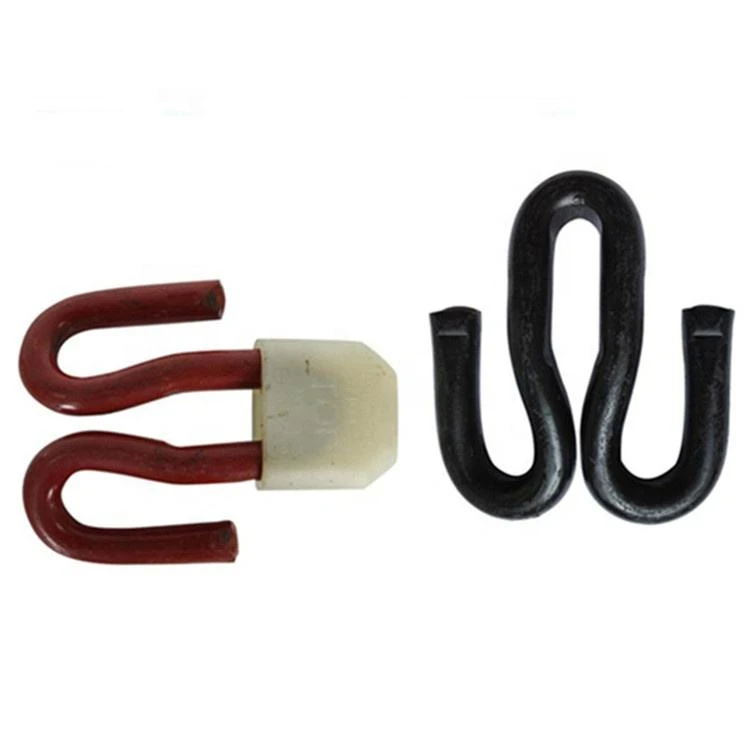

The Railway Fast Clip is a modern, high-performance elastic rail fastening system developed primarily for mainline and high-speed railway applications. Characterized by its simple two-component design (the clip itself and a rigid shoulder/spindle), it provides a reliable mechanical connection between the rail and concrete sleepers. Manufactured from high-quality spring steel and often featuring an epoxy coating, the Fast Clip is designed for efficient installation while maintaining consistent clamping force, vibration damping, and long-term fatigue resistance. Its optimized geometry ensures secure rail retention with minimal maintenance requirements, making it a preferred choice in ballasted track systems worldwide.
Technical Specifications:
| Aspect | Modern Fast Clip System | Traditional Rail Fastening | ||
|---|---|---|---|---|
| Installation Method | Hydraulic/pneumatic single-stroke installation | Manual hammering or multiple tool operations | ||
| Installation Speed | 600-800 clips/hour (automated) | 150-250 clips/hour (manual) | ||
| Corrosion Protection | Epoxy powder coating (200-300μm) | Galvanization or basic paint | ||
| Force Monitoring | Built-in visual indicators for installation check | Requires manual torque measurement or gauge tools | ||
| Component Complexity | 2-3 main components | 4-6+ components (clips, bolts, nuts, plates) | ||
| Maintenance Frequency | Inspection every 2-3 years | Annual inspection and adjustment often required |
Functional & Engineering Perspective
Optimized Stress Distribution: The clip's specific curved design ensures uniform stress distribution along its entire length, preventing localized stress concentrations that could lead to premature failure.
Controlled Elastic Deformation: Engineered to provide precise elastic behavior under dynamic loading, effectively absorbing vertical and lateral forces while maintaining constant toe load.
Superior Corrosion Protection: Typically features a thick epoxy powder coating (approximately 200-300μm) that provides exceptional resistance to chemical corrosion and mechanical abrasion.
Maintenance & Operational Perspective
- Reduced Lifecycle Costs: The combination of durable materials, corrosion protection, and minimal maintenance requirements results in lower total cost of ownership over decades of service.
- Installation Efficiency Gains: High installation speed (up to 600-800 clips per hour with automated machines) significantly reduces labor costs and track possession time during construction.
- Material Optimization: Advanced manufacturing techniques minimize material waste while maintaining structural integrity, contributing to resource efficiency and reduced environmental impact.
