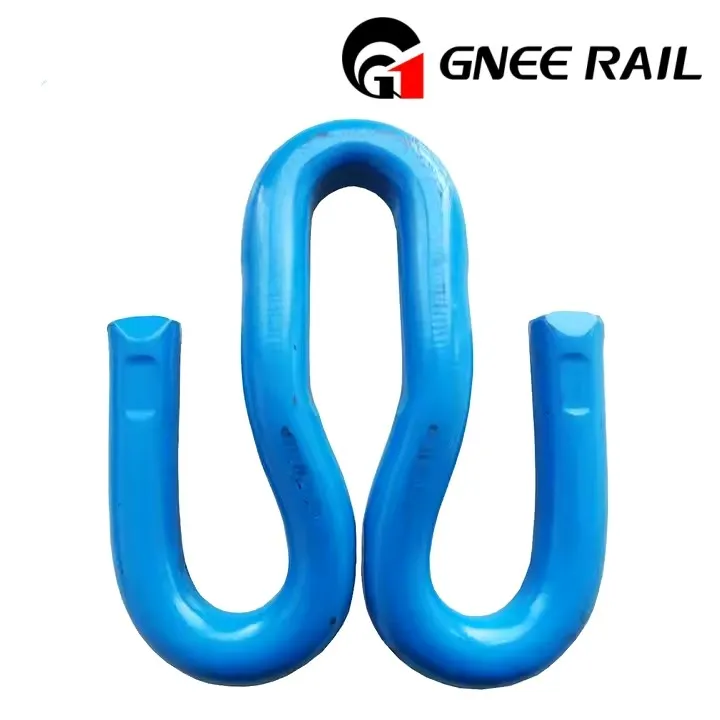

Railway Fast Clips 1600

The Fast Clip system by Pandrol is renowned for its innovative approach to rail fastening. The Rail Fast Clip 1600 is a boltless, high-elasticity fastening solution, offers secure installation, exceptional stability, and vibration resistance. It ensures durable rail-to-sleeper connections, making it ideal for efficient and low-maintenance track construction. GNEE Rail supplies an extensive range of fast clips, including Rail Fast Clip 16, 1500, 1501, 1502, 1306, 1508, 1504, 1600, and 1605. We also offer systems like Pandrol E Clip, SKL Clip, KPO Clamp, Nabla Clip, and Deenik Clip. Our products meet international standards and can be tailored to your specific requirements. Contact us for further details!

product-1200-800

Railway Fast Clips 1600 material specification

Item Name	Elastic Rail Clip
Type	Fast clip (16, 1500, 1501, 1502, 1306,1508,etc)
	E clip (e1809, e2006,e2007,e2009,etc)
	Or the type by customers' drawings
Material	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
Chemical composition(%)	C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	For e clip: 44-48HRC For skl clip: 42-47HRC
Fatigue life	for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking
Surface	plain (oiled), Oxide black, color painting, HDG, Zinc Plating...
Standard refers	DIN17221, BS970, GB/T1222

Railway Fast Clip 1600 technical parameters

Item No	Material	Diameter	Clip length	Clip width	Weight	HRC	Pressure	Fatigue Test
E1,E2,E3	60Si2Mn	ø18			0.8	44-48	≥9.5KN	5000000 times without break
E1609	60Si2Mn	ø18	93±3		0.43	44-48	≥9.5KN	5000000 times without break
E1809	60Si2Mn	ø18	104±3		0.62	44-48	≥9.5KN	5000000 times without break
E1817	60Si2Mn	ø18	104±3	37.5±3.0	0.62	44-48	≥9.5KN	5000000 times without break
E2001	60Si2Mn	ø18			0.6	44-48	≥9.5KN	5000000 times without break
E2007	60Si2Mn	ø18	105±5	38max	0.62	44-48	≥9.5KN	5000000 times without break
E2009	60Si2Mn	ø18	106±3	37.5	0.65	44-48	≥9.5KN	5000000 times without break
E2055	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2056	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2063	60Si2Mn	ø20	110.5	53.5	0.8	44-48	≥9.5KN	5000000 times without break
PR309	60Si2Mn	ø19	130		0.91	44-48	≥9.5KN	5000000 times without break
PR401	60Si2Mn	ø20	127±3	38.1±3.0	0.97	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø19			0.8	44-48	≥9.5KN	5000000 times without break
PR85	60Si2Mn	ø19	88±3		0.8	44-48	≥9.5KN	5000000 times without break
PR415	60Si2Mn	ø20			0.8	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø20				44-48	≥9.5KN	5000000 times without break
DI	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E18	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E19	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E20	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
SKL1	60Si2Mn	ø13	133±2.3		0.48	44-48	≥9.5KN	5000000 times without break
SKL3	60Si2Mn	ø13	120±2		0.48	44-48	≥9.5KN	5000000 times without break
SKL12	60Si2Mn	ø13			0.53	44-48	≥9.5KN	5000000 times without break
SKL14	60Si2Mn	ø13	155±2		0.53	44-48	≥9.5KN	5000000 times without break
Fast Clip-1508	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast clip-1501	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast Clip-16	60Si2Mn	ø16			0.6	44-48	≥9.5KN	5000000 times without break
