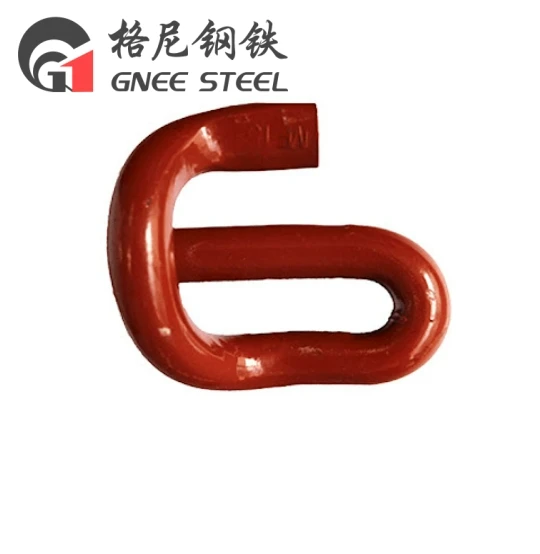

Rail E2001 Clips
Railway clips, also known as elastic rail clips, railway track clips, railroad rail clips, rail e-clips, or railway sleeper clips, are essential components used to secure rails to the underlying base, such as concrete sleepers or wooden ties.
E2001 Rail Clip features a diameter of Ø20 and weighs 0.80 kg per piece. It is engineered for robust rail fastening applications, ensuring reliable performance and durability in railway systems.
GNEE RAILWAY Rail offers an extensive range of railway clips tailored to diverse specifications and designed to meet your specific requirements. Please feel free to reach out to us to explore how we can assist with your custom rail clip needs.
Railway E2001 Clip Specification
|
Product Name |
Elastic Rail Clip E2001 |
| Brand | GNEE RAILWAY rail |
|
Raw Material |
60Si2MnA |
|
Diameter |
16mm |
|
Weight |
0.45Kg |
|
Hardness |
HRC44-48 |
|
Toe Load |
more than 600kgf |
|
Surface |
As customer's requirement |
| Fatigue |
5 million cycles without cracking |
|
Certification |
ISO9001:2015 |
|
Application |
Railway Fastening System |
Railway E2001 Clip Material Specification
| Series | Type | Hardness | Material | Fatigue life | Surface |
| E rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
| E1609 | |||||
| E1809 | |||||
| E1817 | |||||
| E2001 | |||||
| E2006 | |||||
| E2009 | |||||
| E2055 | |||||
| E2056 |

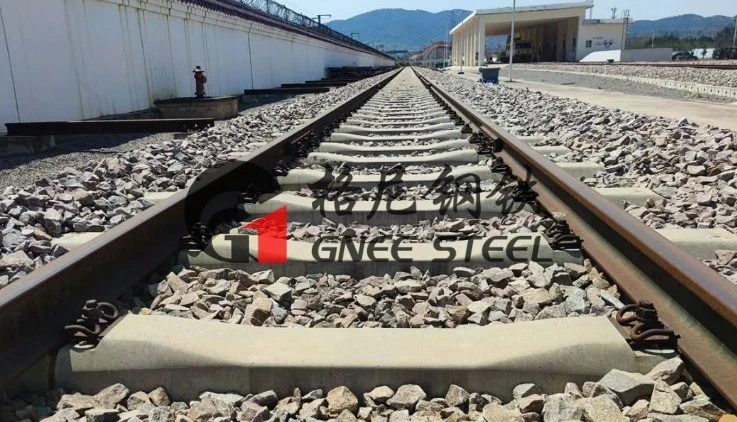

Railway E2001 Clip application
