Rail nabla CLIP Fastening System

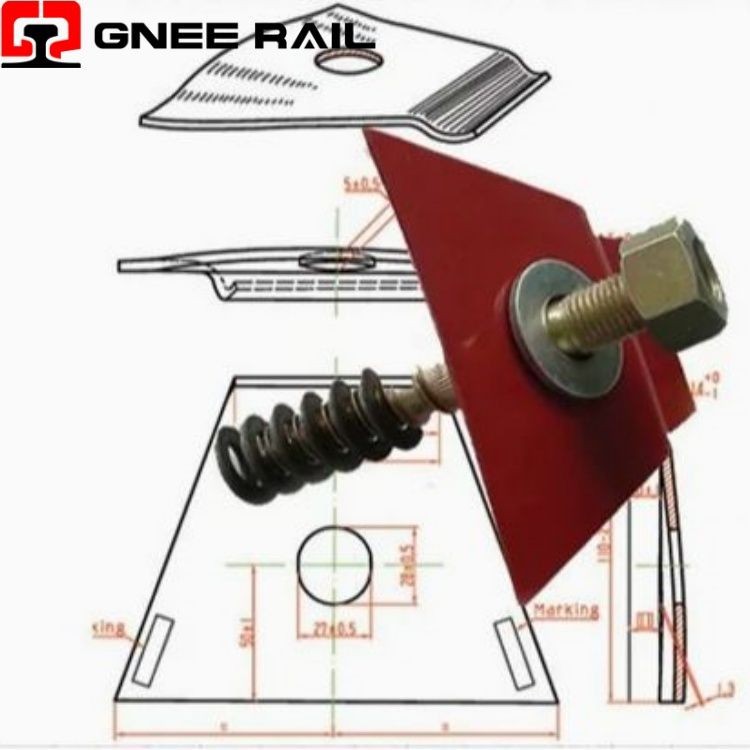

The Railway Nabla Clip derives its name from the Greek letter ∇ (nabla), reflecting its triangular geometry that creates a multi-directional restraint system. Unlike conventional clips that apply force primarily through vertical compression, the Nabla clip's unique shape generates simultaneous grip on the rail foot top, rail web side, and sleeper shoulder-effectively locking the rail in three planes while maintaining the elastic resilience required for modern high-performance track.
Technical Specifications:
| Challenge | Conventional Clip Response | Nabla Clip Response |
|---|---|---|
| Rail Roll | Relies on toe load only | Web contact prevents rotation |
| Gauge Widening | Lateral resistance from friction | Mechanical lock against shoulder |
| Fatigue Failure | Single stress path | Distributed across two legs |
| Installation Error | Requires skilled operator | Audible confirmation |
| Component Loss | Individual parts | Single-piece design |
| Profile Change | New clip required | New insulator only |
| Shoulder Wear | Reduced performance | Self-adjusting contact |
Installation & Maintenance Perspective:
- Driven by vertical hydraulic press acting on clip crown.
- Legs deflect inward during insertion, storing torsional energy.
- Springs snap outward upon full seating, locking against shoulders.
- Audible "click" confirms correct installation depth.
- Requires consistent shoulder geometry for force generation.
- Achieves full toe load immediately without settling period.
Maintenance & Operational Perspective
- Eliminates rail roll through web contact on both sides.
- Prevents clip rotation under asymmetric wheel loads.
- Maintains shoulder contact even during rail lift events.
- Resists fatigue through distributed stress across both legs.
- Provides redundancy-one leg retains partial force if other damaged.
- Prevents gauge widening through lateral web restraint.
