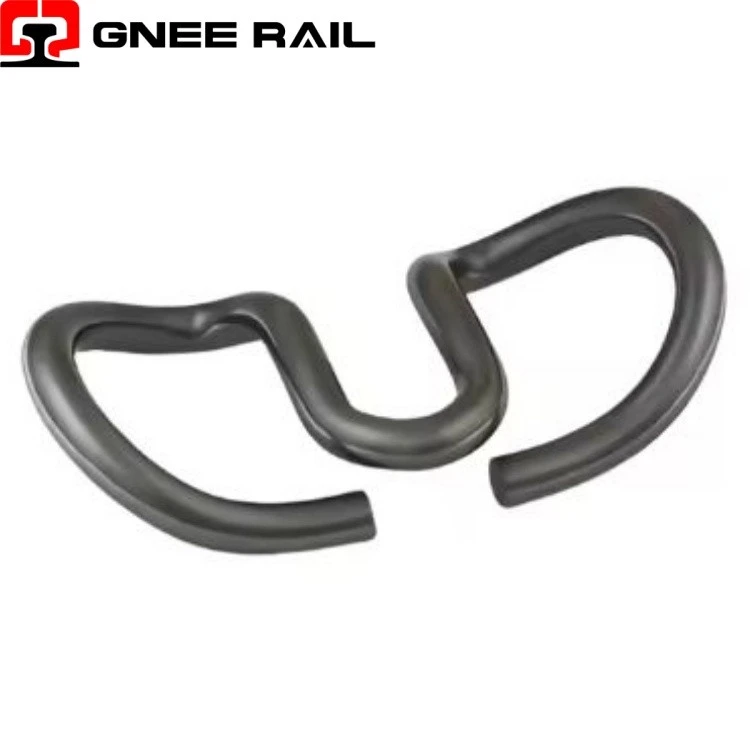

Carbon Steel SKL Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail skl Fastening System

A railway SKL clip is a tension-resistant omega-shaped spring steel fastener that operates through defined elastic deflection between a cast-in shoulder and a T-bolt or screw spike tension anchor - unique among all rail clips as the only design requiring pre-assembly in a non-tensioned "parked position" before on-site activation, the only clip where clamping force is set by torque-controlled threaded tension rather than geometric deflection

Technical Specifications:

Failure Mode / Trap	Affected Variant	Root Cause	Detection Difficulty	Consequence
Dowel thread creep	SKL15, SKL18	PA66 relaxation under load	Torque check reads normal; force low	Rail creep >3 mm/year; CWR buckling risk
Heel pocket spalling	All concrete sleeper	Freeze-thaw + water ingress	Pocket width gauge	Clip rotation; toe lift; leg fracture
T-bolt bending fatigue	SKL12	Non-perpendicular installation	Torque-angle monitoring only	Bolt head separation; clip ejection
38Si7 vs 60Si2CrA swap	SKL12/15 export	Mill certificate fraud	XRF identical; requires OES carbon	Europe: rapid wear; China: embrittlement
Thread form mismatch	SKL15 bolt/dowel	M22 vs 7/8"-9 UNC confusion	Thread pitch gauge mandatory	Cross-threading; 80% pull-out loss
Eccentric pin substitution	SKL12 adjustment	Non-Vossloh "compatible" supply	Visual: pin centered vs offset	Zero gauge adjustment capability

Performance Range:

Dowel Thread Creep (Invisible) - Plastic dowel threads relax under sustained tensile load. SKL15 installed at 200 Nm → after 5 years, residual clamp force 12–13 kN despite torque check showing 200 Nm. Reason: friction increased, tension did not. Diagnosis requires lift-off test (measure force when clip toe just separates from rail).

Heel Pocket Corrosion Widening - Water trapped in shoulder pockets (concrete sleepers). Freeze-thaw cycles spall pocket edges 0.2–0.5 mm/year. Heel support lost → clip rotates under load → toe lifts 0.3 mm/cycle → impact fretting → leg fracture at 2M cycles (certified 5M). Detection: pocket width > nominal +2 mm.

Maintenance & Operational Perspective

DIN 17221 vs GB/T 1222 Metallurgy - European SKL: 38Si7 (0.35–0.42% C), ductility-focused. Chinese SKL: 60Si2CrA (0.56–0.64% C), strength-focused. Not equivalent. 38Si7 in high-speed Chinese corridor → rapid toe wear (softer). 60Si2CrA in European tunnel → hydrogen embrittlement risk (higher hardness, Zn embrittlement susceptible).
M22 Thread Form Confusion - SKL15 specifies M22-6g bolt, M22-6H dowel. Metric coarse: 2.5 mm pitch. AREMA 7/8"‑9 UNC: 9 TPI (2.82 mm). Procurement error: ordering "M22" from North American supplier → receives 7/8"‑9 UNC (21.9 mm OD, 2.82 mm pitch). First 3 threads engage, then jams. Cross-threading guaranteed.
SKL12 Eccentric Pin Regional Monopoly - Lateral adjustment via eccentric taper pin is proprietary to Vossloh SKL12 Zw700 system. Identical-looking SKL12 from other manufacturers have concentric pin → no adjustment. Ordered as "SKL12 compatible" → delivered non-adjustable → site rejection 100%.
